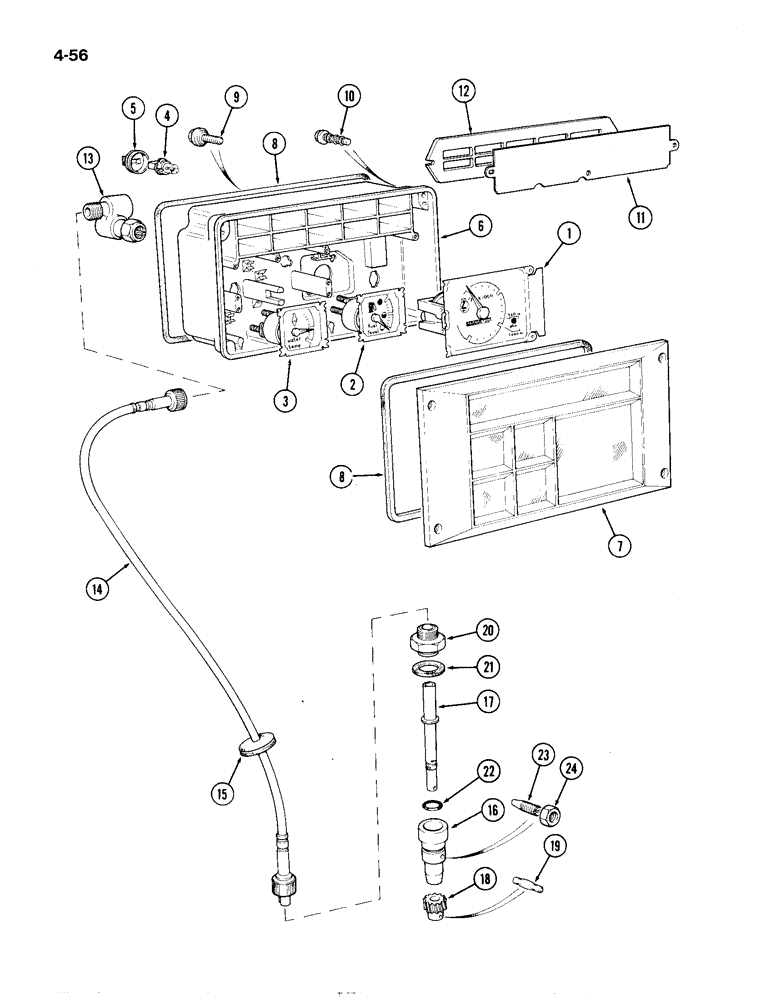

Запчасти Case IH 1194 (4-56) - INSTRUMENT CLUSTER AND ENGINE TACHOMETER (04) - ELECTRICAL SYSTEMS

K300269

CLUSTER

ASSEMBLY - instrument (AC-Delco) (Order K3091715), Includes: Ref. 1 - 12

1шт.

1

K965948

SPEEDOMETER

TACHOMETER - engine

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

K965949

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

K965961

LAMP

AND SOCKET - warning lamp

6шт.

4

K965960

LAMP

AND SOCKET - illumination lamp

3шт.

5

K965958

BOOT

COVER - plastic, illumination lamps

3шт.

6

K965951

PRINTED CIRCUIT BOAR

CASE AND PRINTED CIRCUIT, Includes: printed circuit

1шт.

K261634

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - CLUSTER

1шт.

7

K965945

BEZEL

COVER

1шт.

8

K965954

GASKET,4.45mm Thk x 249.68mm ID

1шт.

9

K965957

BOLT

SCREW AND BUSHING

2шт.

10

K965959

SCREW

12шт.

11

K262039

SCREEN

FILTER - warning lamps

1шт.

12

K262040

GASKET

- warning lamp, rubber

1шт.

K309715

CLUSTER

ASSEMBLY - instrument (iknield) (Not used on production), Includes: Ref. 1 - 12

1шт.

1

K262053

SPEEDOMETER

TACHOMETER - engine

1шт.

2

K262055

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

K262054

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

K262062

LAMP

AND SOCKET - warning lamp

6шт.

4

K262061

LAMP

AND SOCKET - illumination lamp

3шт.

6

K262051

CASE ASSY.

CASE, Includes: printed circuit

1шт.

K262056

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - cluster

1шт.

7

K262050

BEZEL

COVER

1шт.

8

K262059

GASKET,4.45mm Thk x 249.68mm ID

1шт.

9

K262060

SCREW

AND BUSHING

2шт.

10

K262063

SELF-TAP SCREW

12шт.

11

K262057

LAMP

FILTER - warning lamps

1шт.

12

K262058

GASKET

- warning lamp, rubber

1шт.

13

K201998

ADAPTER

ADAPTOR - tachometer drive

1шт.

14

K957485

CABLE

- inner and outer (without cab)

1шт.

14

K957487

CABLE

- inner and outer (with cab)

1шт.

15

K627769

GROMMET

- cable (with cab)

1шт.

16

K907181

HOUSING - drive spindle

1шт.

17

K908182

DRIVE

SPINDLE

1шт.

18

K908183

DRIVE

GEAR - driven, 13 teeth

1шт.

19

K623933

SPRING

PIN - spring, 1/8 x 5/8 inch

1шт.

20

K948532

ADAPTER

- 1/2 inch BSP - 22 mm

1шт.

21

K19502

WASHER

- fiber, 7/8 inch (22 mm)

1шт.

22

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch (19 mm) internal diameter

1шт.

23

K928265

SCREW,5/16" - 18 x 1-1/16"

- 5/16 inch UNC, special

1шт.

24

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC

1шт.
