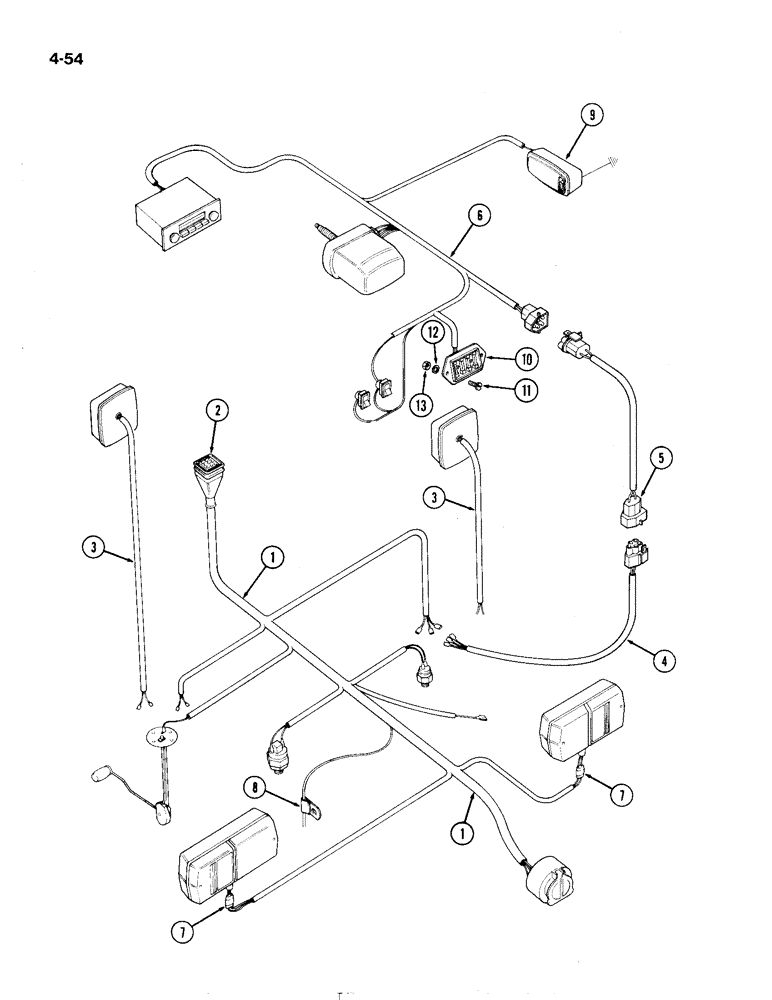

Запчасти Case IH 1194 (4-54) - ELECTRICAL WIRING, CAB (04) - ELECTRICAL SYSTEMS

1

K311531

HARNESS

- cab wiring (Replaces K307249), Includes: Ref. 2

1шт.

2

K951338

BELLOWS

COVER - harness connector

1шт.

3

K303971

HARNESS

- side/flasher lamp, short bracket

2шт.

3

K308011

HARNESS

- side/flasher lamp, long bracket

2шт.

4

K307418

HARNESS

- lower, right-hand post

1шт.

5

K307419

HARNESS

- upper, right-hand post

1шт.

6

K311489

HARNESS

- cab roof (Replaces K307441)

1шт.

7

K86230

CONNECTOR, ELEC

CONNECTOR - double

6шт.

8

K621665

CLIP

- lead to PTO housing

2шт.

9

K303720

INTERIOR LIGHT

LAMP - interior, Includes: bulb

1шт.

K913579

BULB

- (North America Only)

1шт.

10

K204610

BOX, FUSE

BOX - fuse, See Figure 4-58

1шт.

11

K652503

SCREW

- M5 x 12 mm

2шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

13

K651525

NUT

- M5

2шт.
