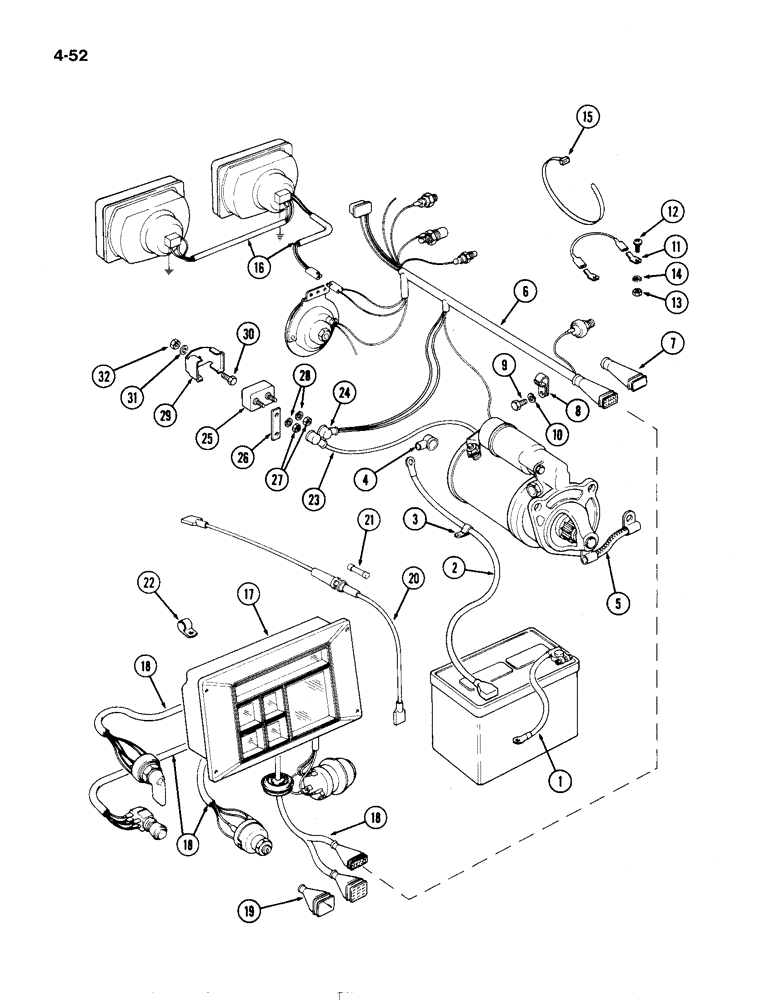

Запчасти Case IH 1194 (4-52) - ELECTRICAL WIRING, CHASSIS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K917372

CABLE

-, Serial Range: battery-ground

1шт.

2

K949996

CABLE

-, Serial Range: battery-starter

1шт.

3

K15518

CLAMP

CLIP -, Serial Range: cable-engine

1шт.

4

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K307489

HARNESS

- engine auxiliaries, Includes: Ref. 7

1шт.

7

K951339

GUARD

COVER - harness connector

1шт.

8

K657010

CLIP

- nylon, Serial Range: harness-engine

1шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - 1/4 UNC x 1/2 inch

1шт.

10

K19470

WASHER

- 1/4 inch

1шт.

11

K925268

BLADE

CONNECTOR - ground lead

2шт.

12

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- No. 10 UNF x 1/2 inch

1шт.

13

K617080

NUT

- No. 10 UNF

1шт.

14

K11519

WASHER

- lock, 3/16 inch

1шт.

15

K621734

CABLE

TIE - cable

3шт.

16

K304927

HARNESS

- inboard headlamps

1шт.

16

K300750

HARNESS

- outboard headlamps

1шт.

17

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-56

1шт.

18

K307294

HARNESS

- instrument panel, Includes: Ref. 19

1шт.

19

K951338

BELLOWS

COVER - harness connector

1шт.

20

K304217

FUSE

HOLDER, Includes: Ref. 21

1шт.

21

K304216

FUSE

- 50 ampere

1шт.

22

K621600

CLIP

- panel harness

1шт.

23

K304806

ELECTRICAL WIRE

LEAD - starter to circuit breaker

1шт.

24

K304902

TERMINAL CONNECTOR

COVER - terminals

1шт.

25

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER - 30 ampere

1шт.

26

K307473

PLATE

- circuit breaker

1шт.

27

K617080

NUT

- No. 10 UNF

4шт.

28

K626340

RING

WASHER - lock, 3/16 inch

4шт.

29

K304457

CLIP

- circuit breaker mounting

1шт.

30

K652463

SCREW

- M5 x 12 mm

1шт.

31

K651846

WASHER, LOCK

WASHER - lock, 5 mm

1шт.

32

K651525

NUT

- M5

1шт.
