Запчасти Case IH 1194 (4-50) - ELECTRICAL WIRING - TRACTORS WITHOUT CAB, LOW PROFILE SPECIAL (04) - ELECTRICAL SYSTEMS

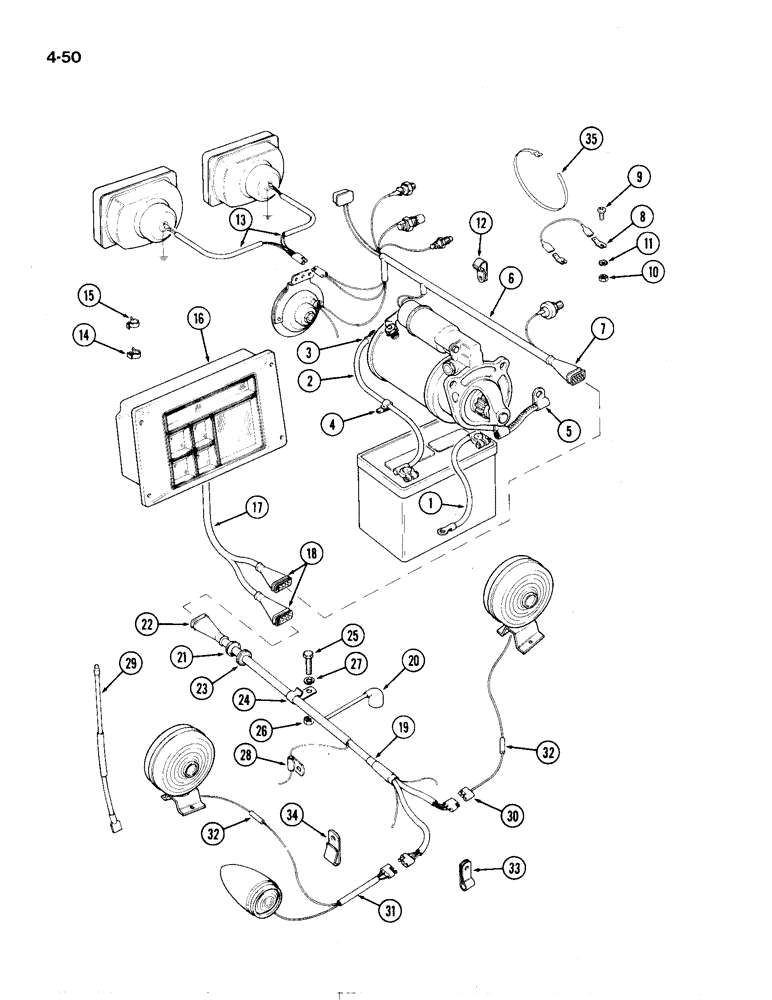

Схема запчастей Case IH 1194 - (4-50) - ELECTRICAL WIRING - TRACTORS WITHOUT CAB, LOW PROFILE SPECIAL (04) - ELECTRICAL SYSTEMS
33
6
10
28
19
30
21
15
34
7
1
35
22
20
18
12
23
25
16
5
4
11
14
32
31
27
26
32
3
9
8
13
29
17
2
24

Артикул

Название

Примечание

Количество

1

K917372

CABLE

-, Serial Range: battery-ground

1шт.

2

K949996

CABLE

-, Serial Range: battery-starter

1шт.

3

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

4

K15518

CLAMP

CLIP - cable to engine, Serial Range: starter-ground

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K307719

HARNESS

ASSEMBLY - engine auxiliaries (with power steering), Includes: Ref. 7

1шт.

7

K951339

GUARD

COVER - harness connector

1шт.

8

K925268

BLADE

- connector, 25 ampere

1шт.

9

K624532

SCREW

- No. 10 x 1/2 inch

1шт.

10

K617080

NUT

- No. 10

1шт.

11

K11519

WASHER

- lock, 3/16 inch

1шт.

12

K657010

CLIP

- nylon, harness

1шт.

13

K304928

HARNESS

- sealed beam headlamps

1шт.

14

K625018

CLIP

- harness

2шт.

15

K625019

CLIP

- harness

2шт.

16

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-56

1шт.

17

K307696

HARNESS

ASSEMBLY - instrument panel, Includes: Ref. 18

1шт.

18

K951338

BELLOWS

COVER - harness connector

2шт.

19

K307708

HARNESS

ASSEMBLY - side and rear lamps, Includes: Ref. 20 - 23

1шт.

20

K943744

COVER

- stop lamp switch

1шт.

21

K653160

GROMMET

- harness

1шт.

22

K951339

GUARD

COVER - harness connector

1шт.

23

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- harness

1шт.

24

K621741

CLIP

- harness

2шт.

25

K652475

SCREW

- M5 x 16 mm

2шт.

26

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

27

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

28

K621665

CLIP

- switch lead to PTO housing

2шт.

29

K952506

DIODE

LEAD - with diode

1шт.

30

K308554

HARNESS

- flasher, right-hand

1шт.

31

K308553

HARNESS

- flasher, left-hand

1шт.

32

K67916

ELEC CONNECTOR

CONNECTOR - single

2шт.

33

K621638

CLIP

- harness, 1/2 inch (13 mm)

4шт.

34

K207988

CLIP

-, Serial Range: harness-fenders

2шт.

35

K621734

CABLE

TIE - cables

3шт.

Выбрано товаров: 35
