Запчасти Case IH 1194 (3-44) - FUEL TANKS, TRACTORS WITH CAB (03) - FUEL SYSTEM

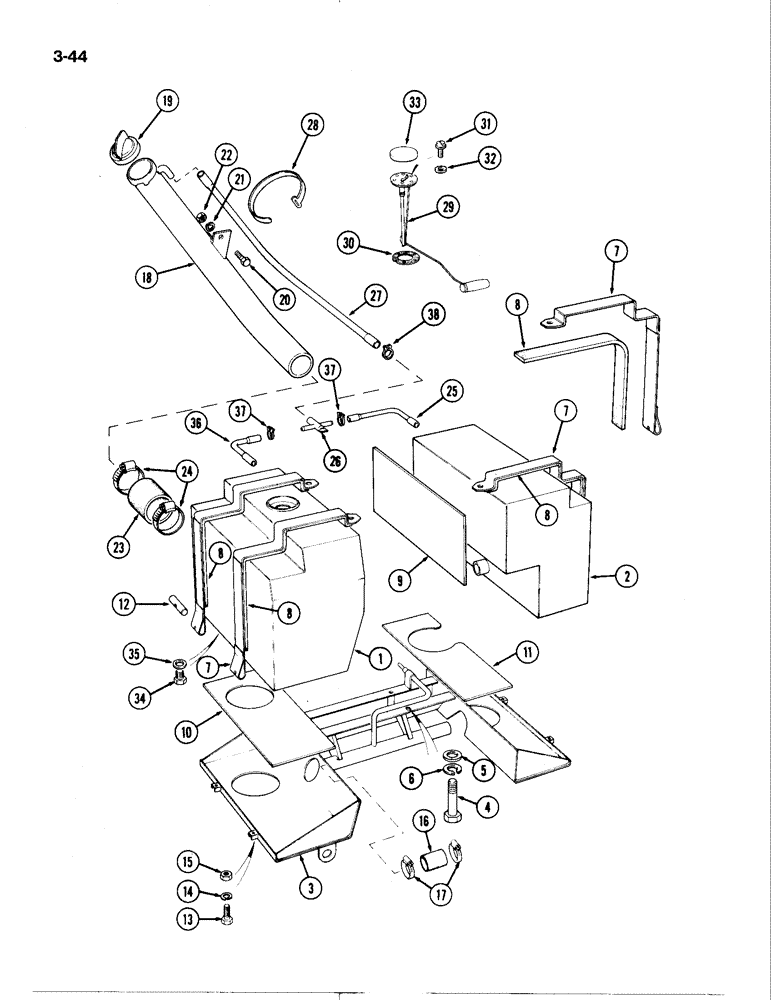

Схема запчастей Case IH 1194 - (3-44) - FUEL TANKS, TRACTORS WITH CAB (03) - FUEL SYSTEM
10
17
12
16
36
22
7
33
19
6
9
28
3
29
30
35
8
15
5
4
8
31
34
26
23
13
18
7
32
14
8
38
37
11
25
27
8
37
20
21
1
24
2
7

Артикул

Название

Примечание

Количество

1

K207875

TANK

- fuel, left-hand

1шт.

2

K207883

FUEL TANK

TANK - fuel, right-hand

1шт.

3

K207582

TANK

BRACKET - tank support

1шт.

4

K603104

SCREW

BOLT - 1/2 UNC x 1 inch

2шт.

4

K600820

BOLT

- 1/2 UNC x 4-1/2 inch

2шт.

5

K19474

HARDWARE

WASHER - 1/2 inch (13 mm)

2шт.

6

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

7

K202767

BRACKET

STRAP - fuel tank

4шт.

8

K953479

TAPE

STRIP - tank strap, 40 x 5 mm (order in metres)

1шт.

9

K957390

PACKING

PAD - rubber, tank side

2шт.

10

K202713

MAT

PAD - rubber, left tank

1шт.

11

K202714

MAT

PAD - rubber, right tank

1шт.

12

K951539

TRUNNION

PIN - tank strap

4шт.

13

K602709

SCREW

- 1/4 UNC x 1-1/2 inch

4шт.

14

K626660

WASHER

- 1/4 inch (6 mm)

4шт.

15

K607300

NUT

- lock, 1/4 UNC

4шт.

16

K304000

HOSE,34.00 mm ID, 35.00 mm ID x 100.00 mm, SAE J14 Class SB

- Balance 34.00 mm ID, 35.00 mm ID x 100.00 mm, SAE J14 Class SB

2шт.

17

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, (38 mm) (Replaces K622028) #24, 1.06/2.00 Type F Worm

4шт.

18

K207874

FITTING

TUBE - filler

1шт.

19

K304590

CAP

- fuel filler

1шт.

20

K602849

SCREW

- 5/16 UNC x 7/8 inch

1шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch

1шт.

23

K206936

FUEL HOSE,2.25" ID x 3.50"

Filler Tube

1шт.

24

K622032

CLAMP

CLIP - hose, 2-3/4 inch (70 mm)

2шт.

25

K308427

BREATHER

TUBE - breather, right-hand tank

1шт.

26

K307871

FITTING

- tee, breather tube

1шт.

27

K308428

BREATHER,540 mm L

TUBE - filler breather

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

cut to length (replaces K628387)

1шт.

29

K309297

TRANSMITTER

TANK UNIT - fuel gauge

1шт.

30

K946159

GASKET

- tank unit

1шт.

31

K614965

SCREW

- No. 10 UNF x 5/8 inch

5шт.

32

K627479

WASHER

- sealing, 3/16 inch (5 mm)

5шт.

33

K304807

COVER

- tank unit

1шт.

34

K19591

PLUG

- 1/8 BSP, fuel drain

2шт.

35

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- sealing, 3/8 inch (10 mm)

2шт.

36

K308426

CONNECTOR, ELEC

TUBE - breather, left-hand tank

1шт.

37

K656901

CLIP

- breather tube, 9 mm

4шт.

38

K656905

CLIP

- breather tube, 14 mm

2шт.

Выбрано товаров: 39
