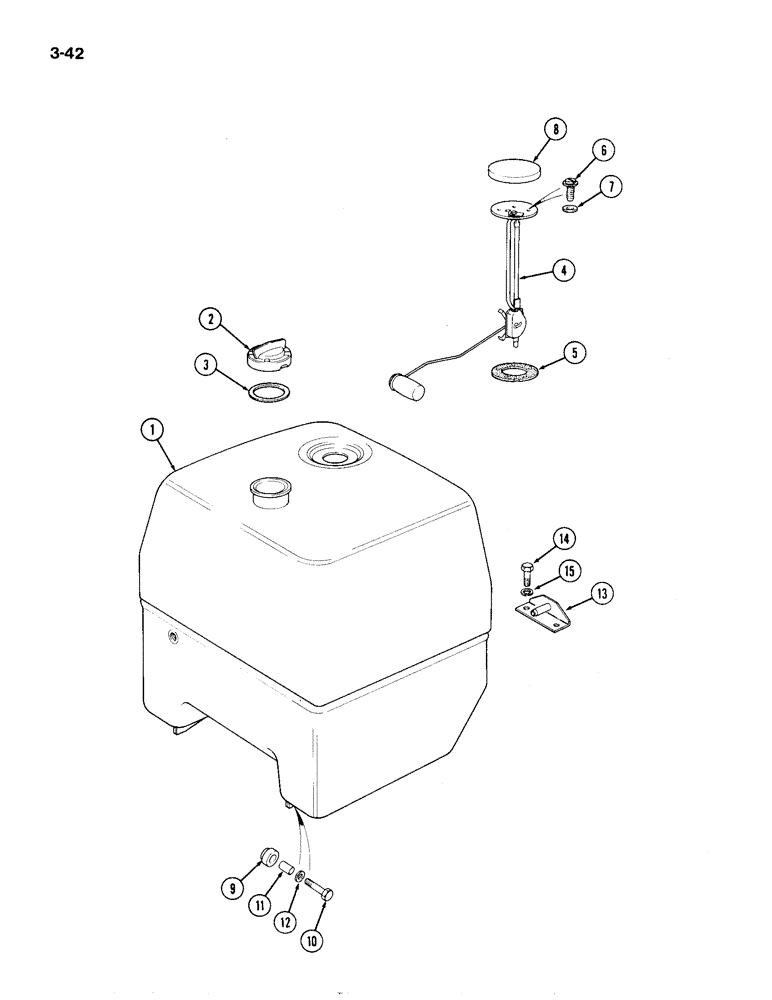

Запчасти Case IH 1194 (3-42) - FUEL TANK, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

1

K310545

TANK

- fuel (Replaces K306170)

1шт.

2

K304590

CAP

- filler

1шт.

3

K261911

RING

SEAL - filler cap

1шт.

4

K309297

TRANSMITTER

TANK UNIT - fuel gauge

1шт.

5

K946159

GASKET

-, Serial Range: unit-tank

1шт.

6

K614965

SCREW

- No. 10 UNF x 5/8 inch

5шт.

7

K627479

WASHER

- fiber, 3/16 inch (5 mm)

5шт.

8

K304807

COVER

DISC - plastic, 3-3/8 inch (86 mm)

1шт.

9

K200826

BUSHING,12.7mm ID x 20mm OD x 20.64mm L

- plastic

3шт.

10

K600561

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

11

K627323

SPACER

2шт.

12

K19472

WASHER

- 3/8 inch (10 mm)

2шт.

13

K200825

SUPPORT

BRACKET

1шт.

14

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

2шт.

15

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

This tractor was not fitted with a drain valve. Some do have drain plugs, 1/8" BSP or 1/4" BSP. Doncaster advised of possible fix using K210098 Shut-off. 01/09/96

1шт.
