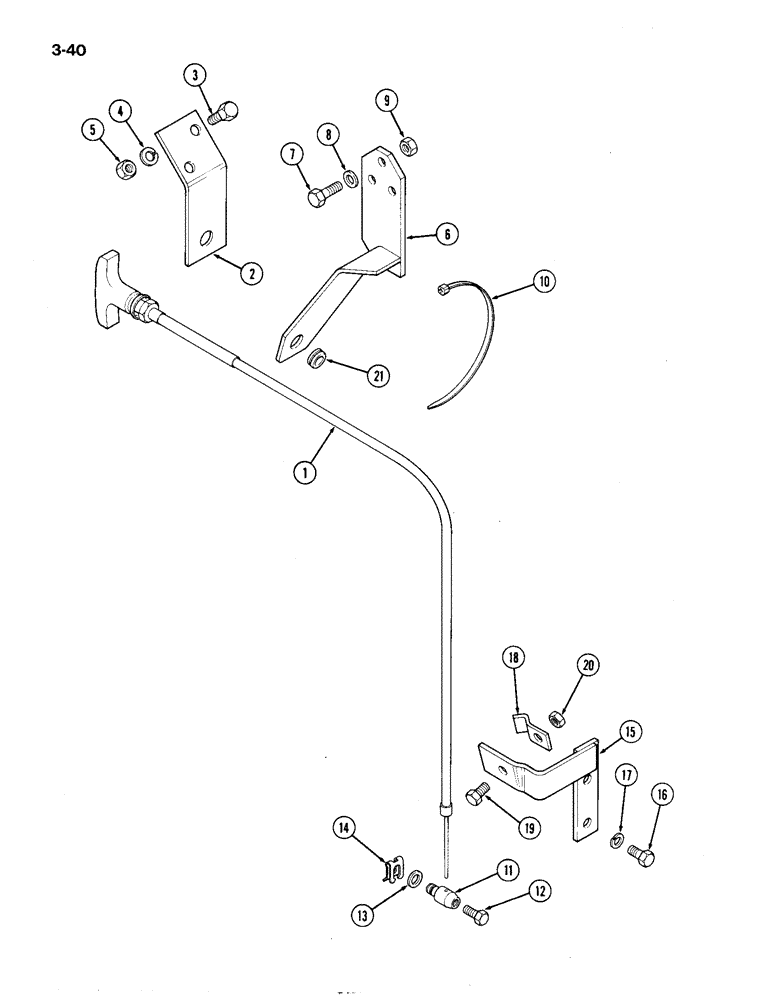

Запчасти Case IH 1194 (3-40) - ENGINE STOP CONTROL (03) - FUEL SYSTEM

1

K309522

CABLE

- stop control, inner and outer (without cab)

1шт.

1

K309525

CABLE

- stop control, inner and outer (with cab)

1шт.

2

K304527

BRACKET

- rear (without cab)

1шт.

3

K612703

SCREW

BOLT - 1/4 UNF x 3/4 inch

2шт.

4

K19480

SPRING WASHER

- lock, 1/4 inch

2шт.

5

K617000

NUT

- 1/4 inch UNF

2шт.

6

K304467

BRACKET

- rear (with cab)

1шт.

7

K612733

SCREW

- 1/4 UNF x 3/4 inch

3шт.

8

K626341

SPRING WASHER

WASHER - 1/4 inch ( 6 mm)

3шт.

9

K616980

NUT

- 1/4 inch UNF

3шт.

10

K621734

CABLE

TIE - cable

1шт.

11

K205990

TRUNNION

PIN - trunnion

1шт.

12

178-15

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW - No. 10 UNC x 3/8 inch

1шт.

13

K19470

WASHER

- 1/4 inch (6 mm)

1шт.

14

K625039

CLIP

- retaining

1шт.

15

K304437

MOUNTING PARTS

BRACKET - injection pump

1шт.

16

K612701

SCREW

BOLT - 1/4 UNF x 1/2 inch

1шт.

17

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

18

K657014

CABLE

CLAMP - cable

1шт.

19

K602701

BOLT

- 1/4 UNC x 1/2 inch

1шт.

20

K607300

NUT

- 1/4 inch UNC

1шт.

21

K627723

GROMMET

- bracket (with cab)

1шт.

22

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- to cab

1шт.
