Запчасти Case IH 1194 (3-38) - ENGINE SPEED FOOT CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM

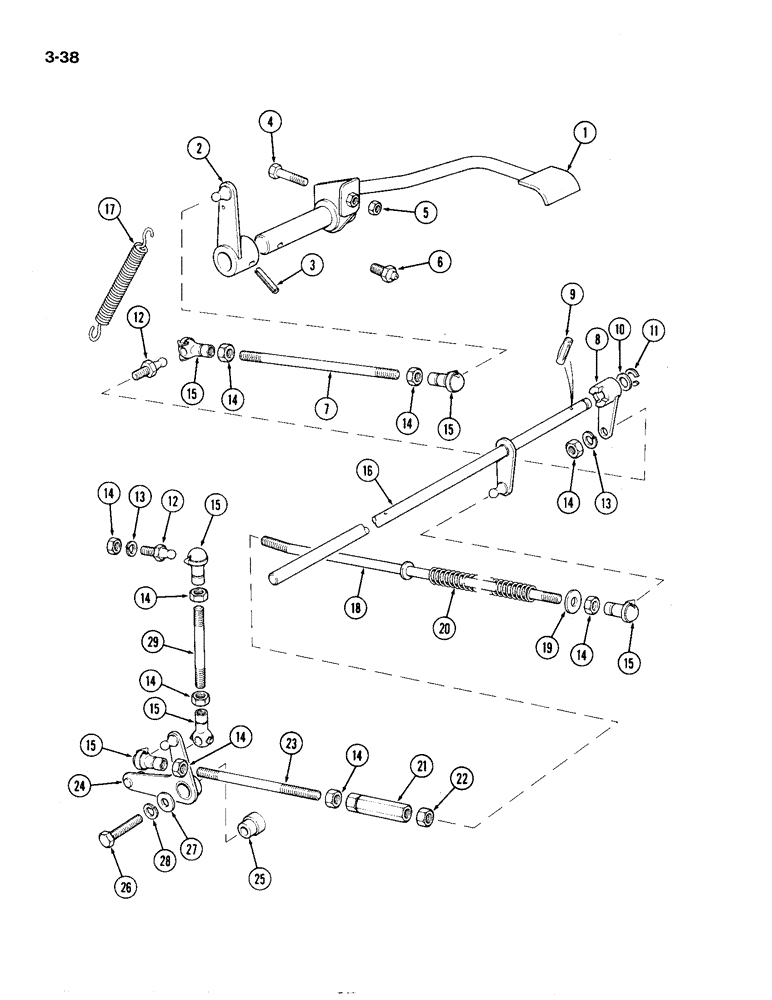

Схема запчастей Case IH 1194 - (3-38) - ENGINE SPEED FOOT CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM
8
13
14
25
21
14
1
15
18
11
14
17
15
5
19
14
14
15
4
6
24
13
20
12
14
23
12
28
14
15
27
26
15
14
10
22
9
14
15
3
29
7
2
16

Артикул

Название

Примечание

Количество

1

K308625

PEDAL

- accelerator

1шт.

2

K307476

LEVER

- pedal

1шт.

3

K14464

PIN

- roll, 1/4 x 1-1/8 inch

1шт.

4

K652480

SCREW

BOLT - M6 x 40 mm

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

7

K202788

ROD

- pedal to cross shaft

1шт.

8

K928178

LEVER

- cross shaft

1шт.

9

K623747

SPLIT PIN/SAFETY PIN

PIN - 5/32 x 3/4 inch

1шт.

10

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

11

K621587

RING, SNAP

RING - snap, 3/8 inch (10 mm) external

1шт.

12

K621904

BALL JOINT

BALL END - 1/4 inch UNF

2шт.

13

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

14

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4 inch UNF

6шт.

15

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

6шт.

16

K207312

SHAFT

- cross

1шт.

17

K624914

SPRING

- pedal

1шт.

18

K203010

ROD

- cross, Serial Range: shaft-sleeve

1шт.

19

K626661

WASHER

- special, 1/4 inch (6 mm)

1шт.

20

K625260

SPRING

- rod

1шт.

21

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

22

K617593

NUT

- left-hand thread, 1/4 inch UNF

1шт.

23

K207684

ROD

- adjusting sleeve to bellcrank lever

1шт.

24

K202991

LEVER

- bellcrank

1шт.

25

K304804

COLLAR

BUSHING - lever pivot

1шт.

26

K612702

SCREW

BOLT - 1/4 UNF x 1-1/8 inch

1шт.

27

K19470

WASHER

- 1/4 inch (6 mm)

1шт.

28

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

29

K202337

ROD

- lever to injection pump

1шт.

Выбрано товаров: 29
