Запчасти Case IH 1194 (3-36) - ENGINE SPEED HAND CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM

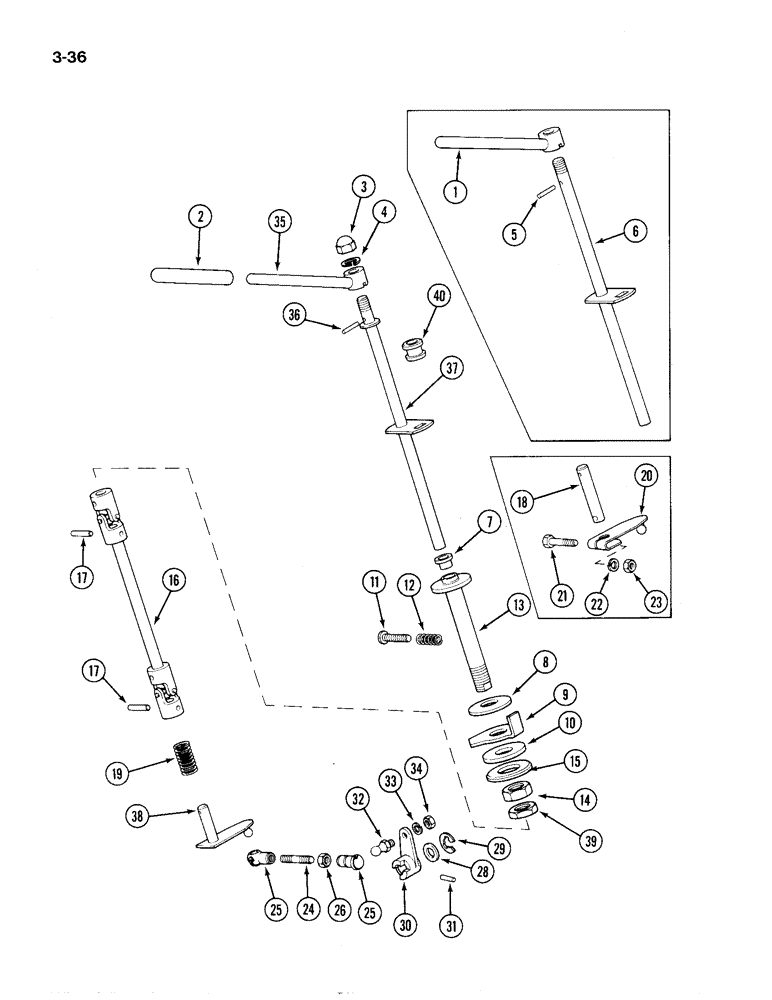

Схема запчастей Case IH 1194 - (3-36) - ENGINE SPEED HAND CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM
5
32
25
9
36
39
2
3
30
21
33
14
6
10
1
13
18
38
11
28
25
23
24
26
4
20
17
8
40
17
19
7
16
12
37
29
31
34
22
35
15

Артикул

Название

Примечание

Количество

1

K204710

LEVER ASSY.

LEVER - hand (Prior to P.I.N. 11040751)

1шт.

2

K307675

SLEEVE

- hand lever

1шт.

3

K659326

NUT

- domed, M10

1шт.

4

K651849

WASHER

- lock, 10 mm

1шт.

5

K16570

PIN

- 1/8 x 3/4 inch (Prior to P.I.N. 11040751)

1шт.

6

K307413

ROD

- hand lever (Prior to P.I.N. 11040751)

1шт.

7

K307448

GUIDE

BUSHING - plastic, 10 mm

1шт.

8

K626740

WASHER

- Belleville

10шт.

9

K204709

SHIM

PLATE - adjusting

1шт.

10

K204708

DISC

- friction

1шт.

11

K605613

SCREW

- lever stop, 1/4 UNC x 1-5/8 inch

1шт.

12

K625232

SPRING

- stop screw

1шт.

13

K307446

TUBE

1шт.

14

K651556

NUT

- M16, thick

2шт.

15

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

16

K310083

SHAFT ASSY.

ROD - with universal joints (Replaces K307407)

1шт.

17

K657420

ROLL PIN

PIN - roll, 4 x 20 mm

2шт.

18

K307406

ROD

- lower

1шт.

19

K24887

SPRING

- rod

1шт.

20

K307409

LEVER

1шт.

21

K650631

BOLT

- M6 x 35 mm

1шт.

22

K651847

WASHER, LOCK

WASHER - lock, 6 mm

1шт.

23

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

24

K210141

ROD

- lever to cross shaft lever

1шт.

25

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

2шт.

26

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4 inch UNF

2шт.

28

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

29

K621587

RING, SNAP

RING - snap, 3/8 inch (10 mm) external

1шт.

30

K928178

LEVER

- cross shaft

1шт.

31

K623747

SPLIT PIN/SAFETY PIN

PIN - 5/32 x 3/4 inch

1шт.

32

K621904

BALL JOINT

BALL END - 1/4 inch UNF

1шт.

33

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4 inch UNF

1шт.

35

K310035

BRACKET

LEVER - hand (P.I.N. 11040751 and after)

1шт.

36

K623747

SPLIT PIN/SAFETY PIN

PIN - hand lever, 5/32 x 3/4 inch (P.I.N. 11040751 and after)

1шт.

37

K310039

ROD

- hand lever (P.I.N. 11040751 and after)

1шт.

38

K311383

BRACKET

LEVER ROD AND ROD ASSEMBLY (Replaces K307409 and K307406)

1шт.

39

K651530

NUT

- M16, thin

1шт.

40

K627767

GROMMET

- instrument panel

1шт.

Выбрано товаров: 39
