Запчасти Case IH 1194 (3-34) - ENGINE SPEED FOOT CONTROL, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

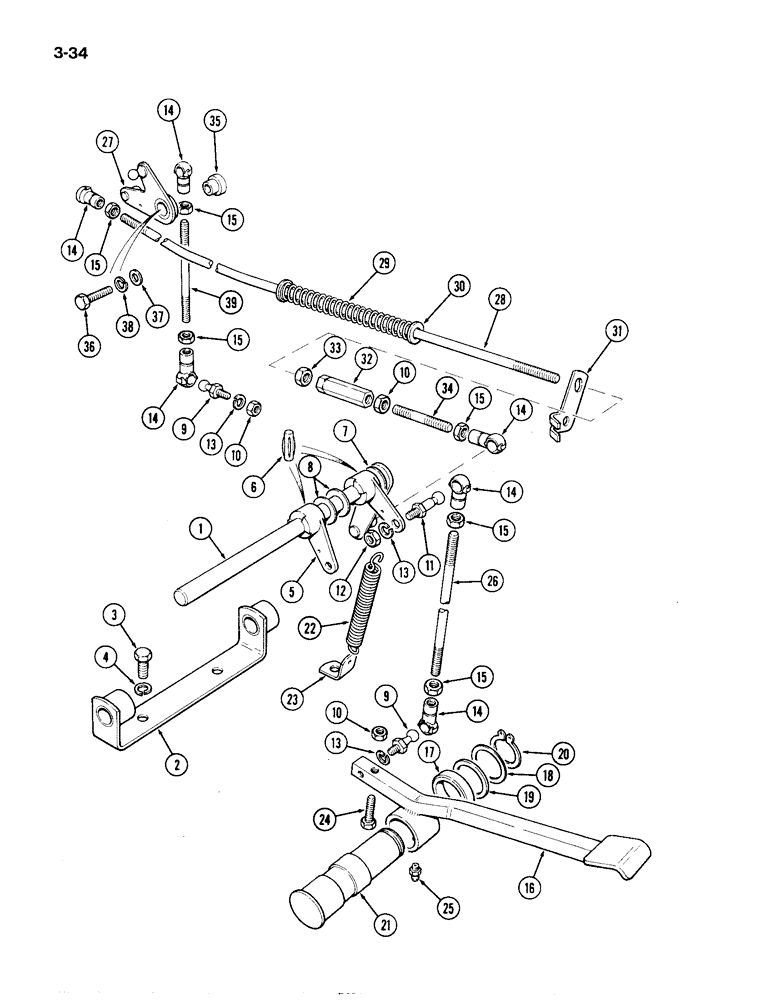

Схема запчастей Case IH 1194 - (3-34) - ENGINE SPEED FOOT CONTROL, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM
12
10
23
13
6
3
2
19
15
36
17
11
14
30
18
14
32
9
21
31
10
7
13
20
25
15
33
1
8
37
26
15
16
29
35
39
14
38
27
13
5
14
24
34
15
4
14
15
28
10
15
14
22
9

Артикул

Название

Примечание

Количество

1

K201895

SHAFT

- cross

1шт.

2

K201885

SHAFT

BRACKET - cross shaft support

1шт.

3

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

2шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

5

K928178

LEVER

- cross shaft

2шт.

6

K623747

SPLIT PIN/SAFETY PIN

PIN - 5/32 x 3/4 inch

2шт.

7

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

8

K626267

SHIM,.030" Thk

(3/4" OD) (19mm Thk x 0.76mm OD) .030" Thk

2шт.

9

K621904

BALL JOINT

BALL END - 1/4 inch UNF

2шт.

10

K616980

NUT

- 1/4 inch UNF

4шт.

11

K621904

BALL JOINT

BALL END - 1/4 inch UNF

1шт.

12

K616980

NUT

- 1/4 inch UNF

1шт.

13

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

5шт.

14

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

6шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

6шт.

16

K202010

PEDAL

1шт.

17

K201246

BUSHING

SPACER - 3/8 x 1-1/2 inch (10 x 38 mm)

1шт.

18

K627466

WASHER

- special, 1 inch (25 mm)

1шт.

19

K626200

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

20

K11128

CIRCLIP

RING - retaining, 1 inch (25 mm) external diameter

1шт.

21

K206242

PIVOT

PIN - pivot, pedal

1шт.

22

K624914

SPRING

- pedal return

1шт.

23

K202019

SPRING

BRACKET - return spring anchor

1шт.

24

K612709

SCREW

BOLT - 1/4 UNF x 1-1/2 inch, pedal stop

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

26

K201946

ROD

- cross, Serial Range: shaft-lever

1шт.

27

K202991

LEVER

- bellcrank

1шт.

28

K201892

ROD

- adjusting sleeve to bellcrank lever

1шт.

29

K625260

SPRING

- rod

1шт.

30

K19471

WASHER

- 5/16 inch (8 mm)

1шт.

31

K201889

GUIDE

BRACKET

1шт.

32

K949065

SLEEVE

- adjusting

1шт.

33

K617593

NUT

- 1/4 inch UNF, left-hand thread

1шт.

34

K202337

ROD

- adjusting sleeve to cross shaft lever

1шт.

35

K304804

COLLAR

BUSHING - lever pivot

1шт.

36

K612706

SCREW

BOLT - 1/4 UNF x 1-1/8

1шт.

37

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

38

K626341

SPRING WASHER

WSHER - lock, 1/4 inch

1шт.

39

K202337

ROD

- 1/4 inch UNF, Serial Range: lever-pump

1шт.

Выбрано товаров: 39
