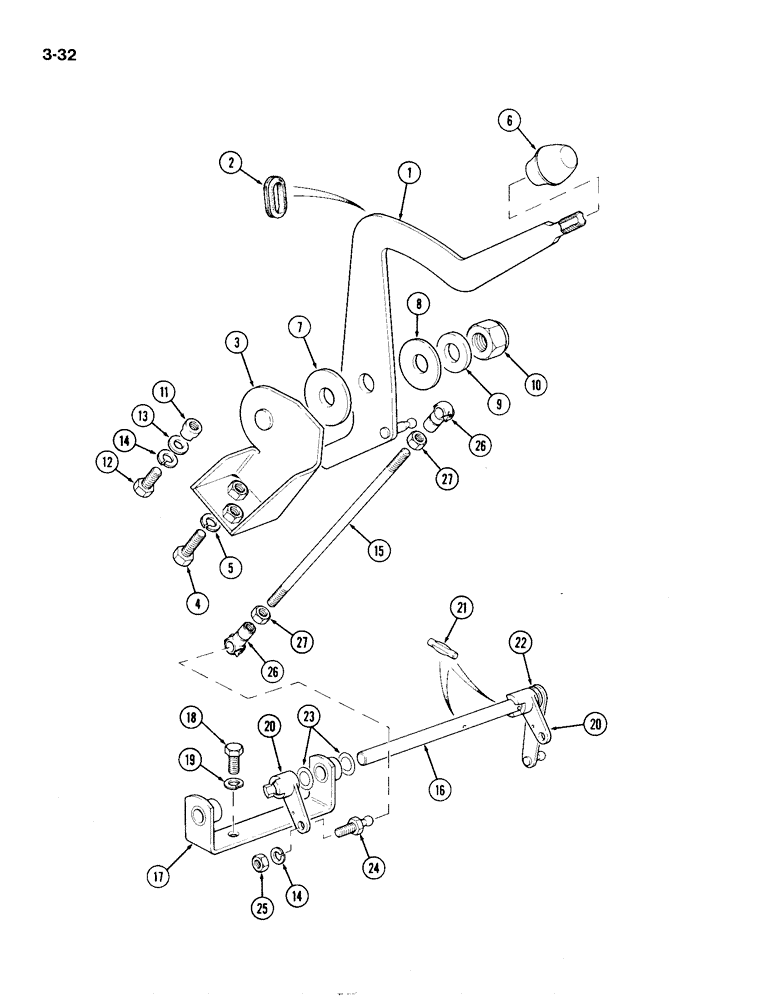

Запчасти Case IH 1194 (3-32) - ENGINE SPEED HAND CONTROL, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

1

K201285

LEVER

- hand

1шт.

2

K627761

GROMMET

- instrument panel

1шт.

3

K300223

SUPPORT

BRACKET - hand lever

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

5

K651848

WASHER

- lock, 8 mm

2шт.

6

K207512

KNOB

- hand lever

1шт.

7

K950724

DISC

- friction

1шт.

8

K626740

WASHER

- belleville, 5/8 inch (16 mm)

1шт.

9

K19475

WASHER

- 5/8 inch (8 mm)

1шт.

10

131-377

LOCK NUT,5/8"-11, GC

NUT - self-locking, 5/8 UNF

1шт.

11

K943634

NUT

- special, hand lever stop, 1/4 inch UNC x 1/2 inch

2шт.

12

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - hand lever stop, 1/4 inch UNC x 1/2 inch

2шт.

13

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

14

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

3шт.

15

K204737

ROD

1шт.

16

K201895

SHAFT

- cross

1шт.

17

K201885

SHAFT

BRACKET - cross shaft

1шт.

18

K602842

SCREW

BOLT - 5/16 UNC x 3/4 inch

2шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

20

K928178

LEVER

- cross shaft

2шт.

21

K623747

SPLIT PIN/SAFETY PIN

PIN - 5/32 x 3/4 inch

2шт.

22

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

23

K626267

SHIM,.030" Thk

(3/4" OD) (19mm Thk x 0.76mm OD) .030" Thk

2шт.

24

K621904

BALL JOINT

BALL END - 1/4 inch UNF

1шт.

25

K616980

NUT

- 1/4 inch UNF

1шт.

26

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

2шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

2шт.
