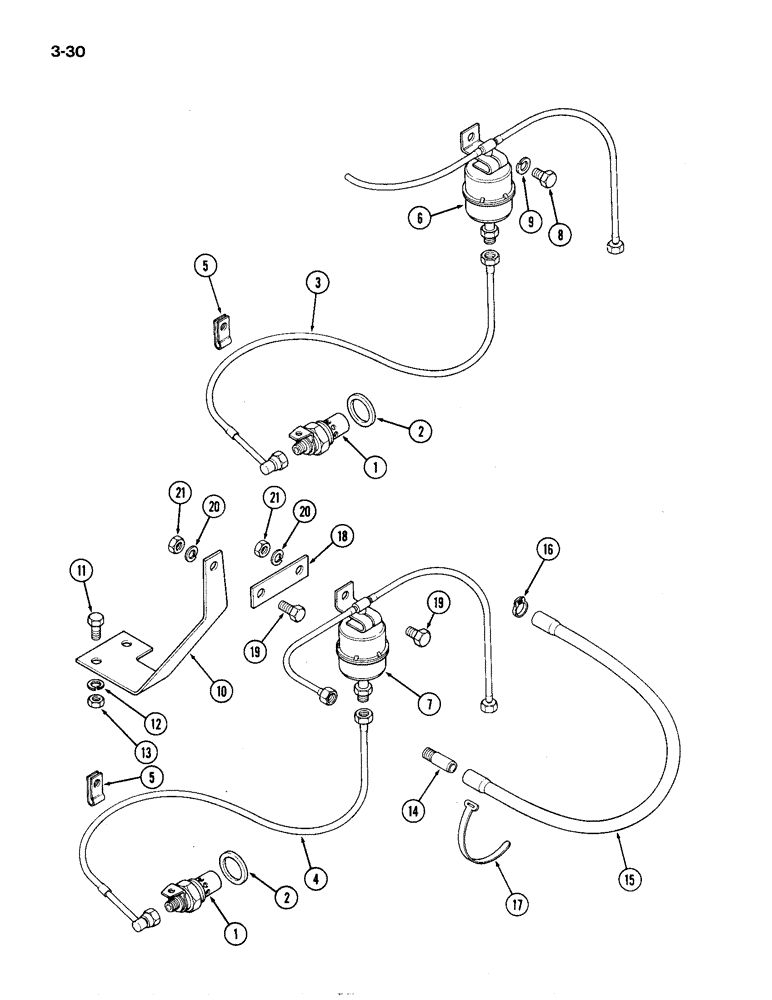

Запчасти Case IH 1194 (3-30) - THERMOSTART, RESERVOIR AND TUBES (03) - FUEL SYSTEM

1

K928523

GLOW PLUG

THERMOSTART - engine

1шт.

2

K626957

WASHER

- sealing

1шт.

3

K205366

PIPE,0.187" OD x 25.5" L

TUBE - reservoir to Thermostart (without cab)

1шт.

4

K205363

PIPE

TUBE - reservoir to Thermostart (with cab)

1шт.

5

K621681

CLIP

- fuel tube

1шт.

6

K205392

RESERVOIR

ASSEMBLY - Thermostart (without cab)

1шт.

7

K205394

THERMOSTART

RESERVOIR ASSEMBLY - Thermostart (with cab)

1шт.

8

K650639

SCREW

BOLT - M8 x 12 mm

1шт.

9

K651828

SPRING

WASHER - lock, 8 mm

1шт.

10

K307994

BRACKET

- reservoir (with cab)

1шт.

11

K650641

SCREW

BOLT - M8 x 16 mm

2шт.

12

K651848

WASHER

- lock, 8 mm

2шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

14

K306934

FITTING

RESTRICTOR - return line (with cab)

1шт.

15

K207549

PIPE,0.395" OD x 40" L

TUBE - fuel return (with cab)

1шт.

16

K656903

CLIP

- return tube

1шт.

17

K621672

HOSE CLAMP

TIE - tube

1шт.

18

K308223

PLATE

- reservoir support (with cab)

1шт.

19

K612802

SCREW

BOLT - 5/16 UNF x 5/8 inch

2шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

21

K617001

NUT

- 5/16 inch UNF

2шт.
