Запчасти Case IH 1194 (3-28) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM

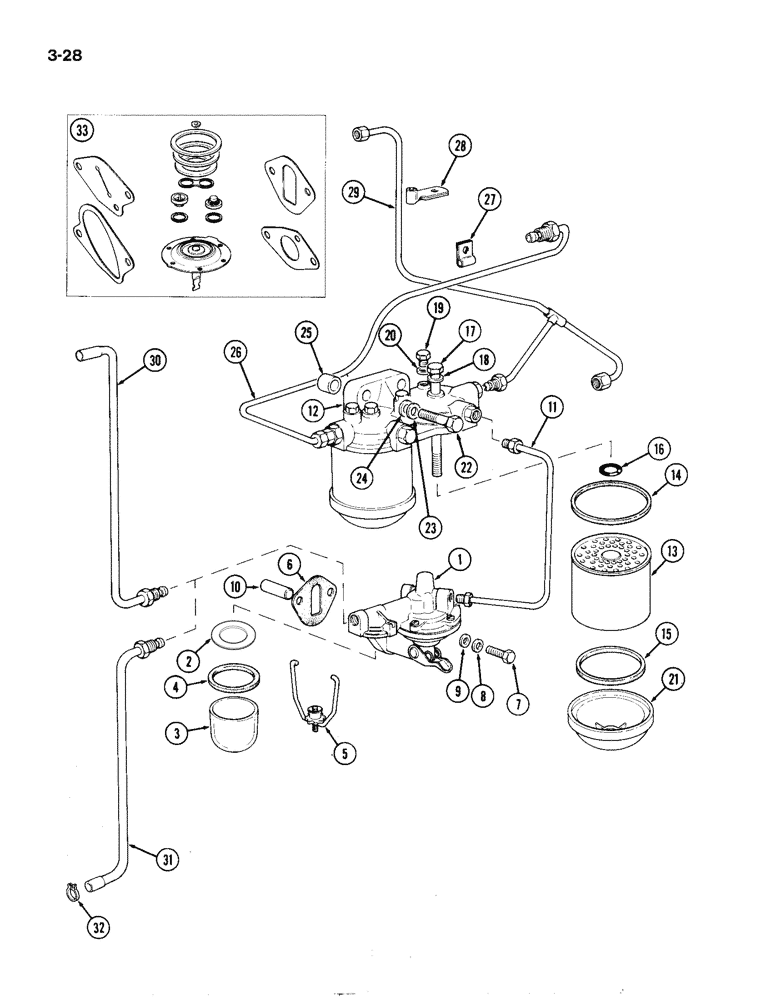

Схема запчастей Case IH 1194 - (3-28) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM
20
23
8
31
16
28
27
30
2
17
21
33
1
12
25
7
14
13
9
5
4
22
6
32
18
15
19
29
10
24
3
11
26

Артикул

Название

Примечание

Количество

1

K908819

PUMP

- fuel feed (AC-Delco No. 7950901), Includes: Ref. 2 - 5 and diaphragm

1шт.

K911917

DIAPHRAGM

1шт.

2

K961732

FILTER

SCREEN - filter

1шт.

3

K961733

BOWL

- filter

1шт.

4

K34065

SEAL

RING - sealing

1шт.

5

K961735

BRACKET

STIRRUP AND SCREW

1шт.

6

K902136

GASKET

- feed pump

1шт.

7

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4 inch

1шт.

8

K19471

WASHER

- 5/16 inch (8 mm)

2шт.

9

K14988

WASHER

- copper, 5/16 inch (8 mm)

2шт.

10

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push

1шт.

11

K908169

PIPE,0.25" OD x 5.594, 1.641" L

TUBE - fuel, feed pump to filter

1шт.

12

K906708

FILTER

- fuel, (APF 62900), Includes: Ref. 13 - 21

1шт.

13

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT, Includes: Ref. 14 - 16

2шт.

14

K965802

RING

- sealing, upper

1шт.

15

K965801

RING

- sealing, lower

1шт.

16

K960937

O-RING

- 1/2 inch (13 mm) internal

1шт.

17

K600360

BOLT

- 5/16 UNC x 4-3/4 inch

2шт.

18

K963409

RING

- sealing, 5/16 inch (8 mm)

2шт.

19

K965010

PLUG

- 5/16 inch UNC

1шт.

20

K15734

WASHER

- aluminum, 5/16 inch (8 mm)

1шт.

21

K962264

COVER

BASE

1шт.

22

K600410

BOLT

- 3/8 UNC x 2-1/4 inch

2шт.

23

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

24

K11762

COPPER WASHER

- copper, 3/8 inch (10 mm)

2шт.

25

K202053

BUSHING

SPACER - filter to cylinder block

2шт.

26

K908171

PIPE,0.25" OD

TUBE - fuel, filter to injection pump

1шт.

27

K621619

CLIP

- fuel tube

1шт.

28

K621646

CLIP

- fuel tube

1шт.

29

K204094

PIPE

TUBE - filter leak-off

1шт.

30

K203830

PIPE,0.312" OD x 12, 2" L

TUBE - tank to feed pump (without cab)

1шт.

31

K203666

PIPE

TUBE - tank to feed pump (with cab)

1шт.

32

K656901

CLIP

- fuel tube to tank (with cab)

1шт.

33

K262265

KIT

- repair, fuel feed pump (AC Delco No. 93151242)

1шт.

Выбрано товаров: 34
