Запчасти Case IH 1194 (3-24) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM

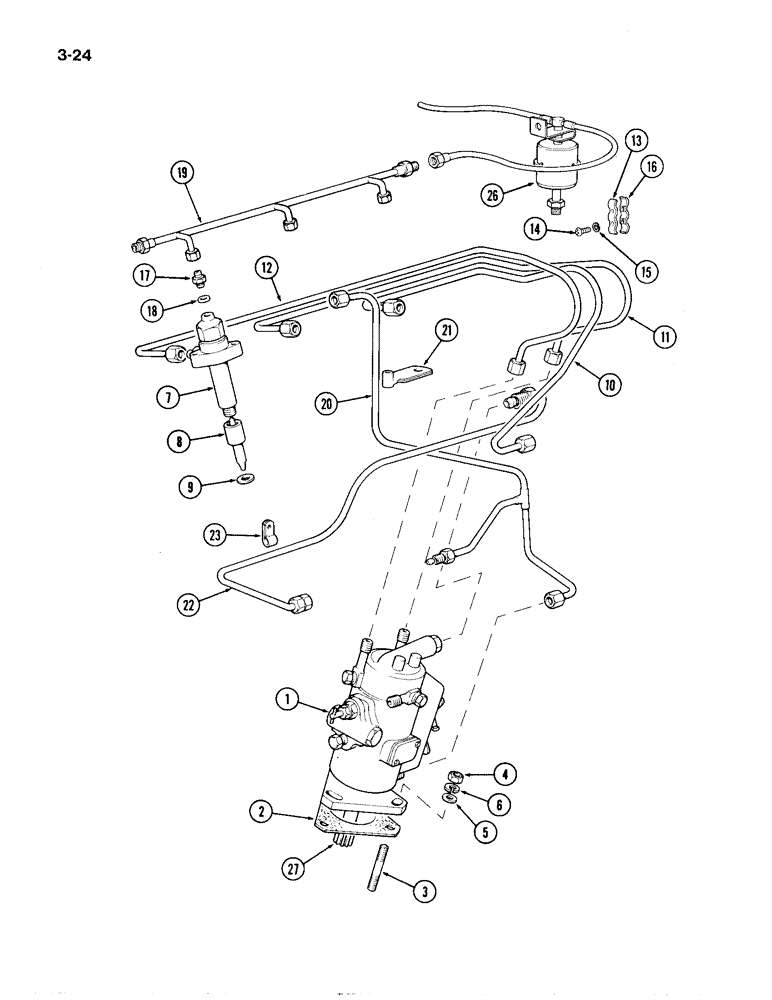

Схема запчастей Case IH 1194 - (3-24) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM
26
18
12
6
5
19
22
23
2
17
16
21
9
4
10
14
8
3
7
13
20
27
11
1
15

Артикул

Название

Примечание

Количество

1

K957150

PUMP

- fuel injection

1шт.

2

K68349

GASKET

- pump, 0.008 inch

1шт.

2

K311313

GASKET

- pump, 0.080 inch, alternative

1шт.

3

K608121

STUD

- 5/16 UNC x 1-7/8 inch

3шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

5

K19471

WASHER

- 5/16 inch UNC

3шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

K954826

INJECTOR ASSY.

INJECTOR, See Figure 3-26, Includes: Ref. 7 & 8

3шт.

7

K954827

NOZZLE INJECTION

HOLDER - (CAV BKBL 97S 5153)

1шт.

8

K942176

NOZZLE CAP

NOZZLE - (CAV BDLL 140S 6592)

1шт.

9

K901092

WASHER

- copper, 10 mm

1шт.

10

K949185

PIPE,2/8" OD x 20.25" L

TUBE - fuel, injection pump to No. 1 cylinder

1шт.

11

K949186

PIPE

TUBE - fuel, injection pump to No. 2 cylinder

1шт.

12

K949187

PIPE

TUBE - fuel, injection pump to No. 3 cylinder

1шт.

13

K908168

WASHER

CLIP - fuel tube

1шт.

14

K624200

SCREW,0.185" x 1/2"

- 2BA x 1/2 inch

2шт.

15

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

16

K207928

CLIP

- fuel tube

1шт.

17

K620460

ADAPTER

- M8 - 1/8 inch BSP

3шт.

18

K36374

WASHER

- copper, 8 mm

3шт.

19

K207669

PIPE

TUBE - injector leak-off

1шт.

20

K204094

PIPE

TUBE - pump leak-off

1шт.

21

K621646

CLIP

- tube

1шт.

22

K908171

PIPE,0.25" OD

TUBE - fuel, filter to injection pump

1шт.

23

K621619

CLIP

- fuel tube

1шт.

26

REF

INSTRUCTION

RESERVOIR - Thermostart, See Figure 3-30

1шт.

27

K963891

SHAFT

1шт.

Выбрано товаров: 27
