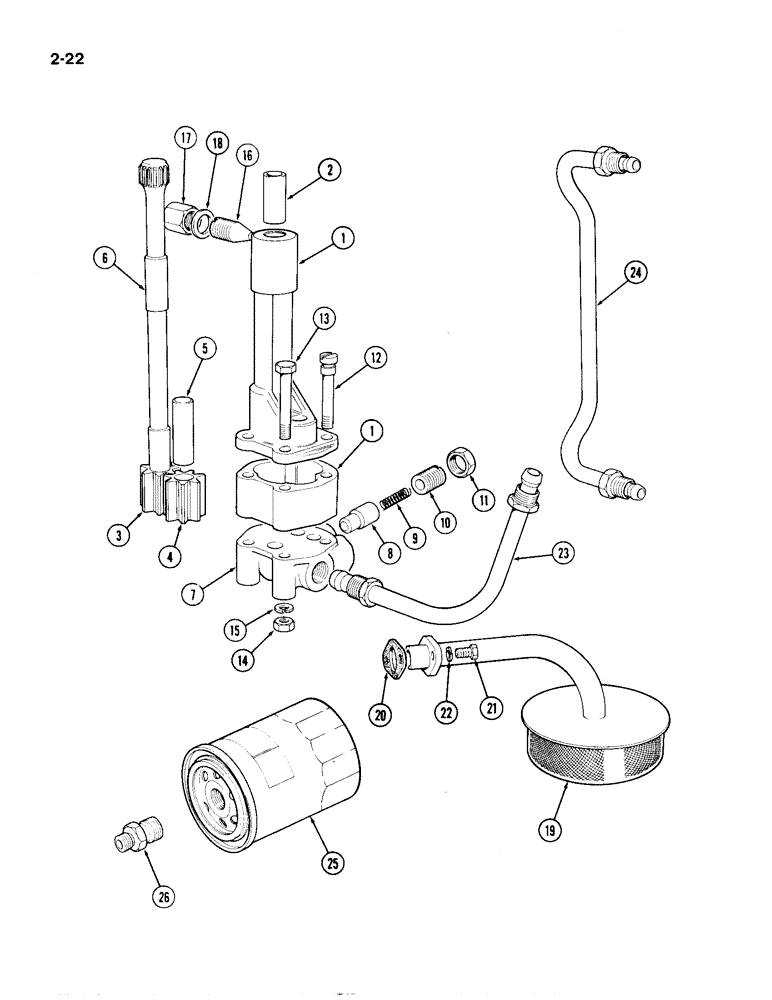

Запчасти Case IH 1194 (2-22) - LUBRICATING OIL PUMP, TUBES AND FILTER (02) - ENGINE

K954069

PUMP

ASSEMBLY - oil, Includes: Ref. 1 - 15

1шт.

1

K961737

BRACKET

HOUSING - bracket and gear, Includes: Ref. 2

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K953370

ROTOR

- driving, Includes: Ref. 5

1шт.

4

K949997

ROTOR

- driven, Includes: Ref. 5

1шт.

5

K902060

SPINDLE

SHAFT - driven rotor

1шт.

6

K954048

SPINDLE

SHAFT - driving rotor

1шт.

K907921

VALVE

ASSEMBLY - relief, Includes: Ref. 7 - 11

1шт.

7

K907589

VALVE

COVER

1шт.

8

K907590

PLUNGER

1шт.

9

K625148

SPRING

1шт.

10

K912301

SCREW

- adjusting

1шт.

11

K19438

LOCK NUT

- lock, 3/8 inch BSP

1шт.

12

K604544

FITTING

SCREW - special fitting, 1/4 UNC x 3 inch

2шт.

13

K600018

BOLT

- 1/4 UNC x 3 inch

2шт.

14

K607000

NUT

- 1/4 inch UNC

4шт.

15

K19480

SPRING WASHER

- lock, 1/4 inch

4шт.

16

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating, 7/16 inch UNC

1шт.

17

K607516

NUT

- capped, 7/16 UNC

1шт.

18

K14674

WASHER

- copper, 7/16 inch

1шт.

19

K907929

FILTER

- oil pump inlet

1шт.

20

K908048

GASKET,0.76mm Thk

- filter

1шт.

21

K602702

SCREW

BOLT - 1/4 UNC x 5/8 inch

2шт.

22

K19480

SPRING WASHER

- lock, 1/4 inch

2шт.

23

K908050

PIPE

TUBE - oil, pump to cylinder block

1шт.

24

K203417

PIPE

TUBE - oil, cylinder, Serial Range: block-head

1шт.

25

K200037

FILTER

- oil

1шт.

26

K200181

FITTING

CONNECTOR - oil filter, 5/8 UNC - 3/4 inch UNF

1шт.
