Запчасти Case IH 1194 (2-18) - CYLINDER BLOCK AND COVERS (02) - ENGINE

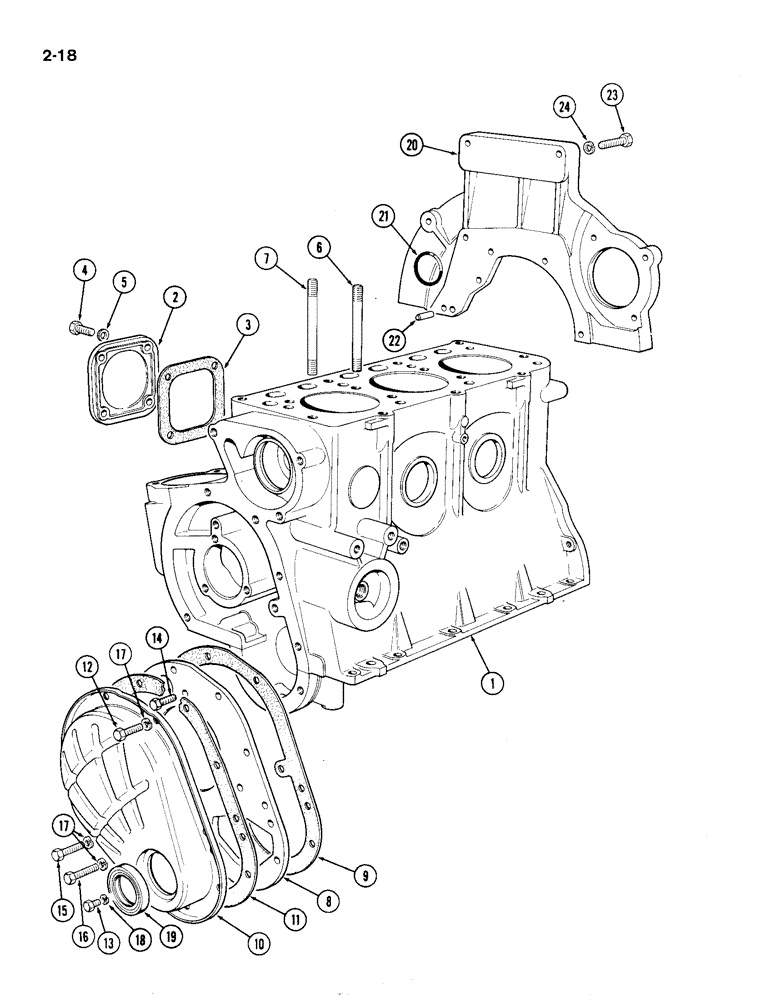

Схема запчастей Case IH 1194 - (2-18) - CYLINDER BLOCK AND COVERS (02) - ENGINE
8
1
7
18
11
22
19
15
21
10
5
17
20
4
13
24
17
3
9
12
16
14
2
6
23

Артикул

Название

Примечание

Количество

1

K965870

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, See Figure 2-16

1шт.

Ref #1 - (Casting # K956650) 01/09/96

1шт.

2

K907332

TAPPET

COVER - tappet

2шт.

3

K907333

GASKET

- tappet cover

2шт.

4

K602863

SCREW

BOLT - 5/16 UNC x 3/4 inch

8шт.

5

K19471

WASHER

- 5/16 inch (8 mm)

8шт.

6

K906538

STUD

- cylinder head, 1/2 UNC/UNF x 4-7/8 inch

4шт.

7

K608505

STUD,1/2" x 7/16"

STUD - cylinder head, 1/2 UNC/UNF x 5-5/16 inch

2шт.

8

K907297

CARRIER

PLATE - carrier, timing gear

1шт.

9

K907326

GASKET

- carrier, Serial Range: plate-block

1шт.

10

K907225

COVER

- timing gear

1шт.

11

K907327

GASKET

- carrier, Serial Range: plate-cover

1шт.

12

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC Hex, 5/16"-18 x 7/8", G5, Full Thd

7шт.

13

K602700

SCREW,1/4" - 20 x 3/8"

BOLT - 1/4 UNC x 3/8 inch

1шт.

14

K602803

BOLT

- 5/16 UNC x 3/4 inch

3шт.

15

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8 inch

1шт.

16

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4 inch

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

12шт.

18

K19480

SPRING WASHER

- lock, 1/4 inch

1шт.

19

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

- 2-1/8 x 2-7/8 x 3/8 inch (54 x 73 x 10 mm)

1шт.

20

K200154

PLATE

- starter support

1шт.

21

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16 inch (46 mm) internal

1шт.

22

K12258

PIN

- dowel, 5/16 x 3/4 inch

2шт.

23

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch

5шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

5шт.

K260286

ENGINE GASKET KIT

GASKET KIT - cylinder block

1шт.

Выбрано товаров: 26
