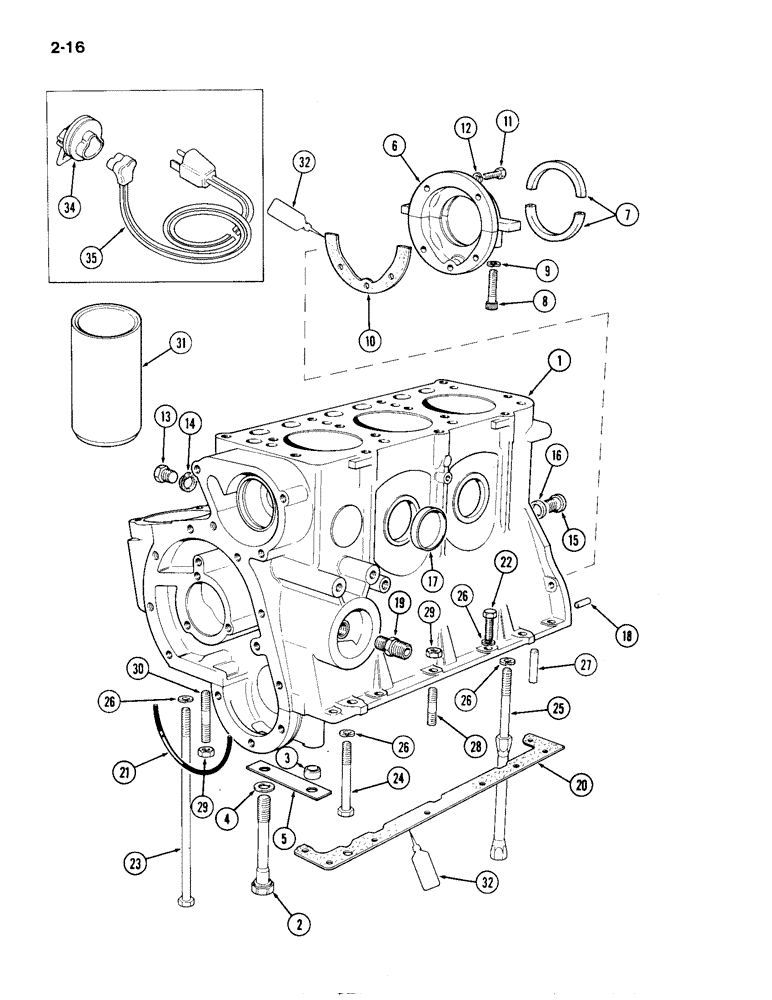

Запчасти Case IH 1194 (2-16) - CYLINDER BLOCK ASSEMBLIES (02) - ENGINE

K965718

SKELETON ENGINE

BLOCK - cylinder, with crankshaft and pistons, Includes: Ref. 1 -19 and crankshaft, pin, bolt, washer, nut, rod assy., and piston assy. below

1шт.

1

K965870

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 1 - 19

1шт.

Ref #1 - (Casting #K956650) 01/09/96

1шт.

2

K909564

STEP BOLT

- 9/16 UNC x 4 inch

8шт.

3

K907322

RING

DOWEL - ring, main bearing caps

8шт.

4

K929560

BEARING WASHER

WASHER - sprcial, 9/16 inch

8шт.

5

K626376

SHEET

WASHER - tab

4шт.

6

K964844

HOUSING

RETAINER ASSEMBLY - oil, Includes: Ref. 7 - 9

1шт.

Ref #6-page 9-244 engine oil dipstick. by bb 5/20/96

1шт.

7

K921611

OIL SEAL

PACKING - oil retainer

2шт.

8

K606558

SCREW

- 5/16 UNC x 1-1/2 inch

2шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

10

K950938

GASKET,0.18mm Thk

- oil retainer, halves

2шт.

11

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC Hex, 5/16"-18 x 7/8", G5, Full Thd

5шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

5шт.

13

K19581

PLUG

- block drain, 1/4 inch BSP

1шт.

14

K19501

WASHER

WASHER - sealing, 1/2 inch

1шт.

15

K609440

PLUG

- oil gallery, 5/8 inch UNC

1шт.

16

K619506

WASHER

- copper, 5/8 inch

1шт.

17

K623797

PLUG

- core, 1-3/4 inch (44 mm)

4шт.

18

K12258

PIN

- dowel, 5/16 x 3/4 inch

2шт.

19

K200181

FITTING

CONNECTOR - oil filter, 5/8 UNC - 3/4 inch UNF

1шт.

K912017

CRANKSHAFT

See Figure 2-20

1шт.

K10629

PIN

- dowel, 1/2 x 15/16 inch

1шт.

K903431

STEP BOLT

- special, 7/16 inch UNF

4шт.

K910883

WASHER

- tab

1шт.

K616968

NUT

- 7/16 inch UNF

4шт.

K80043

ROD, CONNECTING

ROD ASSEMBLY - connecting, See Figure 2-20

3шт.

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY, See Figure 2-20

1шт.

20

K907583

GASKET

- left cylinder block to main frame

1шт.

20

K907582

GASKET

- right cylinder block to main frame

1шт.

21

K907584

SEAL

- bearing cap, cylinder block to main frame

2шт.

22

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

7шт.

23

K600465

BOLT

- special, 3/8 UNC x 8-1/4 inch

3шт.

24

K600416

BOLT

- 3/8 UNC x 3 inch

1шт.

25

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

- special, 3/8 UNC x 8-1/8 inch

1шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

15шт.

27

K622903

PIN

- dowel, 7/16 x 1-3/8 inch

2шт.

28

K608201

STUD

- 3/8 UNC x 1-5/8 inch

2шт.

29

280136

NUT,3/8"-16, G8

4шт.

30

K608244

STUD

- 3/8 UNC x 2-1/4 inch

1шт.

K260286

ENGINE GASKET KIT

GASKET KIT - cylinder block

1шт.

31

K964857

LINER, ENGINE CYLIND

LINER - cylinder

1шт.

32

REF

INSTRUCTION

SILMATE RTV - gasket replacement (See your authorized Case Dealer)

1шт.

34

A48263

RESISTOR

HEATER ASSEMBLY - cylinder block (North America only)

1шт.

35

A48264

CABLE

CORD - heater (North America only)

1шт.
