Запчасти Case IH 1194 (2-14) - VALVE MECHANISM AND TIMING GEARS (02) - ENGINE

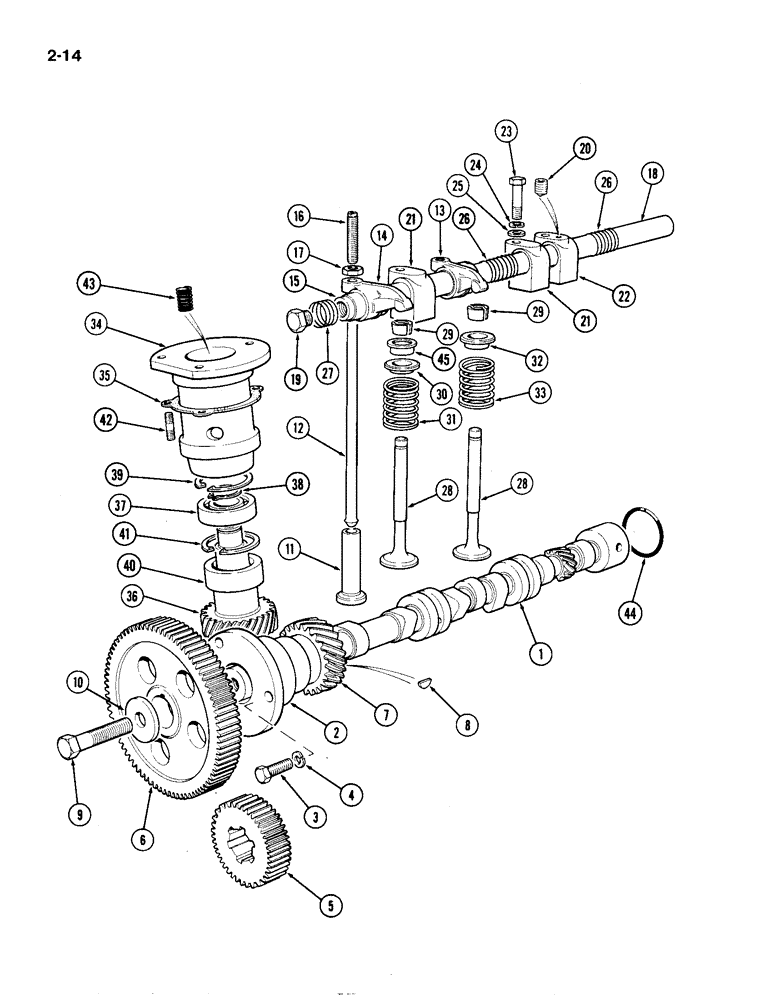

Схема запчастей Case IH 1194 - (2-14) - VALVE MECHANISM AND TIMING GEARS (02) - ENGINE
13
37
16
17
44
26
21
9
5
22
21
10
42
34
29
32
38
36
19
20
24
4
28
31
26
2
3
45
33
15
30
18
7
25
14
6
43
35
12
41
23
39
27
28
8
1
40
11
29

Артикул

Название

Примечание

Количество

1

K914527

CAMSHAFT

1шт.

2

K907336

HOUSING

- locating

1шт.

3

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

4

K19481

SPRING WASHER

WAHSER - lock, 5/16 inch

3шт.

5

K907329

GEAR

- 41 teeth, crankshaft

1шт.

6

K907335

PINION

GEAR - 82 teeth, camshaft

1шт.

7

K909920

DRIVE

GEAR - injection pump drive

1шт.

8

K19607

KEY

- Woodruff No. 506

2шт.

9

K907572

BOLT

- 1/2 UNC x 2-1/4 inch

1шт.

10

K907571

WASHER

WAHSER - 1/2 inch, special

1шт.

11

K901137

TAPPET

6шт.

12

K902035

ROD

- push

6шт.

13

K63089

ROCKER

ARM - rocker, right, with bushing

3шт.

14

K63089

ROCKER

ARM - rocker, right, with bushing

3шт.

15

K11060

BUSHING

- valve rocker arm

6шт.

16

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting, 3/8 inch UNC

6шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8 inch UNC

6шт.

18

K907920

TUBE

SHAFT - rocker

1шт.

19

K19590

PLUG

- 3/8 inch BSP

2шт.

20

K606051

SET SCREW,5/16" - 18 x 1/2"

- 5/16 UNC x 1/2 inch

1шт.

21

K921431

BRACKET

- rocker shaft, No. 1 and 2

2шт.

22

K921432

BRACKET

- rocker shaft, rear

1шт.

23

K600611

BOLT

- 7/16 UNC x 2-5/8 inch

3шт.

24

K19483

SPRING WASHER

- lock, 7/16 inch

3шт.

25

K19473

WASHER

- 7/16 inch (11 mm)

3шт.

26

K11017

SPRING

- intermediate

2шт.

27

K907919

WASHER

SPRING - end

2шт.

28

K928622

STD INLET VALVE

VALVE - intake and exhaust, standard stem

6шт.

28

K928986

VALVE

- intake and exhaust, 0.010 inch (0.25 mm) oversize stem

6шт.

28

K928987

VALVE

- intake and exhaust, 0.020 inch (0.51 mm) oversize stem

6шт.

29

K943439

LOCKING DEVICE

LOCK - valve

12шт.

30

K928624

COLLAR

- outer, exhaust valve

3шт.

31

K921436

VALVE SPRING

SPRING - exhaust valve

3шт.

32

K921437

COLLAR

- intake valve

3шт.

33

K921435

SPRING

- intake valve

3шт.

34

K948193

HOUSING

- bearing

1шт.

35

K907922

GASKET

- housing to cylinder block

1шт.

36

K912483

GEAR

- injection pump

1шт.

37

K24489

BALL BEARING

BEARING - ball

1шт.

38

K11128

CIRCLIP

RING - retaining, 1 inch (25 mm) external

1шт.

39

K13170

RING, SNAP

RING - retaining, 2-1/16 inch (52 mm) internal

1шт.

40

K620266

NEEDLE BEARING

BEARING - roller, needle

1шт.

41

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

42

K608121

STUD

- 5/16 UNC x 1-7/8 inch

3шт.

43

K624903

SPRING

- pump shaft locating

1шт.

44

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16 inch (46 mm) internal

1шт.

45

K928623

COLLAR

- inner, exhaust valve

3шт.

Выбрано товаров: 47
