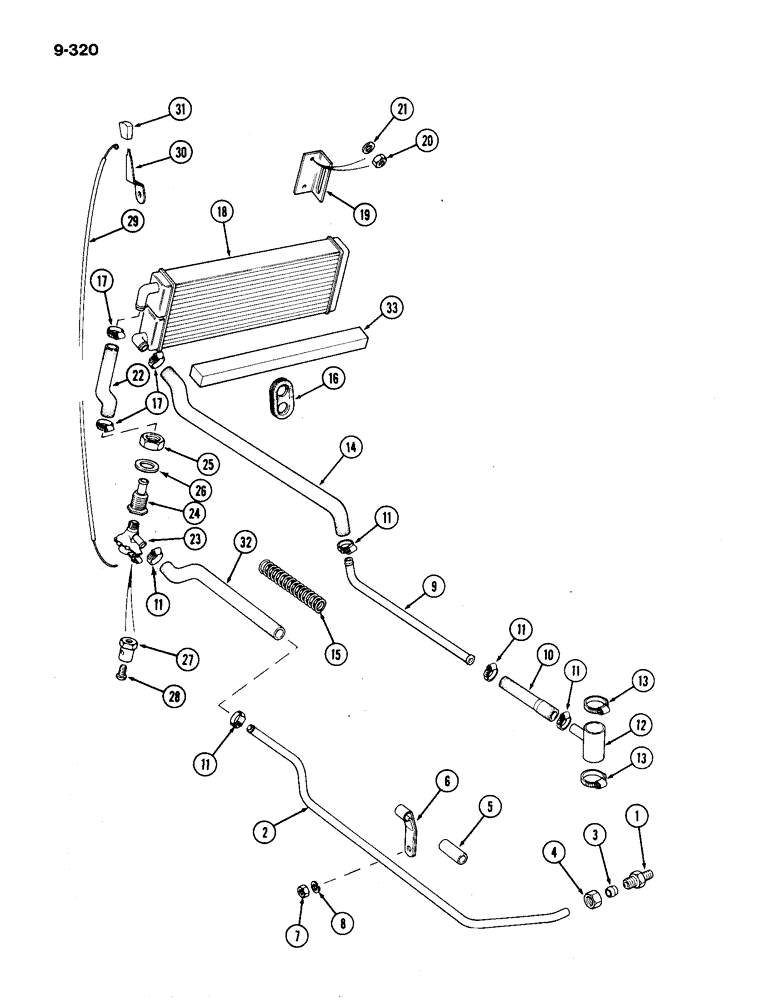

Запчасти Case IH 1194 (9-320) - CAB HEATER, TUBES AND FITTINGS (09) - CHASSIS/ATTACHMENTS

1

K626055

FITTING

ADAPTOR - 1/2 x 3/8 inch BSP

1шт.

2

K205038

HEATER

TUBE - thermostat housing

1шт.

3

K11904

FERRULE

SLEEVE - 1/2 inch

1шт.

4

K623212

FITTING

NUT - union, 1/2 inch BSP

1шт.

5

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

1шт.

6

K203832

CLIP

- housing tube

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

8

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

9

K205037

HEATER

TUBE - water return

1шт.

10

K626087

FITTING

HOSE -, Serial Range: tube-adaptor

1шт.

11

K622022

CLAMP

CLIP - hose

5шт.

12

K953814

ADAPTER

ADAPTOR - radiator hose

1шт.

13

K622029

CLAMP

CLIP - hose, 1-3/4 inch (44 mm)

2шт.

14

K307265

HEATER HOSE,12.50 mm ID x 380.00 mm, SAE20R4 Class D1

- Radiator outlet 12.50 mm ID x 380.00 mm, SAE20R4 Class D1

2шт.

15

K206350

STRIP

COIL - hose protection

2шт.

16

K627742

GROMMET

-, Serial Range: hoses-cab

2шт.

17

K622023

CLAMP

CLIP - hose

3шт.

18

K304486

HEATER

RADIATOR - heater

1шт.

19

K303251

BRACKET

- radiator support

1шт.

20

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

21

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

22

K205378

HEATER HOSE

- 1/2 x 5-1/2 inch (13 x 140 mm)

1шт.

23

K205318

VALVE

- heater control

1шт.

24

K205316

ADAPTER

ADAPTOR - heater valve

1шт.

25

425-1416

JAM NUT,Jam, 1"-8, G5

- 1 inch UNC

1шт.

26

K627472

WASHER

- 1 inch

1шт.

27

K952104

TRUNNION

- No. 8 UNC

1шт.

28

K605578

SCREW

- No. 8 UNC

1шт.

29

K311797

CABLE

- inner and outer (Replaces K304229)

1шт.

30

K310371

HANDLE

LEVER - hand

1шт.

31

K303754

KNOB

- hand lever

1шт.

32

K307264

HEATER HOSE

- Valve inlet

1шт.

33

K308479

BAFFLE

- radiator

1шт.
