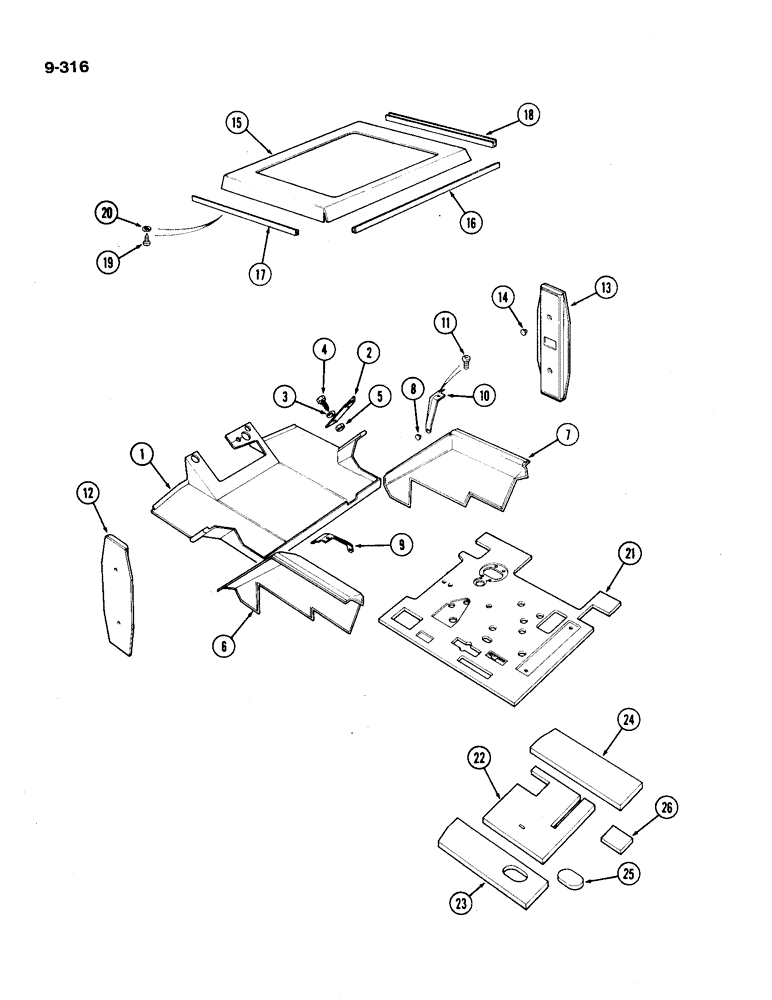

Запчасти Case IH 1194 (9-316) - INTERIOR AND EXTERIOR TRIM, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307688

FLOOR

MAT - floor

1шт.

2

K303230

BRACKET

- floor mat

2шт.

3

K651903

WASHER

- 6 mm

4шт.

4

K650813

BOLT,Hex, M6 x 1 x 25mm, Gr 8.8

SCREW - M6 x 30 mm

4шт.

5

K652132

NUT

- self locking, M6

4шт.

6

K307553

FOAM

TRIM - fender, left-hand

1шт.

7

K307554

FOAM

TRIM - fender, right-hand

1шт.

8

K692232

RIVET

FASTENER -, Serial Range: trim-fender

12шт.

9

K307578

PLATE

- fender, left-hand

1шт.

10

K307579

PLATE

- fender, right-hand

4шт.

11

K653377

SCREW

- M6 x 12 mm

4шт.

12

K307555

FOAM

TRIM - door post, left-hand

1шт.

13

K307556

FOAM

TRIM - door post, right-hand

1шт.

14

K692232

RIVET

FASTENER -, Serial Range: trim-post

4шт.

15

K307552

FOAM

TRIM - roof

1шт.

16

K303333

STRIP

- rear

1шт.

17

K303332

STRIP

- side, left-hand

1шт.

18

K303350

FOAM

STRIP - side, right-hand

1шт.

19

K656212

SCREW

- No. 7 x 1/2 inch

7шт.

20

K651776

WASHER

- 5 mm

7шт.

21

K307626

INSULATOR

TRIM - seat plate

1шт.

22

K307791

FOAM

INSULATION - center rear

1шт.

23

K307792

FOAM

INSULATION - left-hand rear

1шт.

24

K307793

FOAM

INSULATION - right-hand rear

1шт.

25

K307515

FOAM

INSULATION - fuel sender cover

1шт.

26

K307794

FOAM

INSULATION - cover plate

1шт.
