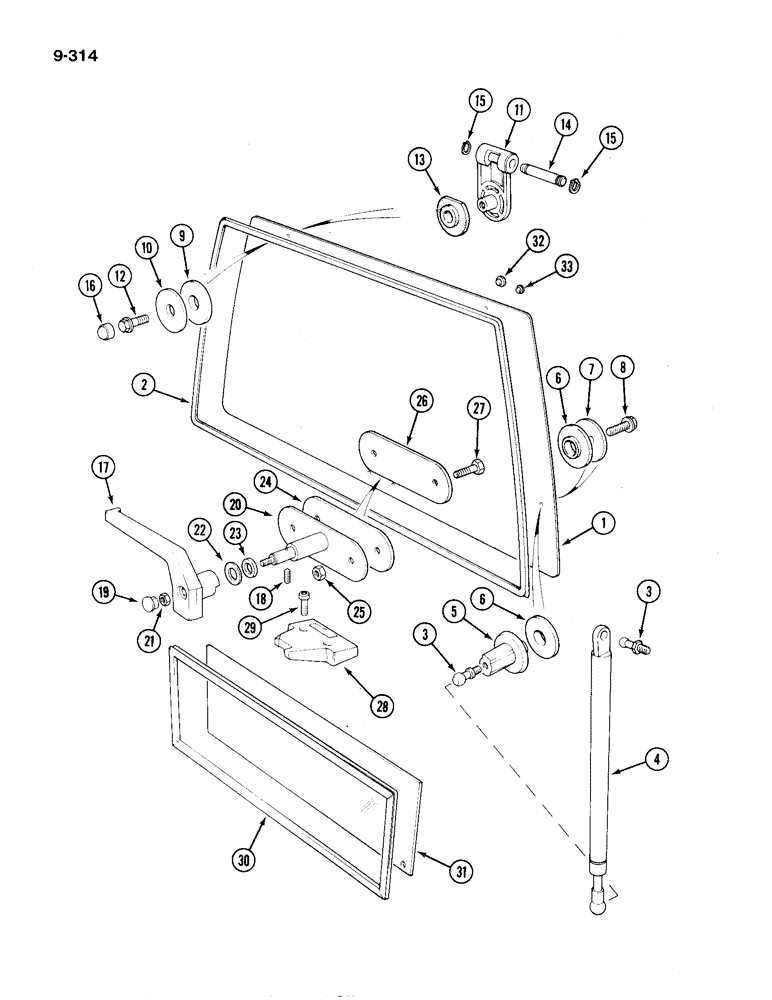

Запчасти Case IH 1194 (9-314) - REAR WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K312000

GLASS

- rear window (Replaces K307233 and K311314)

1шт.

2

K303592

SEAL, GLASS

STRIP - sealing

1шт.

3

K303756

BALL STUD,M6 x 1

BALL END - M6

4шт.

4

K303743

GAS STRUT

STRUT - rear window gas

2шт.

5

K303541

BRACKET

2шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

4шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm, special

2шт.

8

K650627

BOLT,M6 x 16mm

- M5 x 16 mm 2

2шт.

9

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

2шт.

10

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm, special

4шт.

11

K303875

HINGE

2шт.

12

K650627

BOLT,M6 x 16mm

- M6 x 16 mm

2шт.

13

K303928

GROMMET

WASHER - rubber

2шт.

14

K310930

PIN

- hinge, 8 x 83 mm (Replaces K303517)

2шт.

15

K653509

RING, SNAP

RING - retaining, 8 mm external

4шт.

16

K651962

CAP

- plastic

4шт.

K303983

HANDLE

ASSEMBLY, Includes: Ref. 17 - 27

1шт.

17

K303514

HANDLE

- rear window

1шт.

18

K654315

SCREW,M4

- locating, M4

1шт.

19

K656780

PLUG

- plastic

1шт.

20

K303982

SUPPORT

SPINDLE

1шт.

21

K652106

LOCK NUT

- M6

1шт.

22

K651780

WASHER

- special

1шт.

23

K651910

RUBBER

WASHER - rubber

1шт.

24

K303503

RUBBER

PAD - rubber

2шт.

25

K651474

NUT

- M6, self-locking

2шт.

26

K303340

PLATE

- clamping

1шт.

27

K650813

BOLT,Hex, M6 x 1 x 25mm, Gr 8.8

- M6 x 25 mm

2шт.

28

K303980

PLATE

- striker

1шт.

29

K653380

LOCK BOLT,Pan Hd, M6 x 1 x 25mm

BOLT - M6 x 25 mm

2шт.

30

K303947

GASKET

FRAME - lower rear window (fixed)

1шт.

31

K307656

GLASS,CAB

GLASS - lower rear window (fixed)

1шт.

32

E64838

PLUG

- rear window

1шт.

33

K210050

PLUG

- rear window

1шт.
