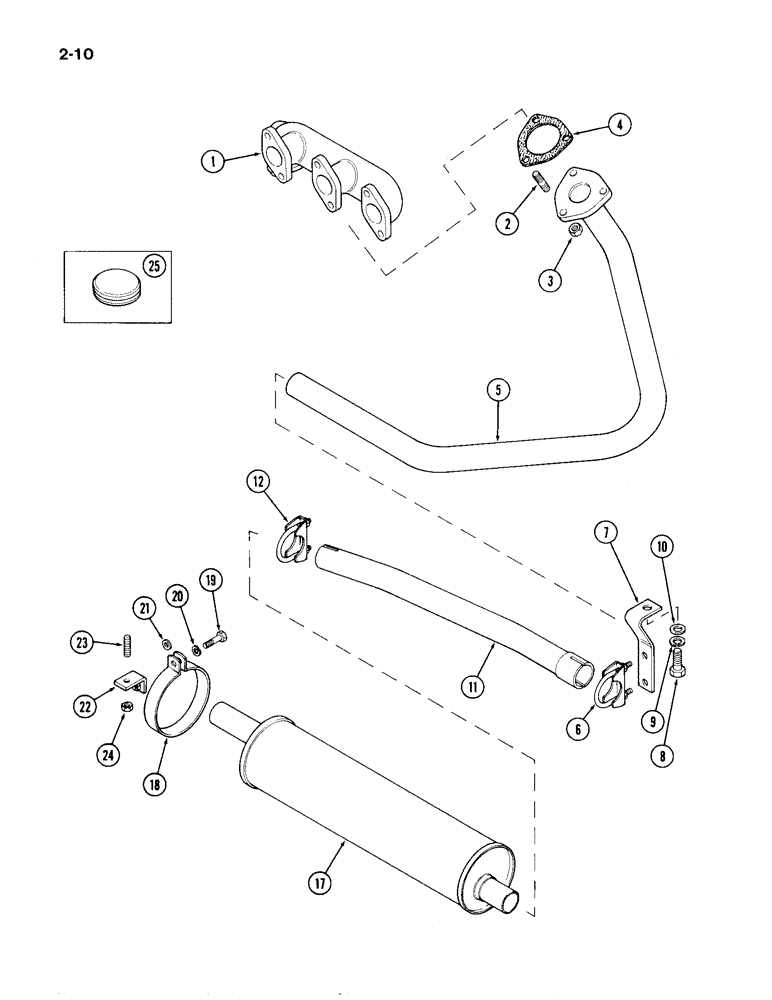

Запчасти Case IH 1194 (2-10) - DOWNSWEPT EXHAUST (02) - ENGINE

UK5450

KIT

- exhaust, downswept (replaces UK5277), Includes: Ref. 1 - 25

1шт.

1

K914087

MANIFOLD ASSY

MANIFOLD - downswept exhaust

1шт.

2

K608203

STUD

- 3/8 UNC x 1-7/16 inch

3шт.

3

280136

NUT,3/8"-16, G8

3шт.

4

K912441

GASKET

- front pipe

1шт.

5

K204428

PIPE, EXHAUST SYSTEM

PIPE - exhaust, front

1шт.

6

K207239

CLAMP

CLIP -, Serial Range: pipe-pipe

1шт.

7

K307861

BRACKET

- clip

1шт.

8

K603141

SCREW

BOLT - 1/2 UNC x 1-1/4 inch

1шт.

9

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

1шт.

10

K19474

HARDWARE

WASHER - 1/2 inch (13 mm)

1шт.

11

K204430

PIPE, EXHAUST SYSTEM

PIPE - exhaust, center

1шт.

12

K207588

CLAMP

CLIP -, Serial Range: pipe-muffler

1шт.

17

K910539

MUFFLER

1шт.

18

K628370

CLIP

- muffler

1шт.

19

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT - 3/8 UNC x 1-1/4 inch

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

21

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

22

K204434

BRACKET

- muffler support

1шт.

23

K608236

STUD

- 3/8 UNC x 1-1/2 inch

1шт.

24

232-1416

LOCK NUT,3/8"-16, GC

NUT - self locking, 3/8 inch UNC

1шт.

25

K304967

INSERT

- hood opening 3.54"

1шт.

25

K956075

INSERT

- Hood 3.25"

1шт.

25

K914347

INSERT

- Hood 2.75"

1шт.
