(9-304) - CAB ROOF, TRACTORS WITH CAB

Запчасти Case IH 1194 (9-304) - CAB ROOF, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

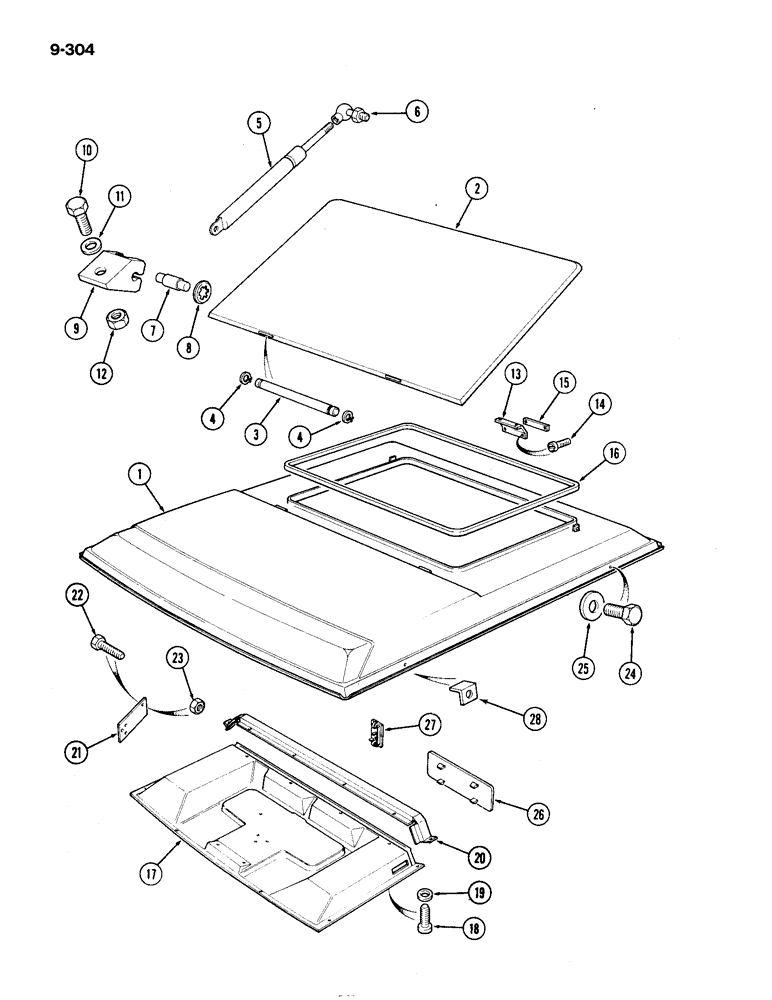

Схема запчастей Case IH 1194 - (9-304) - CAB ROOF, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
19
10
24
22
1
2
25
21
27
28
11
7
16
17
20
8
9
23
14
4
6
5
13
26
15
4
3
18
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K307572

ROOF

- complete, Includes: Ref. 1 - 16

1шт.

1

K303359

ROOF

- outer

1шт.

2

K307651

HATCH

- roof, See Figure 9-306

1шт.

3

K303515

HINGE

PIN - hinge

2шт.

4

K653507

RING, SNAP

RING - snap, hinge pin

4шт.

5

K303741

GAS STRUT

STRUT - gas, hatch

2шт.

6

K303757

BALL JOINT

- gas strut

2шт.

7

K303882

PIN,6mm OD x 20mm L

- anchor, gas strut

2шт.

8

K657860

RING, SNAP

RING - snap, anchor pin

4шт.

9

K303884

BRACKET

ANCHOR - gas strut

2шт.

10

K653344

SCREW

- M6 x 16 mm

2шт.

11

K651777

WASHER

- 6 mm

2шт.

12

K652106

LOCK NUT

- self-locking, M6

2шт.

13

K307037

PLATE

- striker

1шт.

14

K652743

SCREW,M5 x 12mm

- M5 x 12 mm

2шт.

15

K303557

BRACKET

PLATE - retaining

1шт.

16

K303878

SEAL

- sealing, hatch

1шт.

17

K307574

ROOF

- inner

1шт.

18

K653344

SCREW

- M6 x 16 mm

6шт.

19

K651795

WASHER

- 6 mm

9шт.

20

K303566

SUPPORT

PLATE - corner

1шт.

21

K303573

PLATE

- stiffening

1шт.

22

K652505

SCREW,M5 x 20mm

- M5 x 20 mm

1шт.

23

K651625

NUT

- M5

1шт.

24

K652753

SCREW

- M8 x 16 mm

4шт.

25

K303630

BUSHING

WASHER - 8 mm

4шт.

26

K306971

PLATE

- blanking

1шт.

27

K307606

PLUG

- switch aperture

2шт.

28

K692256

BRACKET

WASHER - special, packing

4шт.
