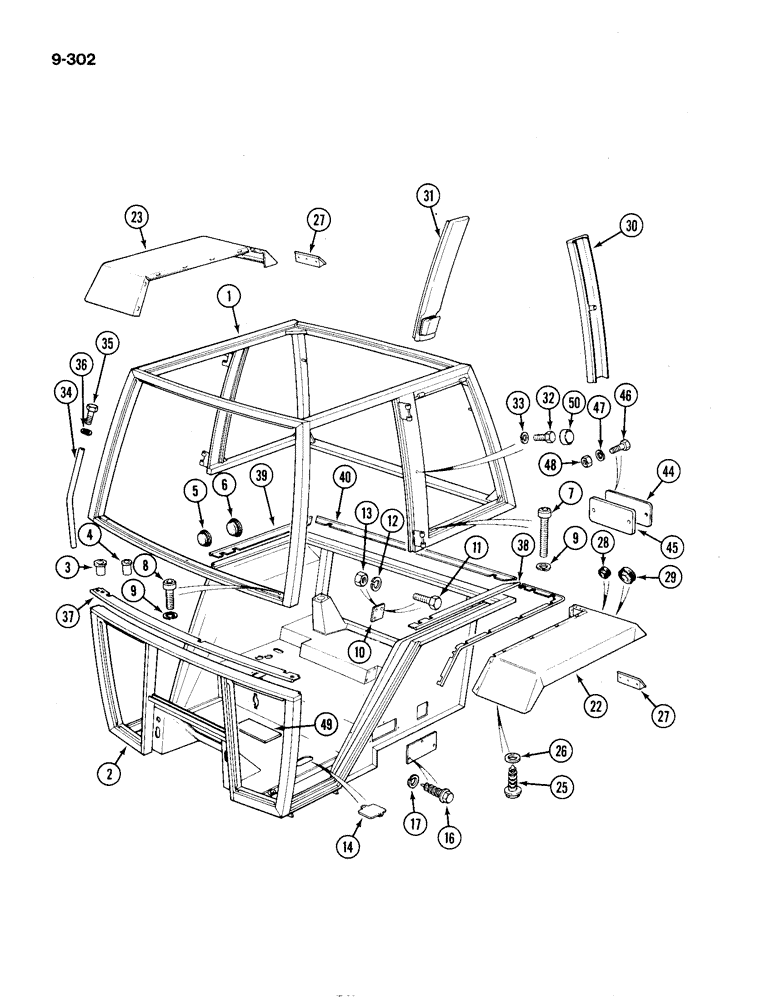

Запчасти Case IH 1194 (9-302) - CAB FRAME AND FENDERS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K303455

CAB

FRAME - upper

1шт.

2

K310973

FRAME

- lower (Replaces K310536)

1шт.

3

K692205

INSERT

- M8

6шт.

4

K692208

INSERT

- M6

8шт.

5

K656767

GROMMET

- 16 mm

5шт.

6

K656768

GROMMET

- 18 mm

4шт.

7

K653951

SCREW

BOLT - M12 x 70 mm

2шт.

8

K653948

SCREW,M12 x 1.75 x 40mm

BOLT - M12 x 40 mm

6шт.

9

K651935

WASHER

- lock, 12 mm

8шт.

10

K308012

PLATE

- two-wheel drive tractor

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

12

K651848

WASHER

- lock, 8 mm

2шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.

14

K303231

PLATE

- fuel sender aperture

1шт.

15

K303385

PLATE

-, Serial Range: access-mountings

2шт.

16

K650628

BOLT

SCREW - M6 x 18 mm

6шт.

17

K651847

WASHER, LOCK

WASHER - lock, 6 mm

6шт.

22

K303315

FENDER

- left-hand

1шт.

23

K303317

FENDER

- right-hand

1шт.

24

K311580

FOAM

STRIP - edging 3 x 10 mm, order in meters (Replaces K303581)

1шт.

25

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

- M8 x 16 mm

18шт.

26

K626916

WASHER

- 8M special

18шт.

27

K303612

HOUSING

- rear lamp

2шт.

28

K627743

PLUG

GROMMET - 9 mm, left-hand fender

4шт.

29

K627739

PLUG

- 12 mm, left-hand fender

1шт.

30

K303214

COVER

- door post, left-hand

1шт.

31

K303210

COVER

- door post, right-hand

1шт.

32

K650631

BOLT

- M6 x 35 mm

2шт.

33

K651795

WASHER

- 6 mm

2шт.

34

K305140

HANDLE

- grab

2шт.

35

K650817

SCREW

- M8 x 25 mm

4шт.

36

K651934

SPRING

WASHER - lock, 8 mm

4шт.

37

K311580

FOAM

STRIP - sealing, front 3 x 10 mm, order in meters (Replaces K303416)

1шт.

38

K311580

FOAM

STRIP - sealing, left-hand side 3 x 10 mm, order in meters (Replaces K303417)

1шт.

39

K311580

FOAM

STRIP - sealing, right-hand side 3 x 10 mm, order in meters (Replaces K303418)

1шт.

40

K311580

FOAM

STRIP - sealing, rear 3 x 10 mm, order in meters (Replaces K303419)

1шт.

44

K64902

PLATE - access

1шт.

45

K64903

SEAL - access plate

1шт.

46

K652465

SCREW

- M5 x 20 mm

2шт.

47

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

48

K651525

NUT

- M5

2шт.

49

K307802

PLATE

- floor

1шт.

50

K651962

CAP

- special, plastic

2шт.
