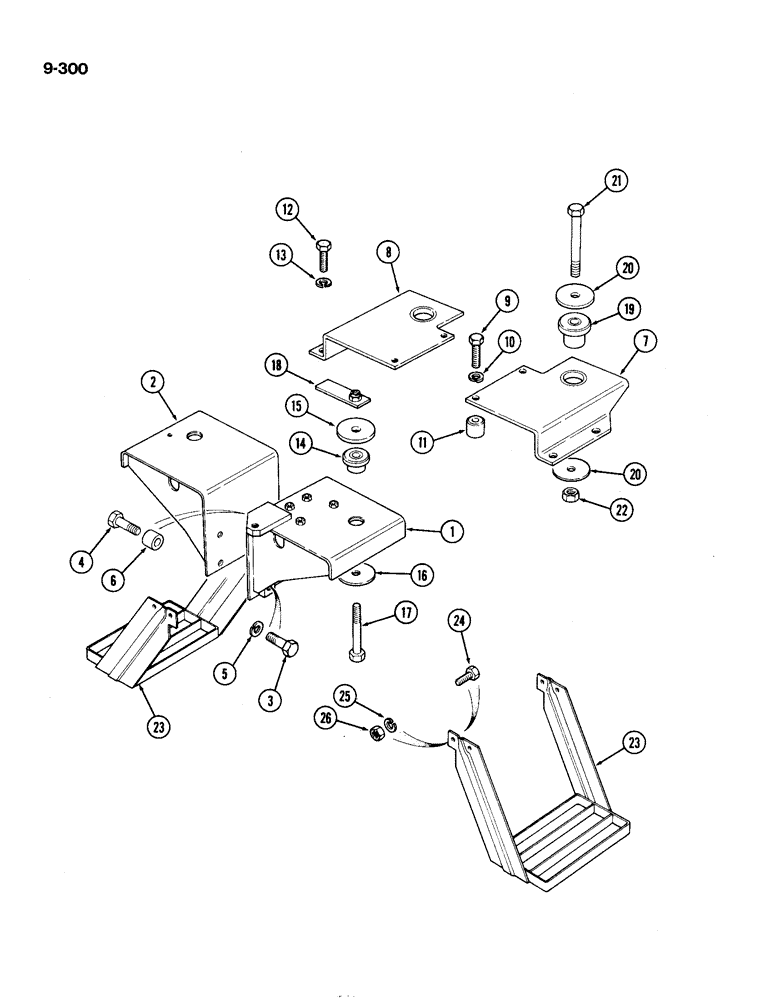

Запчасти Case IH 1194 (9-300) - CAB MOUNTINGS AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K207499

CAB

BRACKET - mounting, left-hand front

1шт.

2

K207502

CAB

BRACKET - mounting, right-hand front

1шт.

3

K603275

SCREW

BOLT - 5/8 UNC x 1-5/8 inch

7шт.

4

K603278

SCREW

BOLT - 5/8 UNC x 2 inch

1шт.

5

K19485

WASHER

- lock, 5/8 inch

8шт.

6

K207340

BUSHING

SPACER

1шт.

7

K207504

CAB

BRACKET - mounting, left-hand rear

1шт.

8

K207506

CAB

BRACKET - mounting, right-hand rear

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces K603145) Hex, 1/2"-13 x 2", G5

4шт.

10

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

11

K627328

BUSHING

SPACER

4шт.

12

K603275

SCREW

BOLT - 5/8 UNC x 1-5/8 inch

4шт.

13

K19485

WASHER

- lock, 5/8 inch

4шт.

14

L46821

SHOCK ABSORBER

BUSHING - rubber, front

2шт.

15

K307877

WASHER

- special, upper

2шт.

16

K309879

WASHER

- special, lower

2шт.

17

K600880

BOLT

- 1/2 UNC x 3 inch

2шт.

18

K207515

NUT

- special, 1/2 inch UNC

2шт.

19

A140221

MOUNTING PARTS

BUSHING - rubber, rear

2шт.

20

A141470

WASHER

- special

4шт.

21

K601376

BOLT

- 5/8 UNC x 6 inch

2шт.

22

K607306

NUT

- self-locking, 5/8 inch UNC

2шт.

23

K304775

MOUNTING PARTS

STEP - operator

2шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

25

K651778

WASHER

- 8 mm

8шт.

26

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.
