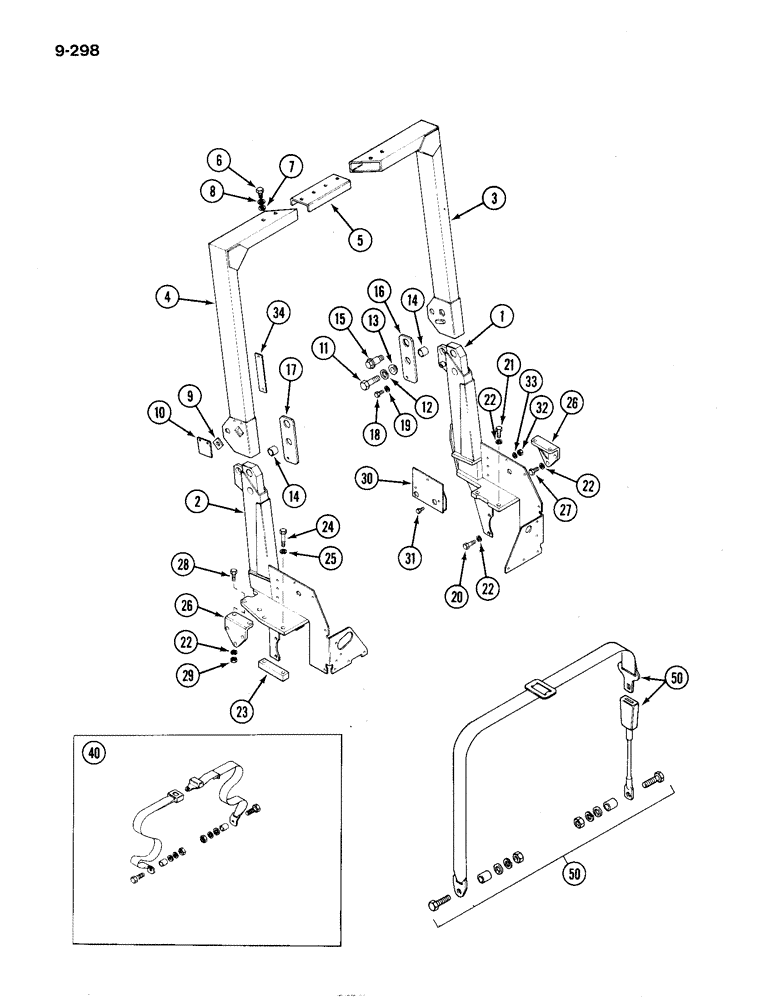

Запчасти Case IH 1194 (9-298) - TWO POST ROLL OVER PROTECTIVE STRUCTURE, FOLDING, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

K305196

FRAME

ASSEMBLY - lower left

1шт.

2

K305200

FRAME

ASSEMBLY - lower right

1шт.

3

K305205

FRAME

ASSEMBLY - upper left

1шт.

4

K305207

FRAME

ASSEMBLY - upper right

1шт.

5

K305175

CHANNEL

- left to right, upper frames

1шт.

6

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

4шт.

7

K626686

WASHER

- 1/2 inch

4шт.

8

K626345

LOCK WASHER

WASHER - lock, 1/2 inch, Includes: Ref. 9 & 10

4шт.

9

K305170

NUT

- special, 1 inch UNF

2шт.

10

K305209

PLATE

- nut retainer

2шт.

11

113-907

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- 1 inch UNC x 3-1/4 inch

2шт.

12

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

13

K305218

BUSHING

COLLAR - special

2шт.

14

K305221

BUSHING

SPACER - lower frame assembly

2шт.

15

K305178

BOLT

- special locking

2шт.

16

K305219

PLATE

- stop, left-hand

1шт.

17

K305220

PLATE

- stop, right-hand

1шт.

18

K650679

BOLT

- M12 x 25 mm

2шт.

19

K651830

WASHER

- lock, M12

2шт.

20

K600885

BOLT

- 1/2 inch UNC x 2 inch

4шт.

21

K600895

BOLT

- 1/2 inch UNC x 1-1/2 inch

4шт.

22

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

10шт.

23

K305167

PLATE

SPACER -, Serial Range: frame-reduction

2шт.

24

K601366

BOLT

- 5/8 inch UNC x 3-1/2 inch

4шт.

25

K19485

WASHER

- lock, 5/8 inch

4шт.

26

K305183

BRACKET

-, Serial Range: frame-reduction

2шт.

27

K600895

BOLT

- 1/2 inch UNC x 1-1/2 inch

6шт.

28

K600904

BOLT

- 1/2 inch UNC x 1-3/4 inch

4шт.

29

280431

NUT,1/2"-13, G5

4шт.

22

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

10шт.

30

K311173

BRACKET

- manual box

1шт.

31

K650643

BOLT

- M8 x 25 mm (Standard rear fenders)

2шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8 (Low profile rear fenders)

1шт.

32

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

33

K651848

WASHER

- M8

2шт.

34

K311297

SPACER

- rubber, Serial Range: frame-fender

2шт.

40

REF

INSTRUCTION

BELT - seat safety, 2 inch wide, See Figure 9-264

1шт.

50

REF

INSTRUCTION

SEAT BELT AND FIXINGS - 2 inch wide (Replaces A160404), See Figure 9-264

1шт.
