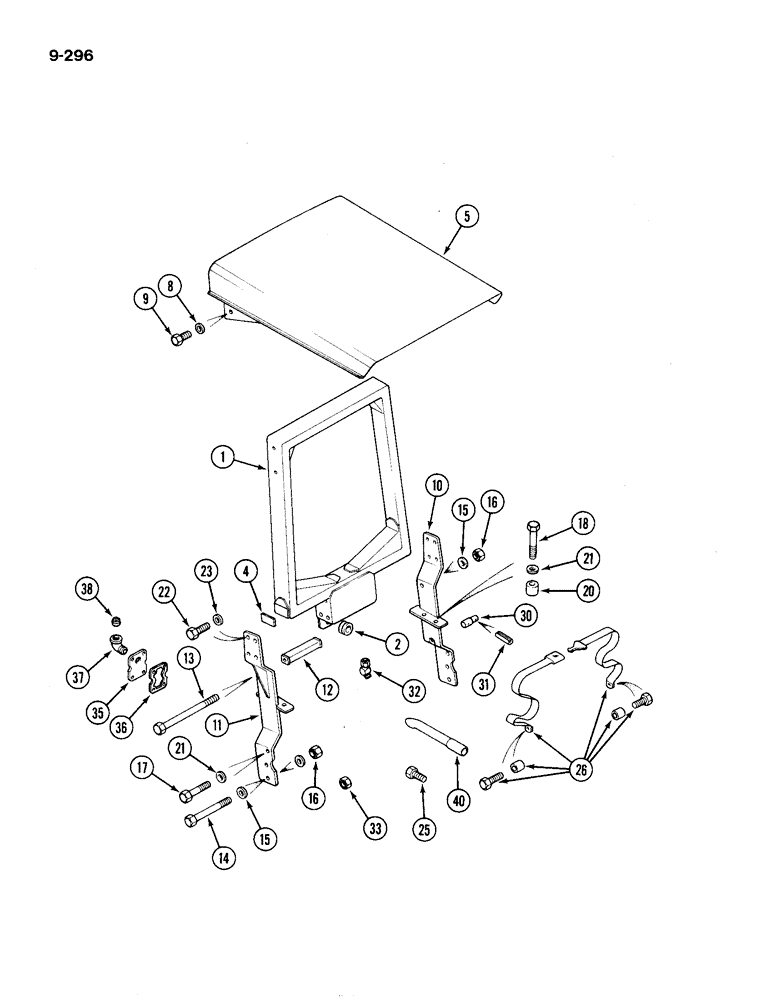

Запчасти Case IH 1194 (9-296) - TWO POST ROPS, (NORTH AMERICA ONLY) (09) - CHASSIS/ATTACHMENTS

A164477

FRAME

ROPS ASSEMBLY - two post, Includes: Ref. 1 - 4

1шт.

1

A169236

FRAME

ROLL BAR ASSEMBLY - upper, Includes: Ref. 2 - 4

1шт.

2

A149221

RETAINER

- coupling, breakaway

4шт.

A169246

DECAL

- caution, seat (Not Shown)

1шт.

4

A169138

PAD

- bumper, rubber

2шт.

5

A164478

TOP

CANOPY - ROPS

1шт.

8

95-8

WASHER,1/2"

- flat, 1/2 x 1-1/4 x 7/64 inch (13 x 32 x 3 mm)

4шт.

9

13-8

BOLT

- hex, 1/2 NC x 1 inch

4шт.

10

A169233

MOUNTING PARTS

LEG - mounting, LH

1шт.

11

A169234

MOUNTING PARTS

LEG - mounting, RH

1шт.

12

A169235

TOOL

BRACE - leg

1шт.

13

26-12176

BOLT,Hex, 3/4" - 10 x 11", Gr 8

- hex, 3/4 NC x 11 inch

1шт.

14

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch

2шт.

15

196-35

WASHER,15/16" x 1 3/4" x .134", HDN

- flat, 15/16 x 1-3/4 x 5/32 inch (24 x 44 x 4 mm)

3шт.

16

129-572

NUT,3/4"-10, G8

3шт.

17

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch

4шт.

18

26-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

- hex, 1/2 NC x 3-3/4 inch

4шт.

20

A169437

SPACER

- mounting

2шт.

21

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 5/32 inch (14 x 27 x 4 mm)

8шт.

22

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch

8шт.

23

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch (17 x 33 x 5 mm)

8шт.

25

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex, 7/16 NC x 1-3/4 inch

11шт.

26

REF

INSTRUCTION

BELT - seat, 2 inch wide, See Figure 9-264

1шт.

30

A169240

FITTING

ADAPTER - lever, PTO

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

ASSEMBLY - 45 degree swivel, 5/8 tube 7/8-14 inch thread

4шт.

33

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head pipe, 1 inch PT

1шт.

35

A169238

PLATE

- cover, ramshaft

1шт.

36

K909558

GASKET,1.59mm Thk

- cover plate

1шт.

37

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 90 degree street, 1-1/4 inch PT

1шт.

38

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head pipe, 1-1/4 inch PT

1шт.

40

A169132

MUFFLER

EXTENSION - muffler

1шт.
