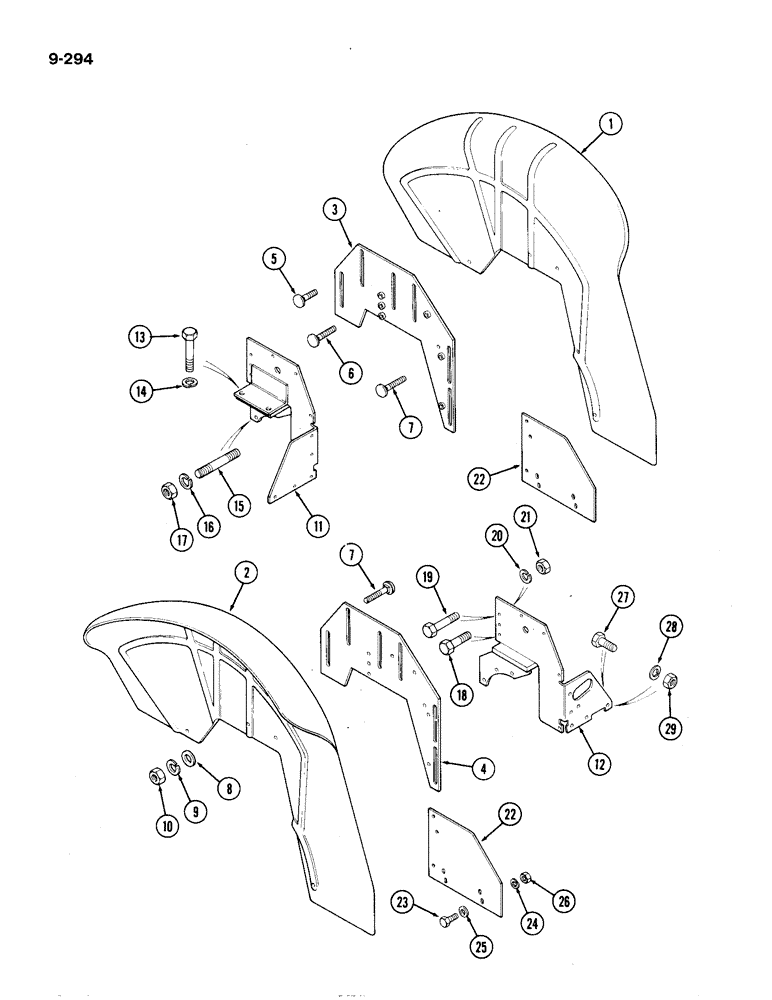

Запчасти Case IH 1194 (9-294) - REAR FENDERS AND MOUNTINGS, LOW PROFILE SPECIAL, P.I.N. 11039983 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K207985

FENDER

- rear LH

1шт.

2

K207986

FENDER

- rear RH

1шт.

3

K308496

PLATE

ADAPTER - fender LH

1шт.

4

K308497

PLATE

ADAPTER - fender RH

1шт.

5

K658946

BOLT

- round head square neck, M10 x 40 mm

8шт.

6

K658947

BOLT

- round head square neck, M10 x 50 mm

2шт.

7

K658948

BOLT

- round head square neck, M10 x 60 mm

2шт.

8

K651779

WASHER

- 10 mm

12шт.

9

K651849

WASHER

- lock, 10 mm

12шт.

10

100016

NUT,M10 x 1.5, Cl 8

12шт.

11

K306457

SUPPORT

BRACKET - support, LH

1шт.

12

K306474

SUPPORT

BRACKET - support, RH

1шт.

13

K600885

BOLT

- axle housing, 1/2 UNC x 2 inch

4шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

15

K608426

STUD

- 1/2 UNC x 2-1/2 inch

6шт.

16

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

17

K607004

NUT

- hex, 1/2 inch UNC

6шт.

18

K650644

BOLT

- M8 x 30 mm

11шт.

19

K650646

BOLT

- M8 x 40 mm

1шт.

20

K651848

WASHER

- lock, 8 mm

14шт.

21

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.

22

K308690

GUARD

- tire

2шт.

23

K650641

SCREW

BOLT - M8 x 16 mm

4шт.

24

K651848

WASHER

- lock, 8 mm

2шт.

25

K651778

WASHER

- 8 mm

2шт.

26

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

32шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

6шт.

28

K651848

WASHER

- lock, 8 mm

6шт.

29

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.
