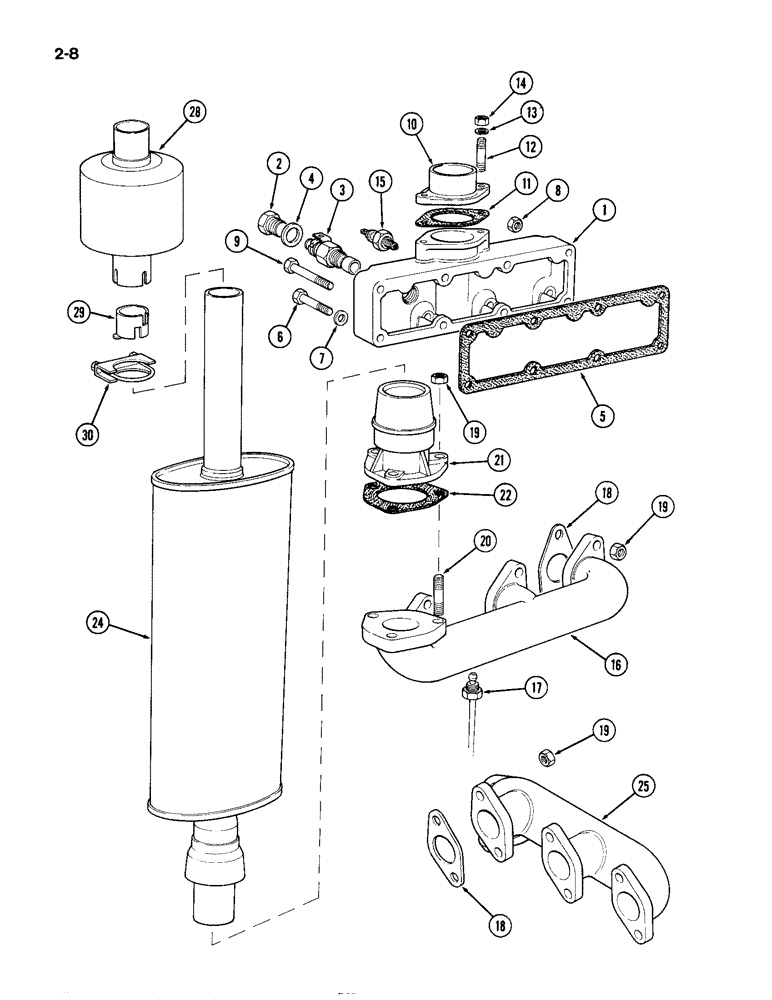

Запчасти Case IH 1194 (2-08) - MANIFOLDS AND MUFFLER (02) - ENGINE

1

K947257

MANIFOLD

- air inlet

1шт.

2

K619528

PLUG

- 7/8 inch UNF (tractor without Thermostart)

1шт.

3

K928523

GLOW PLUG

THERMOSTART

1шт.

4

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

- sealing, 7/8 inch (22 mm)

1шт.

5

K907911

GASKET

- inlet

1шт.

6

K600209

BOLT

- 5/16 UNC x 2 inch

6шт.

7

K19471

WASHER

- 5/16 inch ( 8 mm)

8шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

9

K600213

BOLT

- 5/16 UNC x 2-1/2 inch

1шт.

10

K200948

FLANGE

- inlet

1шт.

11

K947258

GASKET

- inlet

1шт.

12

K608102

STUD

- 5/16 UNC x 1-1/4 inch

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

15

K201313

SWITCH

- vacuum

1шт.

16

K907910

MANIFOLD

- vertical exhaust

1шт.

17

K204812

PIPE

- exhaust manifold drain

1шт.

18

K907344

MANIFOLD GASKET

- exhaust

3шт.

19

280136

NUT,3/8"-16, G8

9шт.

20

K608238

STUD

- 3/8 UNC x 1-9/16 inch (manual steering)

3шт.

20

K608254

STUD

- 3/8 UNC x 2-3/8 inch (power steering)

3шт.

21

K954283

FLANGE

- exhaust

1шт.

22

K912441

GASKET

- exhaust flange

2шт.

24

K304289

MUFFLER

(without cab)

1шт.

24

K304290

MUFFLER

(with cab)

1шт.

25

K914087

MANIFOLD ASSY

MANIFOLD - downswept exhaust, See Figure 2-10

1шт.

A176171

MUFFLER

ATTACHMENT - spark arrestor (North America only), Includes: Ref. 28 - 30

1шт.

28

A135428

ARRESTER

ARRESTOR - spark

1шт.

29

A135451

ADAPTER

-, Serial Range: arrestor-muffler

1шт.

30

A135474

CLAMP

-, Serial Range: arrestor-muffler

1шт.
