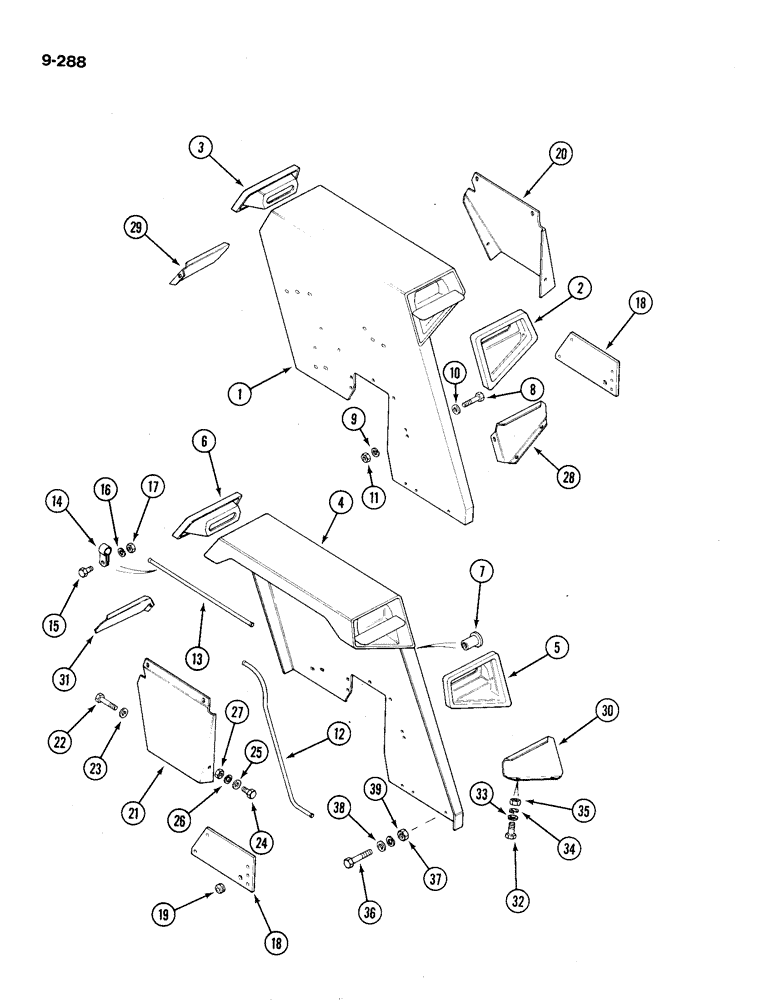

Запчасти Case IH 1194 (9-288) - REINFORCED REAR FENDERS, TRACTORS WITHOUT CAB, P.I.N. 11039983 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K301720

FENDER

- full, left-hand

1шт.

2

K300413

MOLDING

MOULDING - front, left-hand fender

1шт.

3

K300422

MOLDING

MOULDING - rear, left-hand fender

1шт.

4

K301719

FENDER

- full, right-hand

1шт.

5

K300405

MOLDING

MOULDING - front, right-hand fender

1шт.

6

K300405

MOLDING

MOULDING - rear, right-hand fender

1шт.

7

K692205

INSERT

- fender, M8

6шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

12шт.

9

K651848

WASHER

- lock, 8 mm

12шт.

10

K651778

WASHER

- 8 mm

12шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

12шт.

12

K304809

LEVER

TUBE - wiring harness, rear lamp

2шт.

13

K301785

CABLE

TUBE - wiring harness, front lamp

2шт.

14

K621688

CLIP

-, Serial Range: tube-fender

8шт.

15

K650640

BOLT

- M8 x 14 mm

4шт.

16

K651848

WASHER

- lock, 8 mm

4шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

18

K301733

COVER

PLATE - cover

2шт.

19

K627726

GROMMET

- cover plate, 7/8 inch

2шт.

20

K301716

GUARD

SHIELD - mud, left-hand fender

1шт.

21

K301717

GUARD

SHIELD - mud, right-hand fender

1шт.

22

K650649

BOLT

- M8 x 55 mm

4шт.

23

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- special, 8 mm

4шт.

24

K650641

SCREW

BOLT - M8 x 16 mm

4шт.

25

K651778

WASHER

- 8 mm

4шт.

26

K651848

WASHER

- lock, 8 mm

4шт.

27

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

28

K301780

PLATE

- front, left-hand fender

1шт.

29

K301782

PLATE

- rear, left-hand fender

1шт.

30

K301779

PLATE

- front, right-hand fender

1шт.

31

K301781

PLATE

- rear, right-hand fender

1шт.

32

K650625

BOLT

- M6 x 12 mm

4шт.

32

K655629

BOLT

- M6 x 20 mm

8шт.

33

K651777

WASHER

- 6 mm

12шт.

34

K651847

WASHER, LOCK

WASHER - lock, 6 mm

12шт.

35

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.
