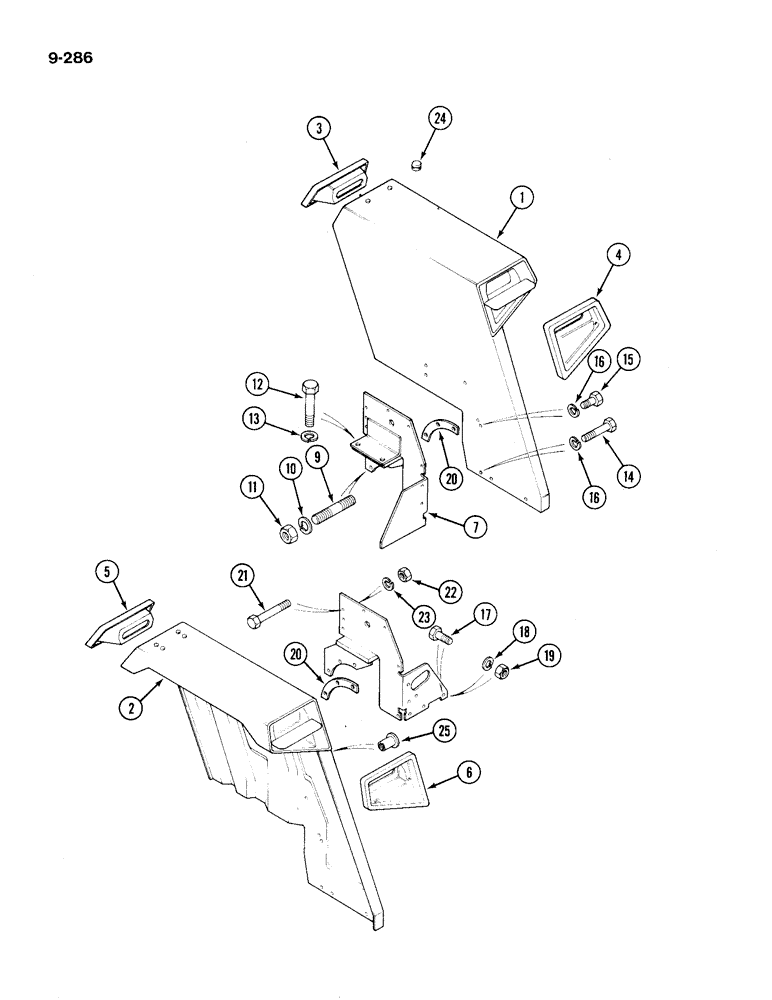

Запчасти Case IH 1194 (9-286) - STANDARD REAR FENDERS AND MOUNTINGS, TRACTORS WITHOUT CAB, P.I.N. 11039983 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K300401

FENDER

- full, left-hand

1шт.

2

K300403

FENDER

- full, right-hand

1шт.

3

K300422

MOLDING

MOULDING - rear, left-hand

1шт.

4

K300413

MOLDING

MOULDING - front, left-hand

1шт.

5

K300405

MOLDING

MOULDING - rear, right-hand

1шт.

6

K300423

MOLDING

MOULDING - front, right-hand

1шт.

7

K306457

SUPPORT

- left-hand fender

1шт.

8

K306474

SUPPORT

- right-hand fender

1шт.

9

K608426

STUD

- 1/2 UNC x 2-1/2 inch

6шт.

10

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

11

K607004

NUT

- 1/2 inch UNC

6шт.

12

600885

BOLT - 1/2 UNC x 2 inch

4шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

14

K655649

BOLT

- M8 x 40 mm

4шт.

15

K655644

BOLT

- M8 x 20 mm

8шт.

16

K651848

WASHER

- lock, 8 mm

6шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

10шт.

18

K651848

WASHER

- lock, 8 mm

10шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

10шт.

20

K300697

BUSHING

SPACER - support

2шт.

21

K654047

SCREW

BOLT - M8 x 45 mm

2шт.

22

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

23

K651848

WASHER

- lock, 8 mm

2шт.

24

K627713

PLUG

- fender, left-hand

4шт.

25

K692205

INSERT

- fender, M8

6шт.
