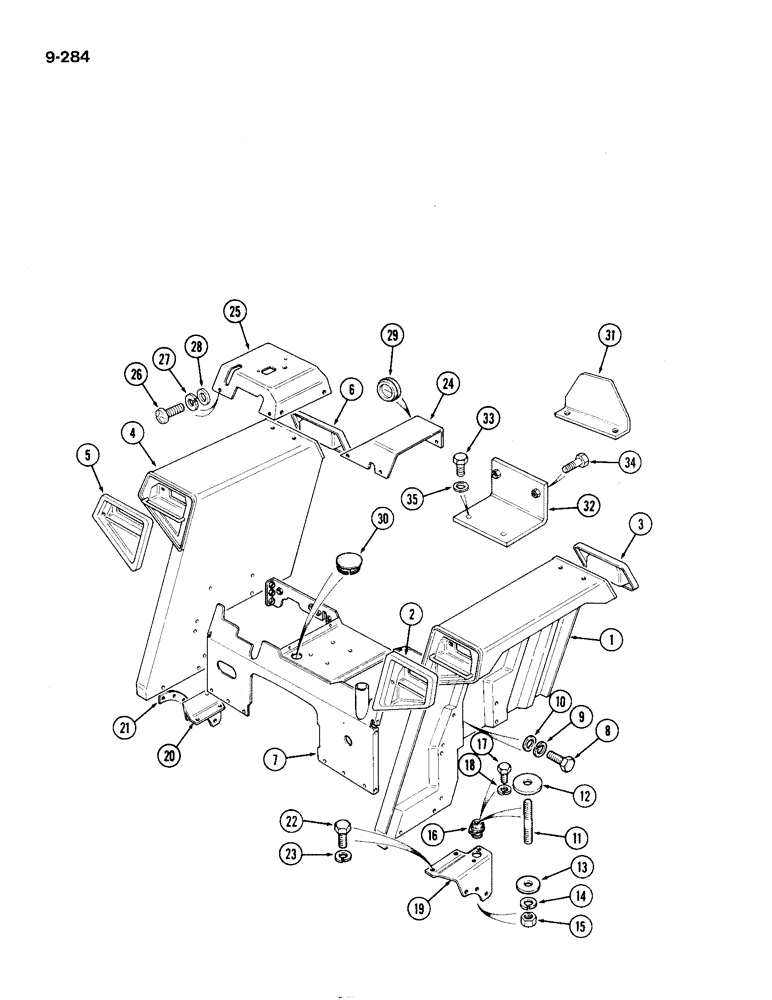

Запчасти Case IH 1194 (9-284) - REAR AXLE COVER AND FULL FENDERS, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11039983 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K300401
FENDER
- full, left-hand
1шт.
2
K300413
MOLDING
MOULDING - rubber, front, left-hand fender
1шт.
3
K300422
MOLDING
MOULDING - rubber, rear, left-hand fender
1шт.
4
K300403
FENDER
- full, right-hand
1шт.
5
K300423
MOLDING
MOULDING - rubber, front, right-hand fender
1шт.
6
K300405
MOLDING
MOULDING - rubber, rear, right-hand fender
1шт.
7
K300985
SHAFT
COVER - axle (tractors with independent clutch)
1шт.
8
K655646
BOLT
- M8 x 24 mm
12шт.
9
K651848
WASHER
- lock, 8 mm
12шт.
10
K651778
WASHER
- 8 mm
12шт.
11
K608245
STUD
- 3/8 UNC x 3 inch
2шт.
12
K627465
WASHER
- 10 mm, special
2шт.
13
K627464
WASHER
- 10 mm, special
2шт.
14
K19482
SPRING WASHER
WASHER - lock, 3/8 inch
2шт.
15
280136
NUT,3/8"-16, G8
2шт.
16
K300649
BLOCK
RUBBER - mounting
2шт.
17
K650627
BOLT,M6 x 16mm
- M6 x 16 mm
4шт.
18
K651847
WASHER, LOCK
WASHER - lock, 6 mm
4шт.
19
K300695
SUPPORT
BRACKET - left-hand
1шт.
20
K300696
SUPPORT
BRACKET - right-hand
1шт.
21
K300697
BUSHING
SPACER - bracket
2шт.
22
K603104
SCREW
BOLT - 1/2 UNC x 1 inch
4шт.
23
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
4шт.
24
K300992
SHAFT
COVER - left-hand (full fender)
1шт.
24
K301510
SHAFT
COVER - left-hand (orchard fenders)
1шт.
24
K300996
SHAFT
COVER - left-hand (with ROPS)
1шт.
25
K300995
COVER
- right-hand
1шт.
25
K300999
COVER
- right-hand (with ROPS)
1шт.
26
K655646
BOLT
- M8 x 24 mm
12шт.
27
K651848
WASHER
- lock, 8 mm
12шт.
28
K651778
WASHER
- 8 mm
12шт.
29
K627770
GROMMET
- left-hand cover
1шт.
30
K628015
PLUG
- plastic, 45 mm
1шт.
31
K302725
BRACKET
- SMV emblem
1шт.
32
K301924
BRACKET
- rear axle housing
1шт.
33
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
34
K655648
BOLT
- M8 x 35 mm
2шт.
35
K19482
SPRING WASHER
WASHER - 3/8 inch (10 mm)
2шт.
Выбрано товаров: 38
