Запчасти Case IH 1194 (9-276) - DECALS - SAFETY AND INSTRUCTIONAL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

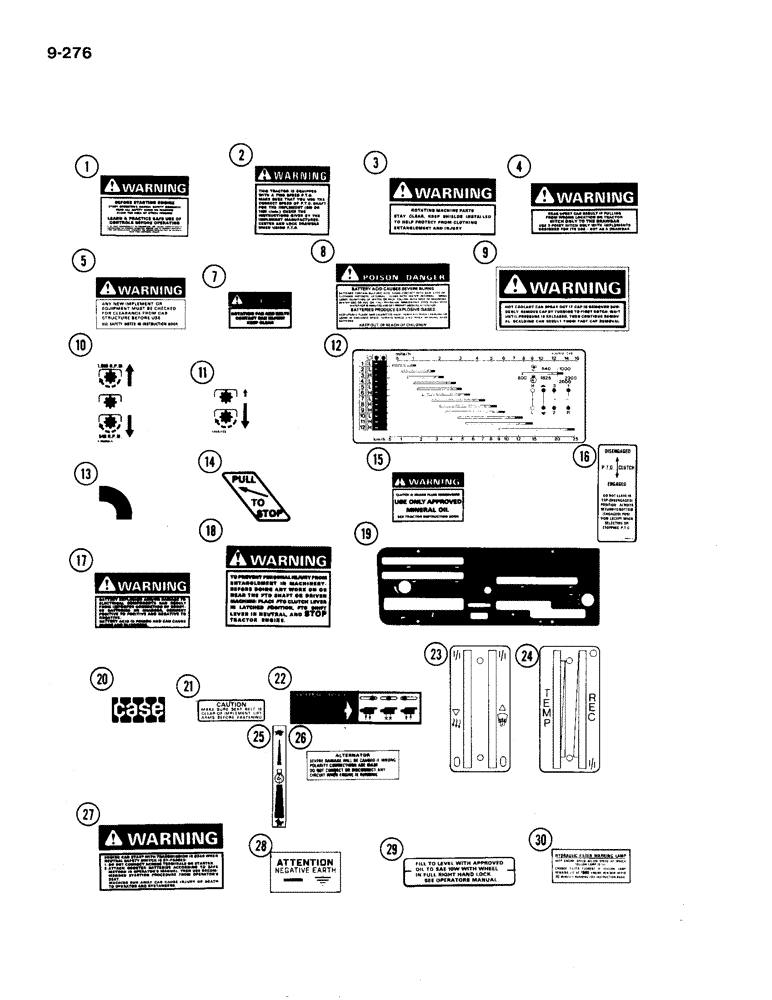

Схема запчастей Case IH 1194 - (9-276) - DECALS - SAFETY AND INSTRUCTIONAL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
24
19
11
25
1
16
12
9
10
28
23
20
7
2
15
14
3
26
29
22
5
8
13
21
30
18
27
17
4

Артикул

Название

Примечание

Количество

1

K953244

DECAL

- engine starting warning

1шт.

2

K203386

DECAL

- multi speed PTO warning

1шт.

3

K953240

DECAL

- rotating machinery warning

1шт.

4

K953241

DECAL

- hitch warning

1шт.

5

K952971

DECAL

- implement warning

1шт.

7

K953239

DECAL

- fan warning

2шт.

8

K953573

DECAL

- warning, battery

1шт.

9

K953573

DECAL

- cooling system warning

1шт.

10

K952559

DECAL

- multi-speed PTO

1шт.

11

K948343

DECAL

- single-speed PTO

1шт.

12

K307612

DECAL

- travel speed chart

1шт.

13

K953665

DECAL

- starter switch

1шт.

14

K302557

DECAL

- engine stop control

1шт.

15

K203756

DECAL

- brake and clutch fluid

1шт.

16

K950497

DECAL

- PTO clutch operation, independent

1шт.

17

K953243

DECAL

- battery

1шт.

18

K200319

DECAL

- PTO warning

1шт.

19

K307910

DECAL

- console, multi-speed PTO

1шт.

19

K307909

DECAL

- console, single-speed PTO

1шт.

20

321-5040

EMBLEM

DECAL - Case mark

2шт.

21

K945069

DECAL

- warning, seat belt

1шт.

22

K952540

DECAL

- live take-off controls

1шт.

23

K303585

DECAL

- heater control, right-hand

1шт.

24

K303586

DECAL

- heater control, left-hand

1шт.

25

K205612

DECAL

- engine speed control

1шт.

26

K947548

DECAL

- alternator

1шт.

27

K953242

DECAL

- starter motor

1шт.

28

K917425

PRODUCT GRAPHIC

DECAL - negative earth

1шт.

29

K204091

DECAL

- oil reservoir, power steering

1шт.

30

K921368

DECAL

- hydraulic filter

1шт.

Выбрано товаров: 30
