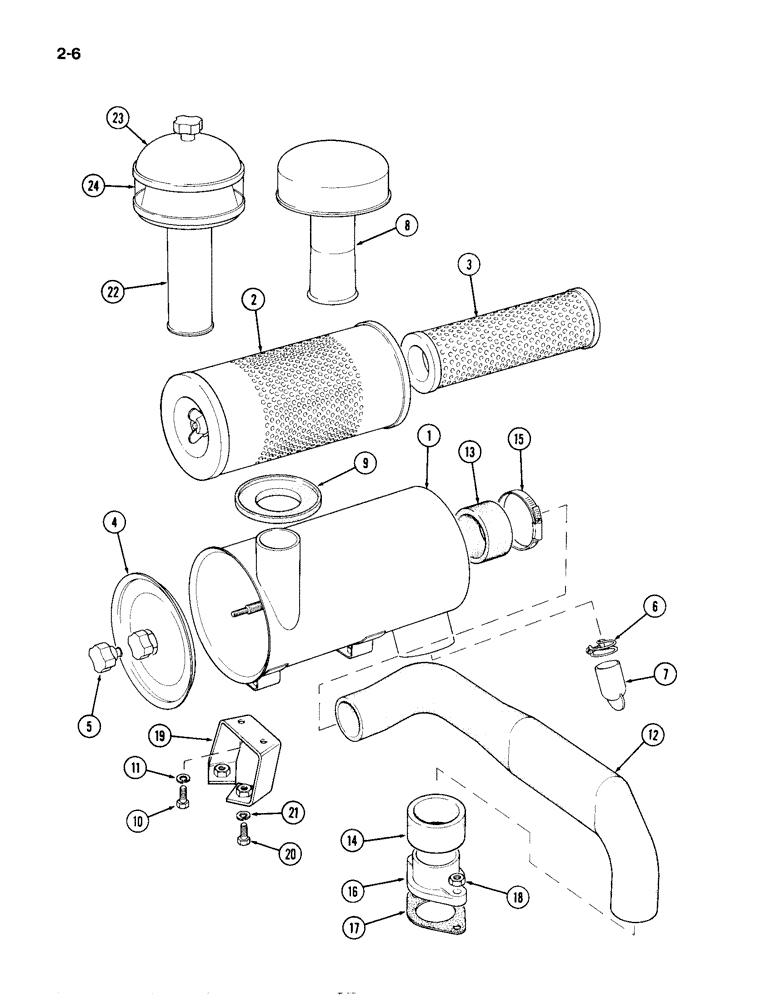

Запчасти Case IH 1194 (2-06) - AIR CLEANER (02) - ENGINE

1

K200296

CLEANER

- engine air (through hood inlet), Includes: Ref. 2 - 7

1шт.

1

K308826

CLEANER

- engine air (under hood inlet), Includes: Ref. 2 - 7

1шт.

2

K200379

FILTER, ELEMENT

ELEMENT - air cleaner, main

1шт.

The wing nut that goes with this filter is P/N K261051.

1шт.

3

K200380

FILTER, ELEMENT

ELEMENT - air cleaner, safety

1шт.

4

K260309

PLATE

AND NUT - body end (Coopers), Includes: Ref. 5

1шт.

5

K965727

NUT

- end plate, hand

1шт.

6

K622026

CLAMP

- dust valve

1шт.

7

K945042

VALVE

- air cleaner, dust

1шт.

8

K201312

CAP

- air cleaner stack

1шт.

9

K204811

SEAL

RING - stack cap sealing

1шт.

10

K655646

BOLT

- M8 x 24 mm

4шт.

11

K651848

WASHER

- lock, 8 mm

4шт.

12

K200989

TUBE,2.25" OD

PIPE - air cleaner to manifold

1шт.

13

K201315

CONNECTOR, ELEC

HOSE - 2-1/4 x 1-3/8 inch (57 x 35 mm)

1шт.

14

K201315

CONNECTOR, ELEC

HOSE - 2-1/4 x 1-3/8 inch (57 x 35 mm) (without cab)

1шт.

14

K201317

HOSE

- 2-1/4 x 5-3/8 inch (57 x 137 mm) (with cab)

1шт.

15

K622032

CLAMP

- hose, 2-3/4 inch (70 mm)

4шт.

16

K200948

FLANGE

- inlet manifold

1шт.

17

K947258

GASKET

-, Serial Range: manifold-flange

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

19

K307818

SUPPORT

BRACKET - support

2шт.

20

K655646

BOLT

- M8 x 245 mm

4шт.

21

K651848

WASHER

- lock, 8 mm

4шт.

K302217

CLEANER

PRE-CLEANER ASSEMBLY - Coopers or Burgess, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - pre-cleaner (order K302217)

1шт.

23

K260902

COVER

ASSEMBLY - cleaner 7-5/16 inch (186 mm) diameter (Coopers)

1шт.

23

K260906

COVER

ASSEMBLY - cleaner 6 inch (152 mm) diameter (Burgess)

1шт.

K261073

PLATE

end, for Burgess cleaner

1шт.

24

K260382

BOWL

- dust, 7-5/16 inch diameter (186 mm) (Coopers)

1шт.

24

K260907

BOWL

- dust, 6 inch diameter (152 mm) (Burgess)

1шт.
