Запчасти Case IH 1194 (9-272) - DECALS (09) - CHASSIS/ATTACHMENTS

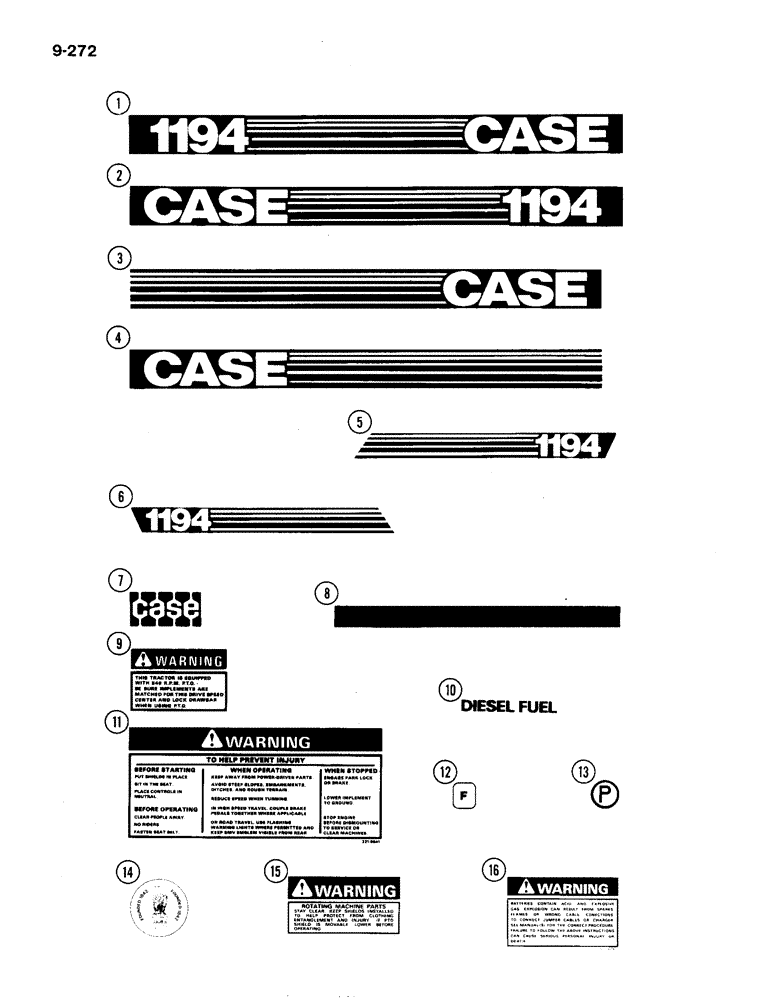

Схема запчастей Case IH 1194 - (9-272) - DECALS (09) - CHASSIS/ATTACHMENTS
15
2
4
5
13
9
10
11
1
7
8
6
14
3
12
16

Артикул

Название

Примечание

Количество

1

K307750

DECAL

- waistrail, right-hand (without cab)

1шт.

2

K307751

DECAL

- waistrail, left-hand (without cab)

1шт.

3

K307774

DECAL

- waistrail, right-hand (with cab) (Not North America)

1шт.

4

K307775

DECAL

- waistrail, left-hand (with cab) (Not North America)

1шт.

5

K307762

DECAL

- fenders, right-hand (with cab) (Not North America)

1шт.

6

K307763

DECAL

- fenders, left-hand (with cab) (Not North America)

1шт.

7

321-5040

EMBLEM

DECAL - Case

2шт.

8

K307627

DECAL

- waistrail, front

1шт.

9

K308622

DECAL

- 540 RPM power take-off

1шт.

10

321-230

DECAL

- diesel fuel

1шт.

11

321-6641

DECAL

- warning instructions

1шт.

12

K308245

DECAL

- remote valve 'float' position

1шт.

13

K308623

DECAL

- handbrake

1шт.

14

K180055

DECAL - steering wheel hub

1шт.

15

321-6715

DECAL

- warning, rotating parts

1шт.

16

321-6714

DECAL

- warning, jump start

1шт.

Выбрано товаров: 16
