Запчасти Case IH 1194 (9-266) - SEAT ASSEMBLY K307863, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

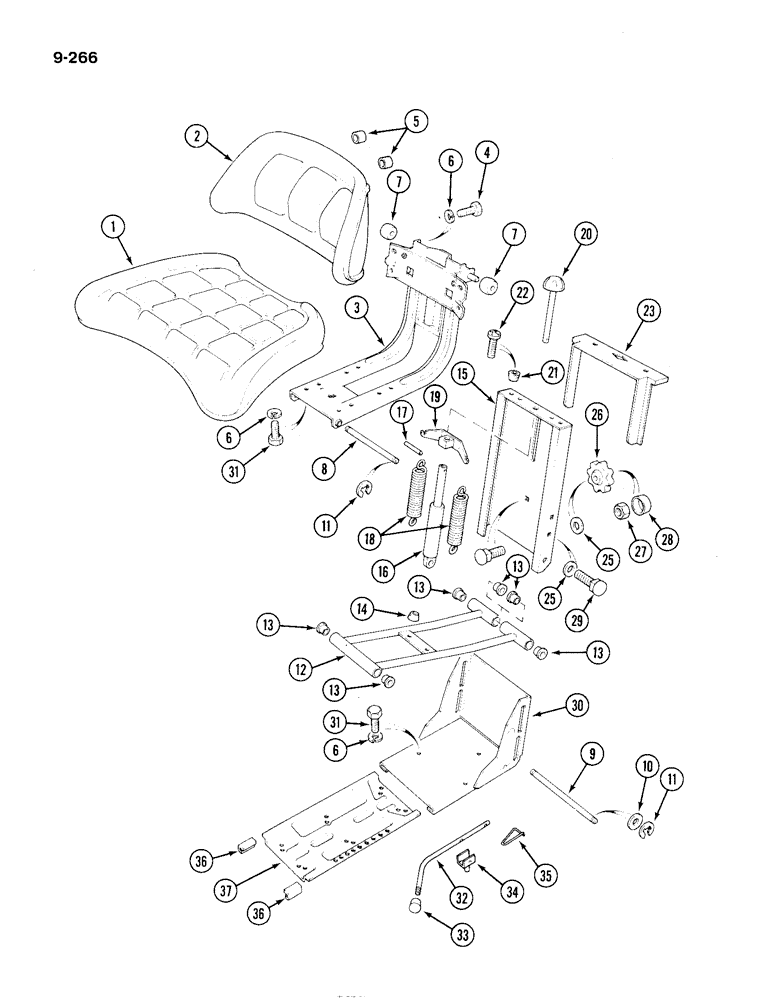

Схема запчастей Case IH 1194 - (9-266) - SEAT ASSEMBLY K307863, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
31
6
18
36
25
1
21
19
12
35
32
37
36
5
25
7
7
15
20
6
22
16
29
13
11
8
33
10
6
34
31
13
14
4
28
9
13
11
23
3
2
13
17
27
13
30
26

Артикул

Название

Примечание

Количество

K307863

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 37

1шт.

1

K262086

CUSHION

- seat

1шт.

2

K262081

CUSHION

BACKREST

1шт.

REF #2 IF YOU NEED THE BACKREST WITH THE WIDER MOUNTING HOLES USE P/N K260655.

1шт.

3

K262087

BRACKET

- support

1шт.

4

K650029

SCREW

BOLT - M8 x 20 mm

4шт.

5

K260637

BUSHING

SPACER - backrest

4шт.

6

K11517

WASHER

- lock, 8 mm

10шт.

7

K260659

ROLLER

- nylon

2шт.

8

K260661

SHAFT

PIN - pivot, front

1шт.

9

K260672

SHAFT

PIN - pivot, rear

1шт.

10

K262090

WASHER

- 12 mm

4шт.

11

K621587

RING, SNAP

RING - snap, 3/8 inch (10 mm) external

4шт.

12

K262084

BEAM

LINK - suspension

1шт.

13

K962431

BUSHING

- nylon

6шт.

14

K262088

STIFFENER

BUFFER - rubber

2шт.

15

K262083

FRAME

- backrest

1шт.

16

K262075

DAMPER

- suspension

1шт.

17

K964818

PIVOT

PIN - 4 x 25 mm

1шт.

18

K262076

SPRING

- suspension

2шт.

19

K262078

SPRING

ANCHOR - spring

1шт.

20

K262074

KNOB

AND SPINDLE - adjuster

1шт.

21

K262077

BACKREST

BUFFER - rubber

2шт.

22

K963472

SCREW

- buffer

2шт.

23

K260668

COVER

- plastic

1шт.

24

K260662

BOLT

- M10 x 35 mm

1шт.

25

K262089

WASHER

- 10 mm

6шт.

26

K260671

KNOB

NUT - hand, M10

1шт.

27

K262071

NUT

- M10

2шт.

28

K260670

CAP

- plastic

1шт.

29

K963470

BOLT

- M10, special

2шт.

30

K262082

FRAME

- base

1шт.

31

K626079

FITTING

BOLT - M8 x 16 mm

6шт.

32

K262080

LEVER

- adjusting, Includes: Ref. 33 - 35

1шт.

33

K260675

KNOB

- adjusting lever

1шт.

34

K262153

FORK

- adjusting lever

1шт.

35

K262073

SPRING

- adjusting lever

1шт.

36

K260657

BRACKET

BLOCK - slider

4шт.

37

K262085

PLATE

- base

1шт.

Выбрано товаров: 39
