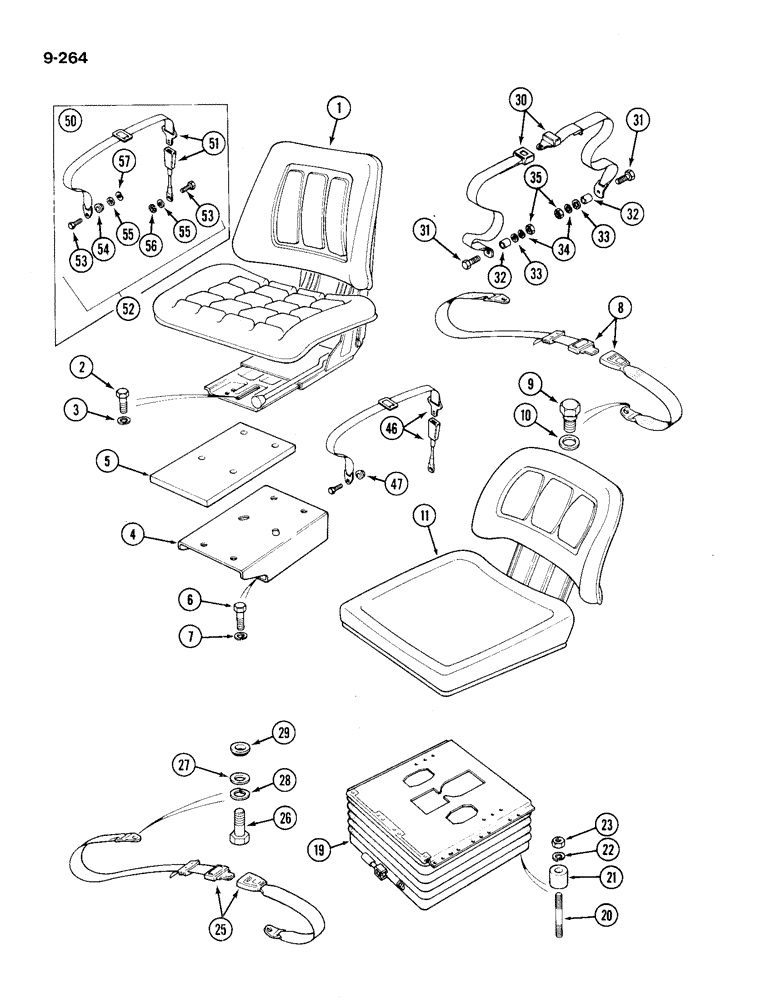

Запчасти Case IH 1194 (9-264) - SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

1

K307863

SEAT

ASSEMBLY - operator (without cab), See Figure 9-266

1шт.

2

K650660

BOLT

- M10 x 25 mm

4шт.

3

K651849

WASHER

- lock, 10 mm

4шт.

4

K308874

SEAT

BRACKET - seat support (without cab) (P.I.N. 11039983 and after)

1шт.

5

K308876

LARGE PLATE

SPACER - seat support

2шт.

6

K602903

SCREW

BOLT - 3/8 UNC x 7/8

4шт.

7

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

UK1596

BELT

ATTACHMENT - seat belt (without cab), Includes: Ref. 8 - 10

1шт.

8

K308365

BELT

- seat, safety, 2 inch wide

1шт.

9

K945348

BOLT

- 7/16 inch UNF, special

2шт.

10

K945349

WASHER

- special

2шт.

K307642

SEAT

ASSEMBLY - operator (with cab), Includes: Ref. 11 & 19

1шт.

11

K307647

SEAT

- operator (See Figure 9-269)

1шт.

19

K301470

SEAT

SUSPENSION ASSEMBLY - seat, See Figure 9-270

1шт.

20

K655110

STUD

- M8 x 50 mm

4шт.

21

K304093

BUSHING

SPACER - seat mounting

4шт.

22

K651848

WASHER

- lock, 8 mm

4шт.

23

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

UK6643

BELT

ATTACHMENT - seat belt (with cab), Includes: Ref. 25 - 29

1шт.

25

K308365

BELT

- seat, safety 2 inch wide

1шт.

26

K613005

SCREW

BOLT - 7/16 UNF x 1-1/4 inch

2шт.

27

K626314

WASHER

- 7/16 inch

2шт.

28

K626480

WASHER

- lock, 7/16 inch

2шт.

29

K309647

BUSHING

SPACER - seat

2шт.

30

A160404

SAFETY BELT

BELT - seat, safety 2 inch wide with ROPS

1шт.

31

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

32

A60907

BUSHING

SPACER - anchor bolt

2шт.

33

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC

2шт.

45

K311835

BELT

SEAT BELT PACK - for K307642 seat assembly (Cab), Includes: Ref. 46 & 47

1шт.

46

K311331

SEAT BELT

BELT - seat safety, 2 inch wide, Includes: Ref. 47

1шт.

47

K262228

KIT

FITTING KIT, Includes: Ref. 47 bush

1шт.

47

K311825

BUSH - belt anchor

1шт.

50

K311834

BELT

SEAT BELT PACK - fork 307863 Seat Assembly (with ROPS and without cab), Includes: Ref. 51 - 57

1шт.

51

K311330

BELT

- seat safety 2 inch wide, Includes: Ref. 52 - 57

1шт.

Ref #51 - Use K308365 Belt, (2) K945348 Bolts & (2) K945349 Washers 01/09/96

1шт.

52

K262227

KIT

FITTING KIT, Includes: Ref. 53 - 57

1шт.

53

K311831

SCREW

2шт.

54

K311832

BUSH - belt anchor

1шт.

55

K311833

WASHER - plain

2шт.

56

K311829

WASHER - star

1шт.

57

K311826

WASHER - wavy

1шт.
