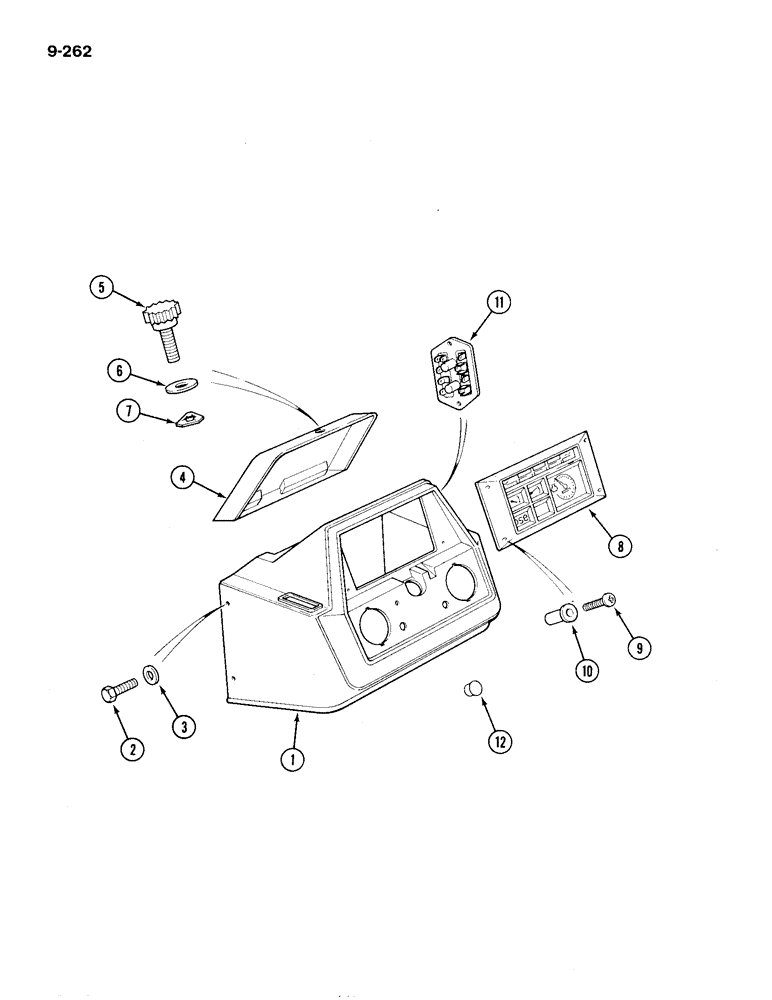

Запчасти Case IH 1194 (9-262) - INSTRUMENT PANEL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307632

PANEL

INSTRUMENT PANEL

1шт.

2

K652509

SCREW,Pan, M6 x 1 x 30mm

- M6 x 30 mm

4шт.

3

K651904

WASHER

- 6 mm

4шт.

4

K307631

COVER

- instrument panel

1шт.

5

K303952

SCREW,M5 x 0.8 x 18mm, Steel

- M5, special

1шт.

6

K651903

WASHER

- special

1шт.

7

K626172

SNAP RING

RETAINER - screw

1шт.

8

REF

INSTRUCTION

INSTRUMENT CLUSTER, See Figure 4-56

1шт.

9

K652506

SCREW

- M5 x 25 mm

4шт.

10

K653092

NUT

INSERT - M5 x 25 mm

4шт.

11

K204610

BOX, FUSE

BOX ASSEMBLY - fuse, See Figure 4-58

1шт.

12

K656783

PLUG

- instrument panel, 11 mm

1шт.
