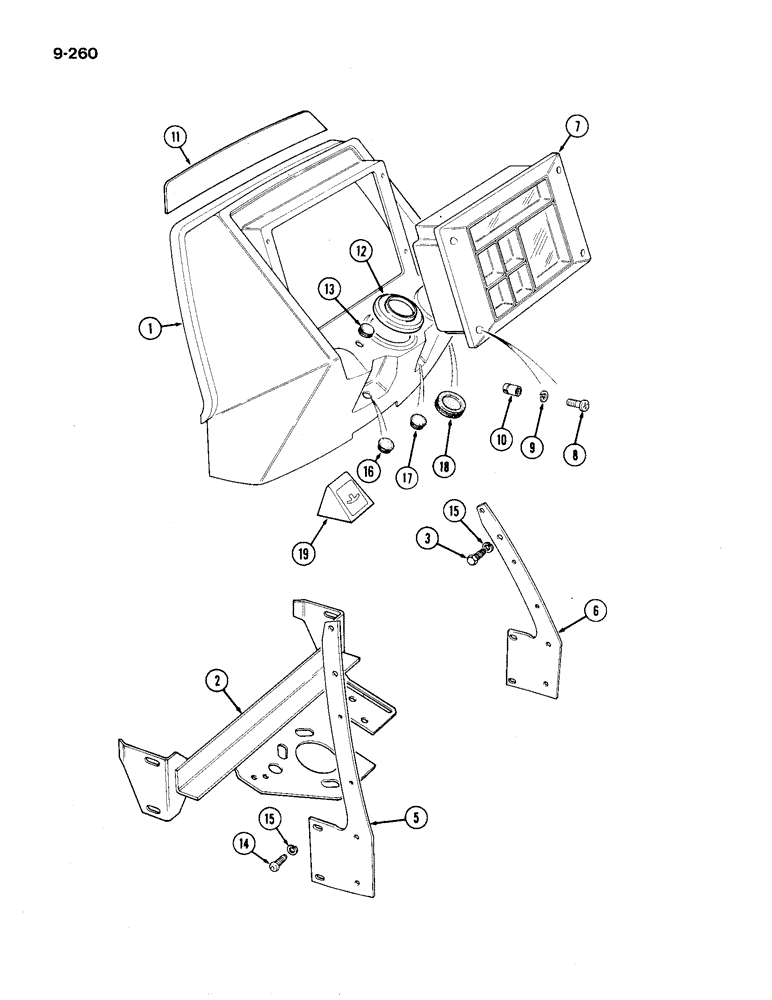

Запчасти Case IH 1194 (9-260) - INSTRUMENT PANEL AND SUPPORTS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K300774

PANEL

- instrument

1шт.

2

K304367

SUPPORT

BRACKET - engine cover rear support

1шт.

3

K624534

SELF-TAP SCREW

SCREW - special, M8

8шт.

5

K304343

PANEL

SUPPORT - instrument panel, left-hand

1шт.

6

K304344

PANEL

SUPPORT - instrument panel, right-hand

1шт.

7

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-56

1шт.

8

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10 mm

4шт.

9

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

10

K652032

INSERT

- M5

4шт.

11

K304518

DECAL

EXTENSION - instrument panel

1шт.

12

K304378

COVER

- steering column

1шт.

13

K627742

GROMMET

PLUG - rubber, instrument panel

1шт.

14

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

- M8 x 20 mm

4шт.

15

K651874

SPRING

WASHER - lock, 8 mm

4шт.

16

K656767

GROMMET

PLUG - hazard switch aperture (North America only)

1шт.

17

K627724

GROMMET

PLUG - indicator switch aperture (North America only)

1шт.

18

K656769

RUBBER

PLUG - flasher/turn signal aperture (North America only)

1шт.

19

K307960

DECAL

SUPPORT - stop control decal (North America only)

1шт.
