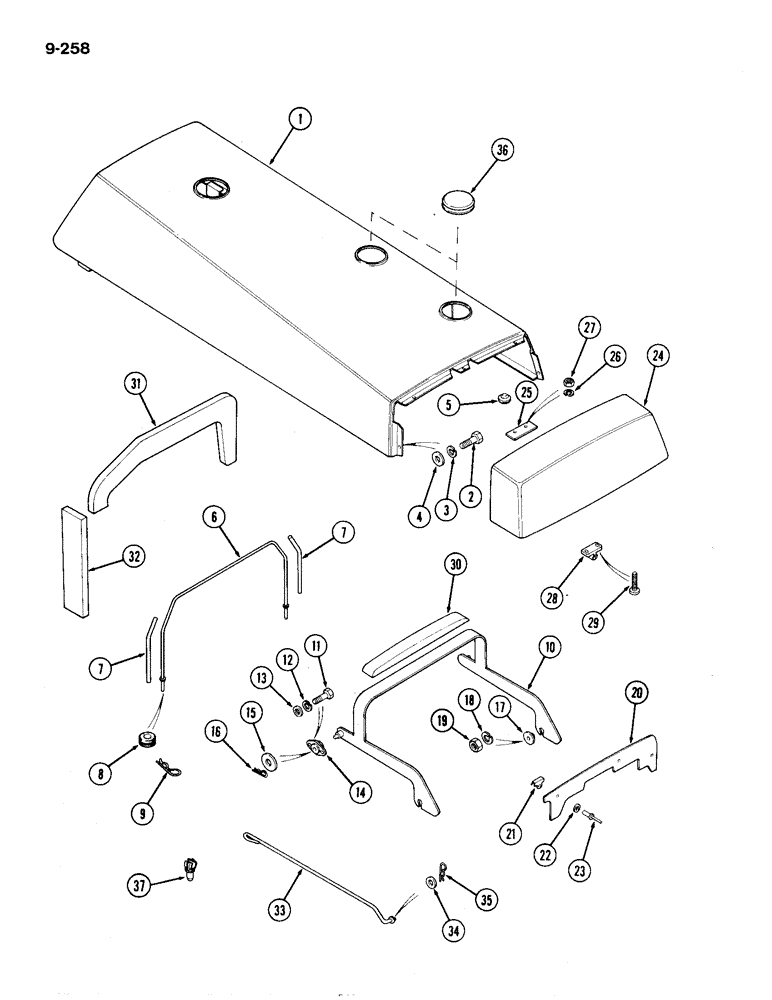

Запчасти Case IH 1194 (9-258) - ENGINE HOOD AND HINGE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K304938
HOOD
- engine (without cab)
1шт.
1
K307730
HOOD
- engine (with cab)
1шт.
2
K624533
SCREW
- self tapping, 8 mm
5шт.
3
K626552
WASHER
- lock, 1/4 inch
5шт.
4
K651778
WASHER
- flat, 8 mm
5шт.
5
K916596
PLUG
- rubber
2шт.
6
K305921
GUIDE
- good (without cab)
1шт.
7
K305949
STRIP
SLIDE - hood guide, rubber (without cab)
2шт.
8
K627718
GROMMET,3/8" ID x 5/8" Groove Dia
- hood guide
2шт.
9
K624870
CLIP
- spring
2шт.
10
K304385
SUPPORT
CROSS MEMBER - hood pivot
1шт.
11
K655629
BOLT
- hex, M6 x 20 mm
4шт.
12
K651847
WASHER, LOCK
WASHER - lock, 6 mm
4шт.
13
K19470
WASHER
- flat, 6 mm
4шт.
14
K300350
LINK
BRACKET - pivot
2шт.
15
K692199
WASHER
- pivot bracket
2шт.
16
K950865
CLIP
- retaining, 1/4 inch
2шт.
17
K205385
BUSHING
SPACER - pivot
2шт.
18
K651849
WASHER
- lock, 10 mm
2шт.
20
K307991
BAFFLE
- radiator (without cab)
1шт.
20
K307986
BAFFLE
- radiator (with cab)
1шт.
21
K657166
CLIP
- retaining
3шт.
22
K626946
WASHER
- retaining clip
3шт.
23
NSS
NOT SOLD SEPARAT
RIVET - clip retainer
3шт.
24
K956250
COVER
- engine hood, upper front
1шт.
25
K304946
PLATE
- catch
1шт.
26
K626340
RING
WASHER - lock, 3/16 inch
2шт.
27
K617299
LOCK NUT
- hex, No. 10 UNF
2шт.
28
K304944
LOCK
CATCH - hood
1шт.
29
K615408
SCREW,Pan, #10 - 32 x 1"
BOLT - hex, No. 10 x 1 inch UNF
2шт.
30
K307943
BAFFLE
- hood
1шт.
31
K307832
STRIP
- sealing, hood, rear (with cab)
1шт.
32
K307834
SEALING STRIP
- sealing, hood, side (with cab)
1шт.
33
K307964
STAY
ROD - support, 550 mm
1шт.
33
K307958
STAY
ROD - support, 330 mm
1шт.
34
K651778
WASHER
- 8 mm
1шт.
35
K950865
CLIP
- spring
1шт.
36
K304967
INSERT
- hood opening (intake and exhaust)
1шт.
37
K657121
CLIP
- support rod (without cab)
1шт.
37
K657161
CLIP
- support rod (with cab)
1шт.
Выбрано товаров: 41
