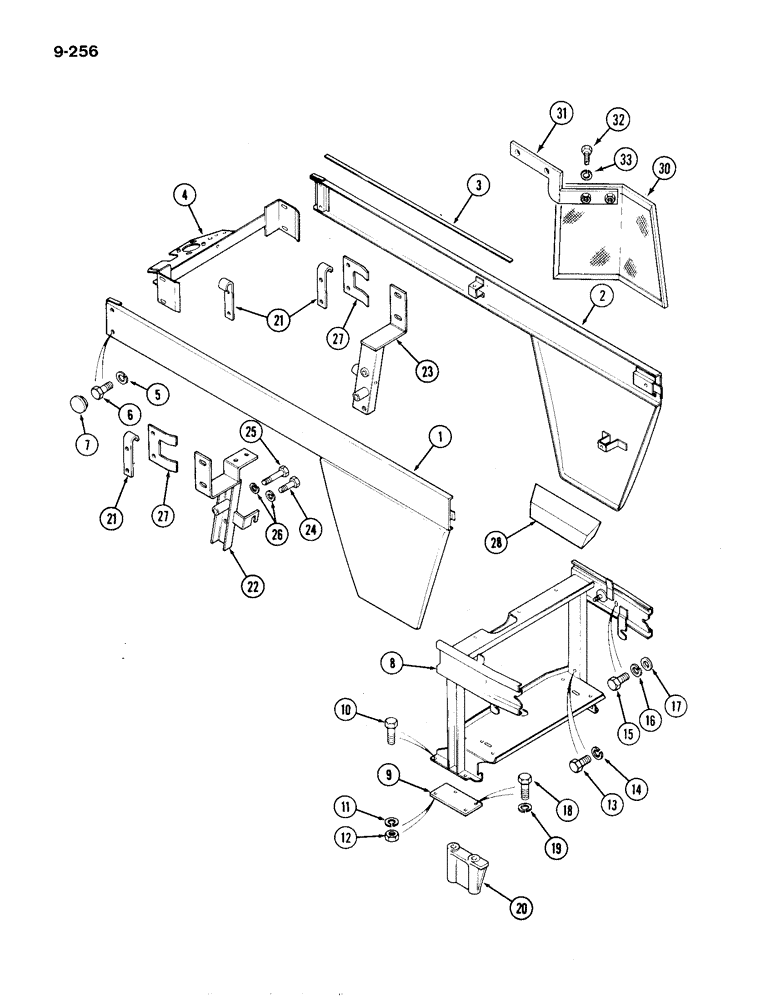

Запчасти Case IH 1194 (9-256) - ENGINE HOOD SIDE FRAME AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

K306580

SLIDE

FRAME - side, hood, RH (without cab)

1шт.

2

K306579

SLIDE

FRAME - side, hood, LH (without cab)

1шт.

1

K306582

SLIDE

FRAME - side, hood, RH (with cab)

1шт.

2

K306581

SLIDE

FRAME - side, hood, LH (with cab)

1шт.

3

K304909

STRIP

- slide, hood

2шт.

4

K304367

SUPPORT

- rear, hood (without cab)

1шт.

5

K651874

SPRING

WASHER - lock, 8 mm

4шт.

6

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

- M8 x 20 mm

4шт.

7

K627992

PLUG

- waistrail, plastic

4шт.

8

K307810

FRAME

- support, front

1шт.

9

K304309

PLATE

- support

2шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

12

280136

NUT,3/8"-16, G8

4шт.

13

K655643

BOLT

- hex, M8 x 18 mm

2шт.

14

K651848

WASHER

- lock, 8 mm

2шт.

15

K655643

BOLT

- hex, M8 x 18 mm

4шт.

16

K651848

WASHER

- lock, 8 mm

4шт.

17

K651778

WASHER

- flat, 8 mm

4шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Without cab) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

18

K600424

SCREW

BOLT - 3/8 UNC x 5 inch (with cab)

4шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

20

K301195

SUPPORT

SPACER - main frame (with cab)

2шт.

21

K307033

NUT

PLATE - nut, M8

2шт.

22

K304551

SUPPORT

- rear, RH (with cab)

1шт.

23

K307880

SUPPORT

- rear, LH (with cab)

1шт.

24

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

2шт.

25

K600406

BOLT

- 3/8 UNC x 1-3/4 inch

2шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

27

K307126

GUIDE

PLATE - guide (with cab)

2шт.

28

K308242

PLATE

SEAL - foam, side panel

2шт.

30

K310573

GUARD

- left-hand (UK only)

1шт.

31

K310575

SUPPORT

BRACKET - guard support

1шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

33

K651848

WASHER

- lock, 8 mm

2шт.
