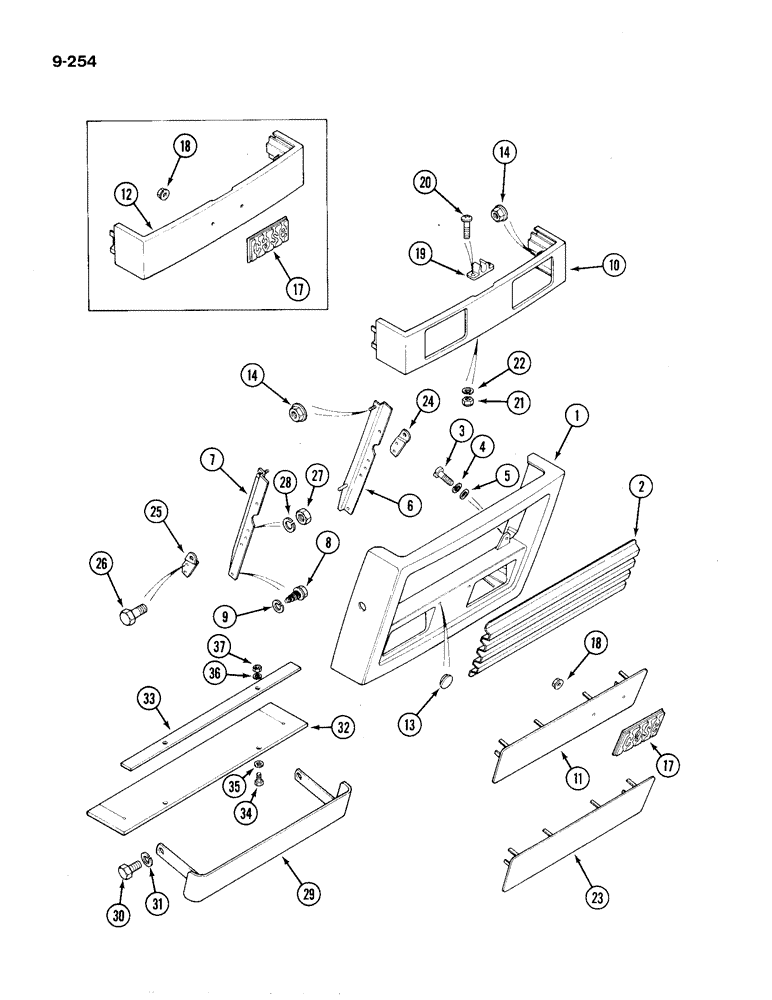

Запчасти Case IH 1194 (9-254) - ENGINE FRONT GRILLE (09) - CHASSIS/ATTACHMENTS

1

K301692

HOOD

FRAME - grille, lower (replaces K300000)

1шт.

2

K308494

GUARD

GRILLE - lower

1шт.

3

K652464

SCREW

- M5 x 16 mm

4шт.

4

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

5

K626946

WASHER

- 5 mm, special

4шт.

6

K304426

SUPPORT

- left-hand

1шт.

7

K304425

SUPPORT

- right-hand

1шт.

8

K624533

SCREW

- self-tapping

6шт.

9

K626552

WASHER

- lock, 8 mm

6шт.

10

K304823

BRACKET

RAIL - waist, front (Lamps in waist rail)

1шт.

11

K308486

PLATE

- blanking, grille (Lamps in waist rail)

1шт.

12

K304347

FRAME

RAIL - waist, front (Lamps below waist rail)

1шт.

13

K627874

PLUG

- headlamp adjusters (Lamps below waist rail)

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Special

4шт.

17

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

18

K659151

PUSH-ON NUT

- 1/4 inch, special

2шт.

19

K304945

FASTENER

CATCH - cover top

1шт.

20

K614946

SCREW,Pan, #10 - 32 x 3/4"

- No. 10 UNF x 3/4 inch

2шт.

21

K617299

LOCK NUT

- self-locking, No. 10 UNF

2шт.

22

K626340

RING

WASHER - lock, 3/16 inch

2шт.

23

K308557

PLATE

- grille (With outboard head lamps) (Not North America) (replaces K302152)

1шт.

24

K302149

BRACKET

- left-hand head lamp (With outboard head lamps) (Not North America)

1шт.

25

K302150

BRACKET

- right-hand head lamp (With outboard head lamps) (Not North America)

1шт.

26

K650641

SCREW

BOLT - M8 x 16 mm (With outboard head lamps) (Not North America)

1шт.

27

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (With outboard head lamps) (Not North America)

4шт.

28

K651848

WASHER

- lock, 8 mm (With outboard head lamps)

4шт.

29

K301302

PLATE

- main frame, tractor (with cab)

1шт.

30

K603302

SCREW

BOLT - 5/8 UNC x 1 inch

2шт.

31

K19485

WASHER

- lock, 5/8 inch

2шт.

32

K308237

BAFFLE

- rubber, main frame

1шт.

33

K308238

BAFFLE

STRIP - clamping, baffle

1шт.

34

K650315

BOLT

- M5 x 16 mm

2шт.

35

K651776

WASHER

- 5 mm

2шт.

36

K651826

WASHER

- lock, 5 mm

2шт.

37

K651505

NUT

- M5

2шт.
