Запчасти Case IH 1194 (9-252) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

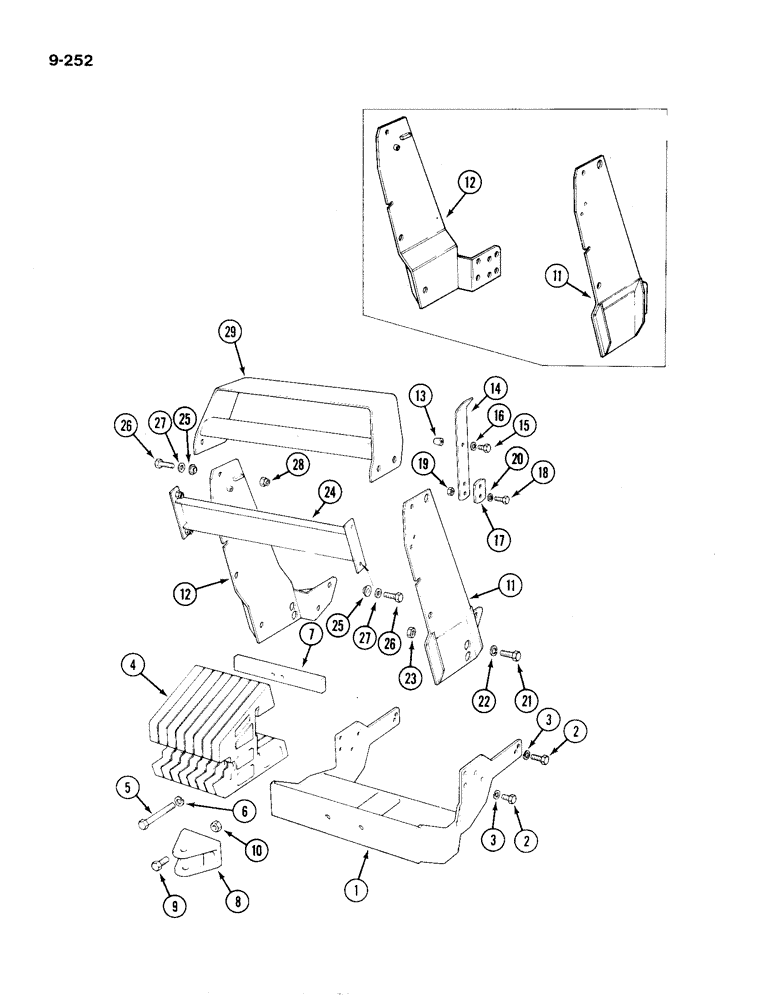

Схема запчастей Case IH 1194 - (9-252) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
27
3
5
8
11
10
9
23
13
17
21
14
24
27
26
12
20
2
22
29
12
3
28
15
6
2
7
26
25
4
25
11
18
16
1
19

Артикул

Название

Примечание

Количество

UK5714

FRAME

ATTACHMENT - ballast, Includes: Ref. 1 - 6

1шт.

1

K306853

FRAME

- support

1шт.

2

K603284

SCREW

BOLT - 5/8 UNC x 2-3/4 inch

2шт.

3

K19485

WASHER

- lock, 5/8 inch

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

K603276

SCREW

BOLT - 5/8 inch UNC x 1-3/4 inch

4шт.

6

K19485

WASHER

- lock, 5/8 inch

4шт.

UK5718

KIT

WEIGHT ATTACHMENT - ballast, Includes: Ref. 7 - 10

1шт.

7

K306858

WEIGHT

- ballast, 33 kg

8шт.

8

K650833

BOLT

- M16 x 330 mm

2шт.

9

K651851

LOCK WASHER

WASHER - lock, 16 mm

4шт.

10

K306859

BAR

- locking

1шт.

UK5721

KIT

BRACKET ATTACHMENT - tow, Includes: Ref. 11 - 14

1шт.

11

K207651

CLEVIS

BRACKET - tow

1шт.

12

K650726

BOLT

- M16 x 55 mm

2шт.

13

K651530

NUT

- M16

2шт.

14

K651851

LOCK WASHER

WASHER - lock, 16 mm

2шт.

UK5478

PACKAGE

GUARD ATTACHMENT - radiator, Includes: Ref. 15 - 33

1шт.

15

K305091

PLATE

- side, left-hand, use with K305092, early tractors

1шт.

16

K305092

PLATE

- side, right-hand, use with K305091, early tractors

1шт.

15

K305145

PANEL

PLATE - side, left-hand, use with K305146, later tractors

1шт.

16

K305146

PANEL

PLATE - side, right-hand, use with K305145, later tractors

1шт.

17

K305085

STOP

PIN - stop

1шт.

18

K305088

STOP

STRAP - spring

1шт.

19

K650657

BOLT

- M10 x 14 mm

1шт.

20

K651849

WASHER

- lock

1шт.

21

K948166

SPRING

PLATE - strap

1шт.

22

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

23

280136

NUT,3/8"-16, G8

2шт.

24

K651849

WASHER

- lock

2шт.

25

K601358

BOLT

- 5/8 UNC x 2-1/4 inch

2шт.

25

K603287

SCREW,5/8" - 11 x 3 1/4"

BOLT - UNC x 3-1/4 inch

2шт.

25

K601355

BOLT

- 5/8 UNC x 7/8 inch

2шт.

26

K19485

WASHER

- lock, 5/8 inch

6шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

6шт.

28

K305064

CHANNEL

BAR - tie

1шт.

29

K305087

BUSHING

- plastic

4шт.

30

K691960

SCREW

BOLT - 1/2 UNC x 1-5/8 inch

6шт.

31

K626686

WASHER

- 1/2 inch (13 mm)

6шт.

32

K607304

NUT

- self-locking, 1/2 inch UNC

2шт.

33

K305065

GUARD

- hood nose

1шт.

Выбрано товаров: 41
