Запчасти Case IH 1194 (9-250) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

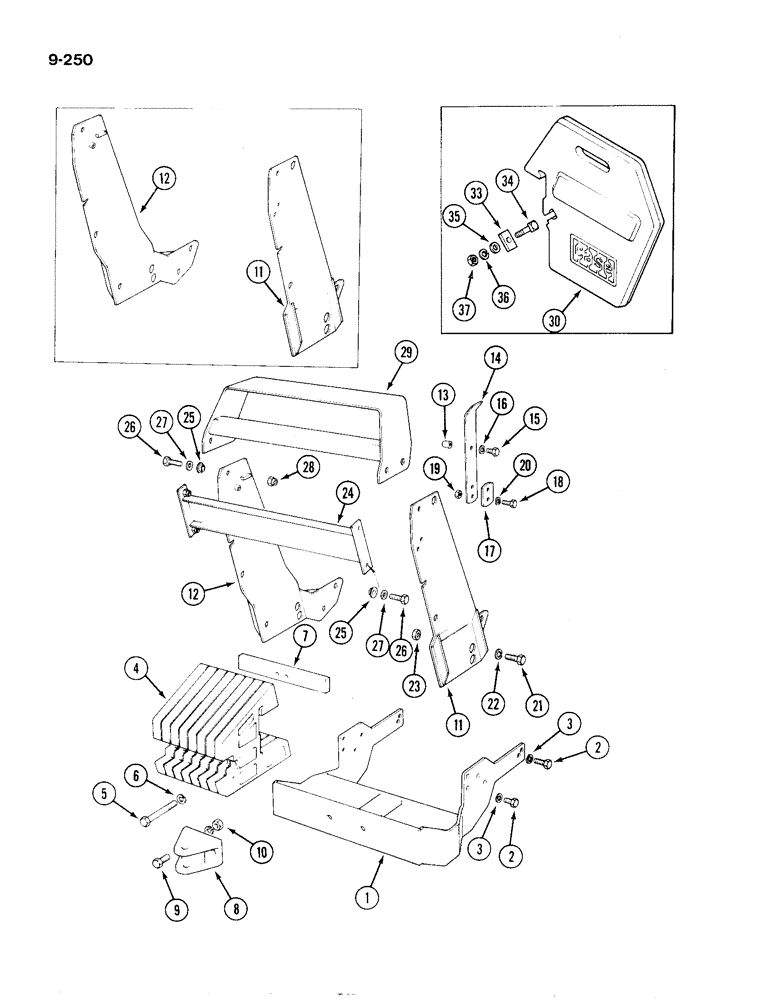

Схема запчастей Case IH 1194 - (9-250) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
2
11
35
18
17
23
15
29
34
30
5
26
13
19
22
4
21
24
28
2
27
3
16
36
7
8
37
12
26
12
27
10
33
25
3
6
20
9
11
1
14
25

Артикул

Название

Примечание

Количество

UK5713

FRAME

ATTACHMENT - ballast, Includes: Ref. 1 - 3

1шт.

1

K306872

FRAME

- support

1шт.

2

K603276

SCREW

BOLT - 5/8 inch UNC x 1-3/4 inch

6шт.

3

K19485

WASHER

- lock, 5/8 inch

6шт.

UK5718

KIT

WEIGHT ATTACHMENT - ballast, Includes: Ref. 4 - 7

1шт.

4

K306858

WEIGHT

- ballast, 33 kg

8шт.

5

K650833

BOLT

- M16 x 330 mm

2шт.

6

K651851

LOCK WASHER

WASHER - lock, 16 mm

4шт.

7

K306859

BAR

LOCKING

1шт.

UK5721

KIT

BRACKET ATTACHMENT - tow, Includes: Ref. 8 - 10

1шт.

8

K207651

CLEVIS

BRACKET - tow

1шт.

9

K650726

BOLT

- M16 x 55 mm

2шт.

10

K651530

NUT

- M16

2шт.

UK5479

KIT

GUARD ATTACHMENT - radiator, Includes: Ref. 11 - 29

1шт.

11

K305070

PLATE

- side, left-hand, use with K305083, early tractors

1шт.

12

K305083

PLATE

- side, right-hand, use with K305070, early tractors

1шт.

11

K305149

LARGE PLATE

PLATE - side, left-hand, use with K305150, later tractors

1шт.

12

K305150

LARGE PLATE

PLATE - side, right-hand, use with K305149, later tractors

1шт.

13

K305085

STOP

PIN - stop

1шт.

14

K305088

STOP

STRAP - spring

1шт.

15

K650657

BOLT

- M10 x 14 mm

1шт.

16

K651849

WASHER

- lock

1шт.

17

K948166

SPRING

PLATE - strap

1шт.

18

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

280136

NUT,3/8"-16, G8

2шт.

20

K651849

WASHER

- lock

2шт.

21

K601355

BOLT

- 5/8 UNC x 1-7/8 inch

6шт.

22

K19485

WASHER

- lock, 5/8 inch

6шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

6шт.

24

K305064

CHANNEL

BAR - tie

1шт.

25

K305087

BUSHING

- plastic

4шт.

26

K691960

SCREW

BOLT - 1/2 UNC x 1-5/8 inch

6шт.

27

K626686

WASHER

- 1/2 inch (13 mm)

6шт.

28

K607304

NUT

self-locking, 1/2 inch UNC

2шт.

29

K305065

GUARD

- hood nose

1шт.

30

K169111

WEIGHT - front end, 100 lbs (45 kg) (Maximum of 7 used) (North America only)

1шт.

A177102

KIT

HARDWARE KIT - weight attaching (North America only), Includes: Ref. 33 - 37

1шт.

33

A145919

CLAMP

- weight bar

1шт.

34

A169139

SQUARE BOLT

- weight clamp

1шт.

35

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32") (14 x 27 x 2 mm)

1шт.

36

K192-23

WASHER - lock, 1/2 inch

1шт.

37

K129-105

NUT - hex, 1/2 inch NC

1шт.

Выбрано товаров: 42
