Запчасти Case IH 1194 (9-248) - REAR AXLE HOUSING AND COVERS (09) - CHASSIS/ATTACHMENTS

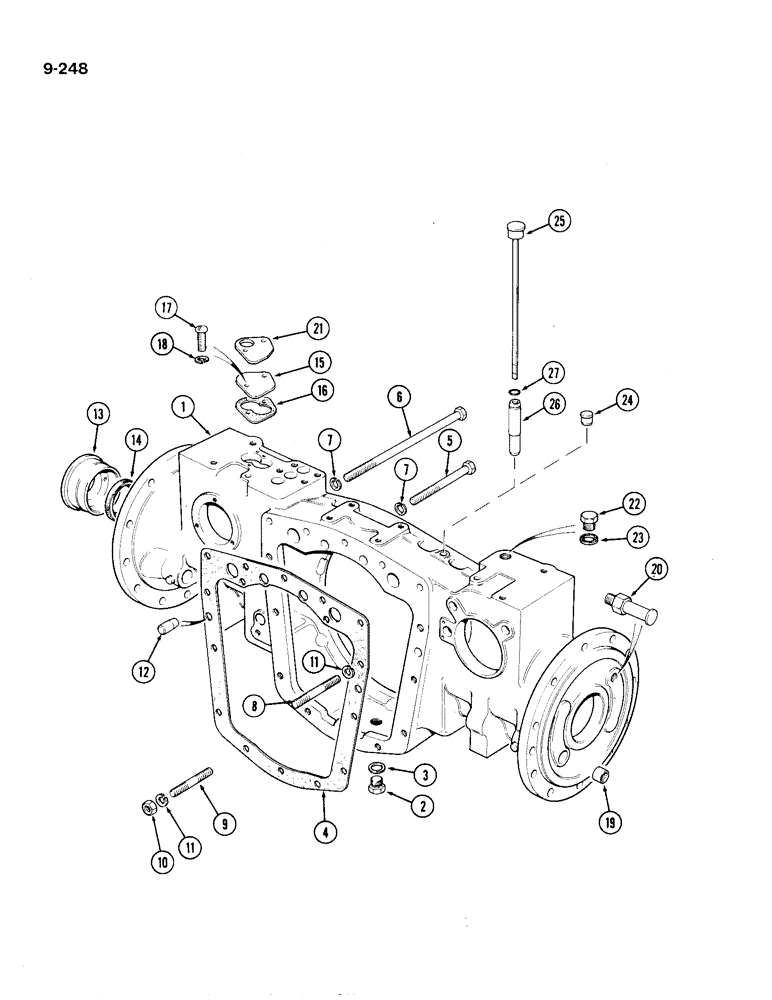

Схема запчастей Case IH 1194 - (9-248) - REAR AXLE HOUSING AND COVERS (09) - CHASSIS/ATTACHMENTS
7
11
24
13
9
10
21
11
27
12
19
22
17
26
3
18
1
20
25
23
8
2
15
7
5
16
6
14
4

Артикул

Название

Примечание

Количество

1

K956072

HOUSING

1шт.

2

K623851

PLUG

- drain, 3/4 inch BSP

1шт.

3

K627474

WASHER

- sealing, 1-1/16 inch (27 mm)

1шт.

4

K926122

GASKET,0.25mm Thk

1шт.

5

K600620

BOLT

- 7/16 UNC x 5-1/2 inch

4шт.

6

K600669

BOLT

- 7/16 UNC x 7-3/4 inch

1шт.

7

K19483

SPRING WASHER

- lock, 7/16 inch

5шт.

8

K608323

STUD

- 7/16 UNC x 3-5/8 inch

2шт.

9

K608318

STUD

- 7/16 UNC x 2 inch

7шт.

10

280717

NUT,7/16"-14, G5

9шт.

11

K19483

SPRING WASHER

- lock, 7/16 inch

9шт.

12

K622904

PIN

DOWEL - 5/8 x 1-9/16 inch

2шт.

13

K201340

SEAL

HOUSING - oil seals

2шт.

14

K623482

SEAL

- oil, 55 x 80 x 10 mm

4шт.

15

K929463

COVER

PLATE - axle housing cover (without dump valve)

1шт.

16

K929464

GASKET

- cover plate

1шт.

17

K602803

BOLT

SCREW - 5/16 UNC x 3/4 inch

2шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

19

K30835

BUSHING

- brake camshaft

4шт.

20

K956736

PIN

- brake shoe

2шт.

21

K929465

COVER

PLATE - axle housing (with dump valve)

1шт.

22

K619528

PLUG

- 7/8 inch UNF

1шт.

23

K30085

GASKET

WASHER - sealing, 7/8 inch (22 mm)

1шт.

24

K628102

PLUG

- axle housing (without cab)

1шт.

25

K203608

DIPSTICK

- transmission oil

1шт.

26

K203546

DIPSTICK

SLEEVE - dipstick

1шт.

27

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- dipstick

1шт.

Выбрано товаров: 27
