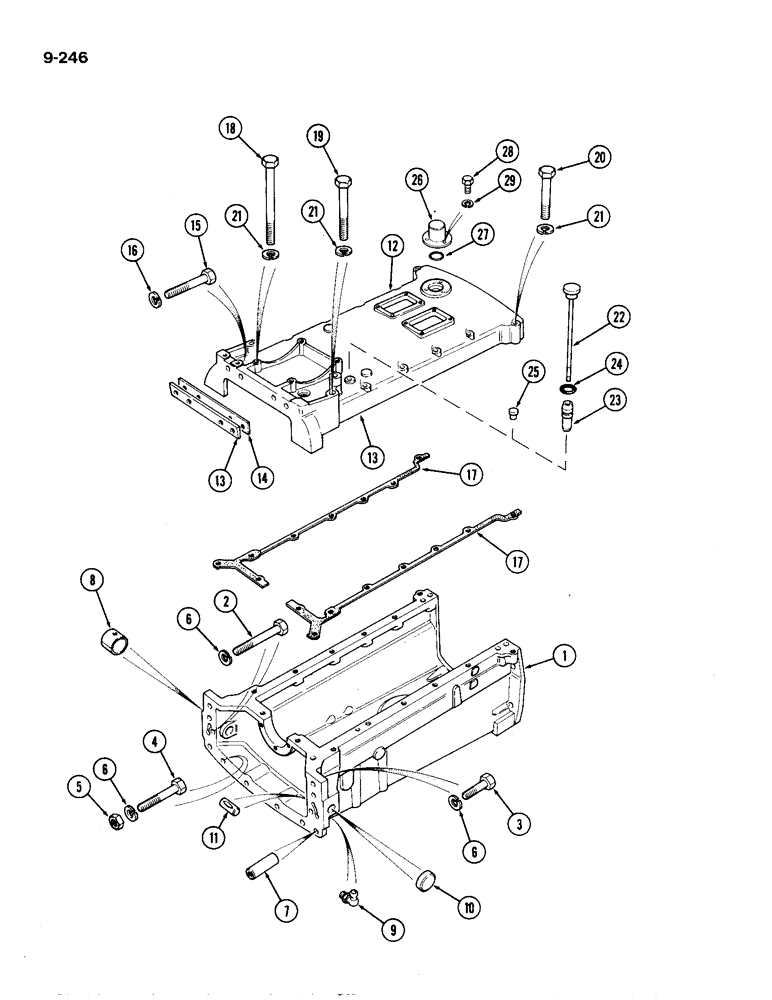

Запчасти Case IH 1194 (9-246) - MAIN FRAME REAR AND GEARBOX COVER (09) - CHASSIS/ATTACHMENTS

1

K956019

FRAME

MAIN FRAME - rear

1шт.

2

K600615

BOLT

- 7/16 UNC x 3-1/4 inch

4шт.

3

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2 inch

2шт.

4

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

4шт.

5

280717

NUT,7/16"-14, G5

4шт.

6

K19483

SPRING WASHER

- lock, 7/16 inch

10шт.

7

K621852

PIN

DOWEL - 5/8 x 1-5/8 inch

2шт.

8

K628753

BUSHING

- clutch cross shaft

3шт.

9

K22164

FITTING

- grease

1шт.

10

K623790

CORE

PLUG - core, 1-1/8 inch (28 mm) diameter (continous clutch tractors)

2шт.

11

K623729

PIN

PLUG - 3/16 x 3/4 inch (continous clutch tractors)

1шт.

12

K956144

COVER

- gearbox

1шт.

13

K200259

WEDGE

- gearbox cover to clutch housing

1шт.

14

K200718

SHIM

- gearbox cover to clutch housing

1шт.

15

K600610

BOLT

- 7/16 UNC x 2-1/2 inch

4шт.

16

K19483

SPRING WASHER

- lock, 7/16 inch

4шт.

17

K205303

GASKET

2шт.

18

K600820

BOLT

- 1/2 UNC x 4-1/2 inch

2шт.

19

K600824

BOLT

- 1/2 UNC x 5-1/2 inch

2шт.

20

K600820

BOLT

- 1/2 UNC x 3-1/2 inch

10шт.

21

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

14шт.

22

K956099

DIPSTICK

- transmission oil

1шт.

23

K942348

SLEEVE

- dipstick

1шт.

24

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- 7/16 inch (11 mm) internal diameter

1шт.

25

K628102

PLUG

- gearbox cover (without cab)

1шт.

26

K940284

COVER

- starter safety switch

1шт.

27

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

- cover

1шт.

28

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - 1/4 UNC x 1/2 inch

3шт.

29

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

3шт.
