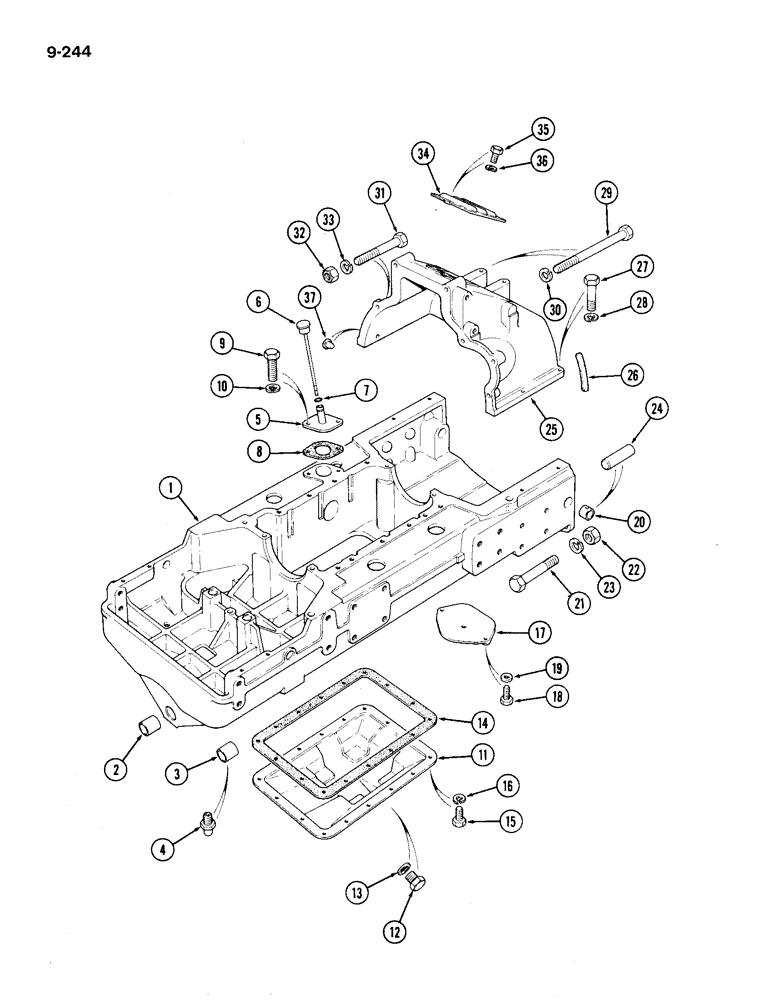

Запчасти Case IH 1194 (9-244) - MAIN FRAME FRONT AND CLUTCH HOUSING (09) - CHASSIS/ATTACHMENTS

1

K956015

FRAME

MAIN FRAME - front

1шт.

2

K621427

BUSHING

- front, trunnion pin bearings

1шт.

3

K621301

BUSHING

- rear, trunnion pin bearings

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

5

K205678

DIPSTICK

SLEEVE - dipstick

1шт.

6

K206286

DIPSTICK

- engine oil

1шт.

7

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

1шт.

8

K902043

SEAL

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

11

K907339

COVER

SUMP - engine lubrication

1шт.

12

K623849

PLUG

- drain, 1/2 inch BSP

1шт.

13

K15143

WASHER

- sealing, 7/8 inch (22 mm)

1шт.

14

K907585

GASKET

- sump

1шт.

15

K602803

BOLT

- 5/16 UNC x 3/4 inch

16шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

16шт.

17

K956333

COVER

- clutch pit

1шт.

18

K602733

SCREW

BOLT - 1/4 UNC x 5/8 inch

2шт.

19

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

20

K628753

BUSHING

- clutch cross shaft

3шт.

21

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

4шт.

22

280717

NUT,7/16"-14, G5

4шт.

23

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

24

K621852

PIN

DOWEL 0 5/8 x 1-5/8 inch

2шт.

25

K956048

CLUTCH

HOUSING - clutch

1шт.

26

K200263

SEAL

STRIP - sealing, clutch housing

2шт.

27

K600404

BOLT

- 3/8 UNC x 1-1/2 inch

4шт.

28

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

29

K600421

BOLT

- 3/8 UNC x 4-1/4 inch

2шт.

30

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

31

K600414

BOLT

- 3/8 UNC x 2-3/4 inch

1шт.

32

280136

NUT,3/8"-16, G8

1шт.

33

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

34

K904246

COVER

- clutch housing

1шт.

35

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2 inch

2шт.

36

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

37

K628087

PLUG

- plastic, 3/8 inch, timing peg aperture

1шт.
