(9-242) - PICK-UP HITCH, TRACTORS WITH CAB

Запчасти Case IH 1194 (9-242) - PICK-UP HITCH, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

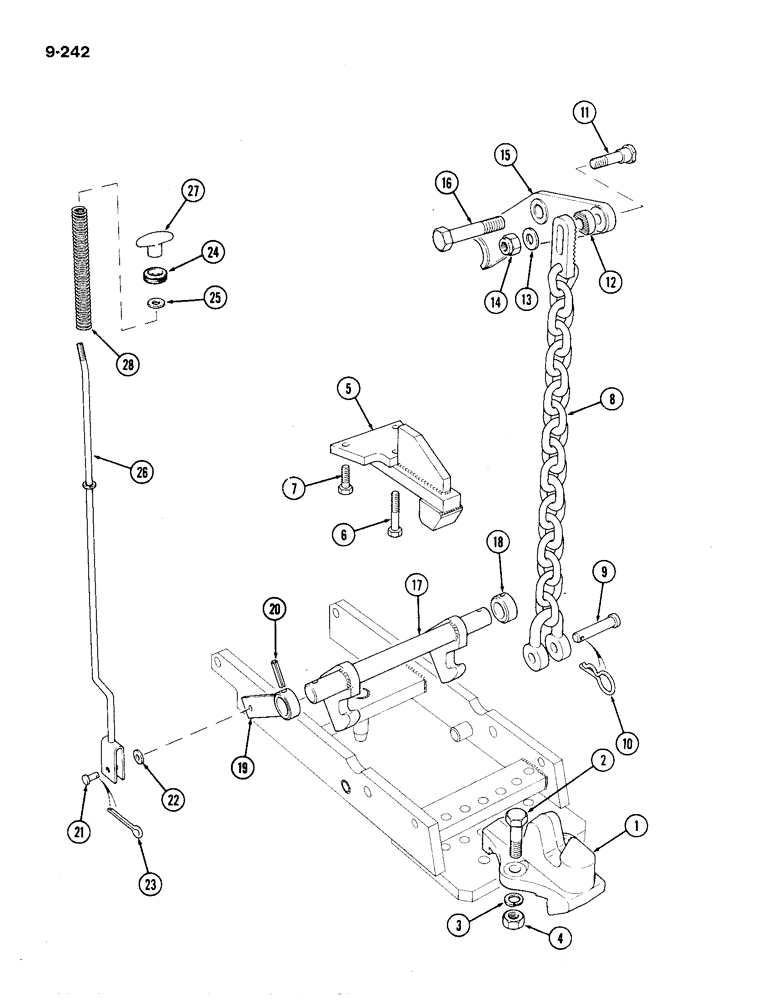

Схема запчастей Case IH 1194 - (9-242) - PICK-UP HITCH, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
22
27
9
3
1
15
26
18
2
25
11
4
16
23
12
14
8
13
5
28
6
17
21
19
10
24
7
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

UK4627

HITCH ASSY

PICK-UP HITCH UNIT, Includes: Ref. 1 - 28

1шт.

1

K940590

HOOK

- towing

1шт.

2

K601208

BOLT

- 5/8 UNC x 2-1/2 inch

2шт.

3

K19475

WASHER

- 5/8 inch (16 mm)

2шт.

4

K607006

NUT

- 5/8 inch UNC

2шт.

5

K940093

BRACKET

JAW

1шт.

6

K600410

BOLT

- 3/8 UNC x 2-1/4 inch

1шт.

7

K600404

BOLT

- 3/8 UNC x 1-1/2 inch

2шт.

8

K940592

CHAIN (CE)

CHAIN AND LINK

2шт.

9

K943029

PIN

- clevis, 1/2 x 2-1/8 inch

2шт.

10

K38632

SPRING

CLIP - spring

2шт.

11

K942612

PIN

- pivot, 5/8 inch UNC

2шт.

12

K942611

WASHER

- serrated

2шт.

13

K19475

WASHER

- 5/8 inch (16 mm)

2шт.

14

K607331

NUT

- lock, 5/8 inch UNC

2шт.

15

K940591

ARM

- lift

2шт.

16

K601415

BOLT

- 3/4 UNC x 4-1/4 inch

2шт.

17

K940094

LATCH

1шт.

18

K940097

LEVER

COLLAR

1шт.

19

K940097

LEVER

1шт.

20

K690732

SPRING

PIN - spring, 3/16 x 1-3/4 inch

2шт.

21

K955947

PIN

- clevis, 3/8 x 1 inch

1шт.

22

K19472

WASHER

- 3/8 inch (10 mm)

1шт.

23

K19528

PIN

- cotter, 3/32 x 3/4 inch

1шт.

24

K627729

GROMMET

- 7/8 inch (22 mm)

1шт.

25

K626884

WASHER

- 15/32 inch, special

1шт.

26

K203449

ROD

- release

1шт.

27

K955948

KNOB

1шт.

28

K625251

SPRING

- return

1шт.
