Запчасти Case IH 1194 (9-238) - UNIVERSAL DRAWBAR (09) - CHASSIS/ATTACHMENTS

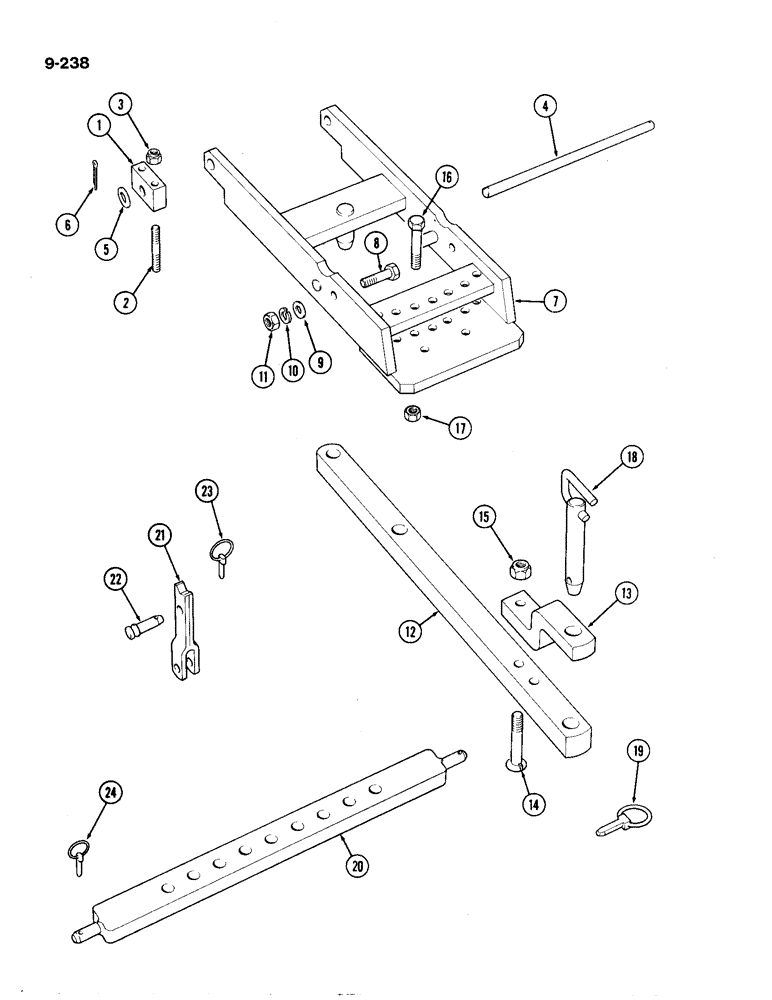

Схема запчастей Case IH 1194 - (9-238) - UNIVERSAL DRAWBAR (09) - CHASSIS/ATTACHMENTS
7
5
22
17
24
14
2
16
6
11
1
9
13
8
12
3
19
23
4
21
10
18
20
15

Артикул

Название

Примечание

Количество

UK1693

FRAME UNIT - support, Includes: Ref. 1 - 11

1шт.

1

K912087

HINGE

BRACKET - hinge

2шт.

2

K608508

STUD

- 1/2 UNC x 3-7/8 inch

4шт.

3

K607304

NUT

- self-locking, 1/2 inch UNC

4шт.

4

K943056

HINGE

BAR - hinge

1шт.

5

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

6

K26230

PIN, SPLIT (COTTER)

PIN - split, 3/16 x 1-3/8 inch

2шт.

7

K946192

SUPPORT

- drawbar

1шт.

8

K601405

BOLT

- 3/4 UNC x 2-3/8 inch

2шт.

9

K19476

WASHER

- lock, 3/4 inch

2шт.

10

K19486

WASHER, LOCK

WASHER - lock, 3/4 inch

2шт.

11

K607007

NUT

- 3/4 inch UNC

2шт.

UK1672

UNIVERSAL JOINT

DRAWBAR UNIT, Includes: Ref. 12 - 19

1шт.

12

K946154

DRAWBAR, SWINGING

DRAWBAR

1шт.

13

K916516

CLEVIS

BRACKET - clevis

1шт.

14

K601664

BOLT

- 5/8 UNC x 3-1/4 inch, special

2шт.

15

K607463

NUT

- lock, 5/8 inch UNC

2шт.

16

K601332

BOLT

- 5/8 UNC x 4 inch

2шт.

17

K607306

NUT

- lock, 5/8 inch UNC

2шт.

18

K916566

PIN

- hitch

1шт.

19

K210318

LINCH PIN

AND RING (Replaces K920359)

2шт.

UK1600

LINKAGE

DRAWBAR UNIT - linkage, Includes: Ref. 20 - 24

1шт.

20

K902280

LINKAGE

DRAWBAR - linkage

1шт.

21

NLS

NO LONGER SERVICED

EXTENSION - lift rod

2шт.

22

K903399

HITCH PIN

PIN - link, 5/16 x 2-3/16 inch

2шт.

23

K210316

LINCH PIN

AND RING (Replaces K66408)

2шт.

24

K210318

LINCH PIN

AND RING (Replaces K920359)

2шт.

Выбрано товаров: 27
