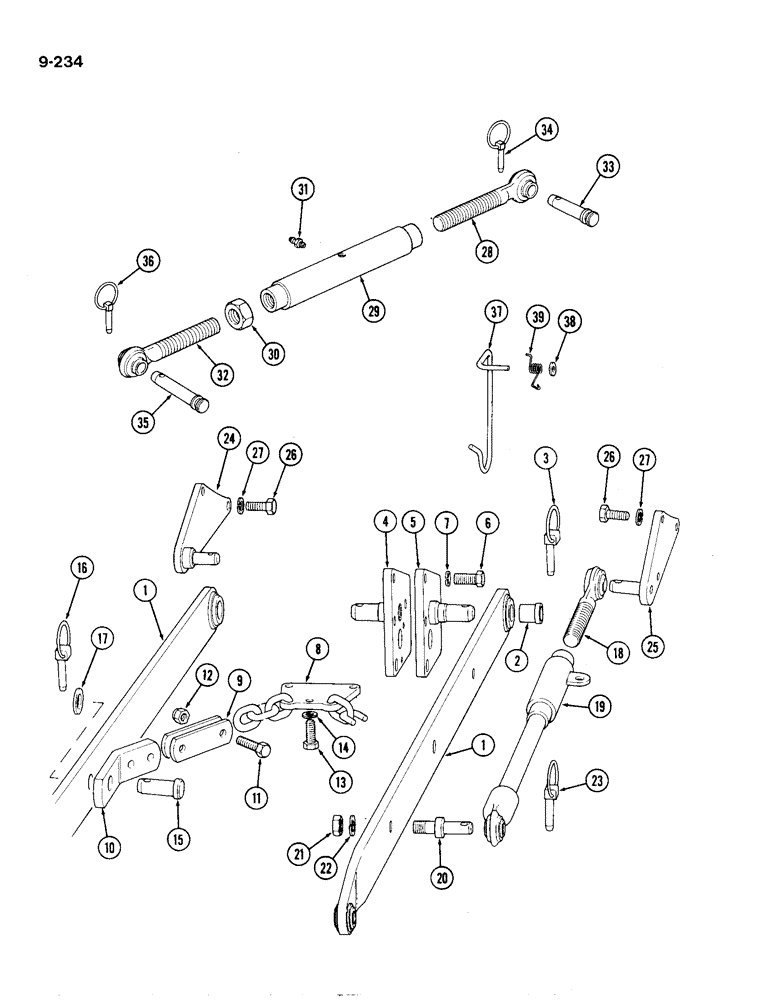

Запчасти Case IH 1194 (9-234) - LINKS AND STABILIZER BARS, DUAL CATEGORY LINKAGE (09) - CHASSIS/ATTACHMENTS

1

K943631

LINK

- lower, 30-1/2 inch (775 mm)

2шт.

2

K922071

BUSHING

- link

2шт.

3

K920359

PIN

LINCH PIN AND RING

4шт.

4

K943627

BRACKET

- hitch, left-hand

1шт.

5

K943628

HITCH ASSY

BRACKET - hitch, right-hand

1шт.

6

K603108

SCREW

BOLT - 1/2 inch

6шт.

7

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

8

K201225

CHAIN (AG)

CHAIN ASSEMBLY - check, Includes: Ref. 9 - 12

1шт.

9

K943855

PLATE

- adjusting

4шт.

10

K201227

PLATE

2шт.

11

K602908

SCREW

BOLT - 3/8 UNC x 1-1/2 inch

4шт.

12

K607460

NUT

- self-locking, 3/8 inch UNC

4шт.

13

K603905

BOLT - 3/8 UNC x 1-1/8 inch

3шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

15

K946108

HEADED PIN

PIN - check chain

2шт.

16

K210317

PIN

LINCH PIN AND RING (Replaces K915678)

2шт.

17

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

UK1581

STABILIZER

LINKAGE STABILIZER UNIT, Includes: Ref. 18 - 27 and stabilizer bar assy.

1шт.

K955899

STABILIZER

BAR ASSEMBLY - telescopic, Includes: Ref. 18 & 19

2шт.

18

K914993

END

HOUSING - ball, front

1шт.

19

K955900

TUBE,8.125" L

HOUSING - tube and ball, rear

1шт.

20

K964993

LINK

PIN - lower link

2шт.

21

K607006

NUT

- 5/8 inch UNC

2шт.

22

K19485

WASHER

- lock, 5/8 inch

2шт.

23

K210318

LINCH PIN

AND RING (Replaces K920359)

4шт.

24

K948525

PLATE

BRACKET - left-hand

1шт.

25

K948526

PLATE

BRACKET - right-hand

1шт.

26

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

6шт.

27

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

K942056

LINK

ASSEMBLY - top, Includes: Ref. 28 - 32

1шт.

28

K920796

SCREW

AND HOUSING - 7-7/8 inch (200 mm) tractor end

1шт.

29

K920800

TURNBUCKLE

- 1 inch UNC

1шт.

30

K19448

LOCK NUT

- lock, 1 inch UNC

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

32

K942057

SCREW

AND HOUSING - 9 inch (229 mm)

1шт.

33

K912936

PIN

- link, sensing unit

1шт.

34

K210316

LINCH PIN

AND RING (Replaces K66408)

1шт.

35

K65690

HITCH PIN

PIN - link, Category 2

1шт.

35

K903981

HITCH PIN

PIN - link, Category 1

1шт.

36

K210318

LINCH PIN

AND RING (Replaces K920359)

1шт.

37

K303358

LATCH

ANCHOR - top link (with cab)

1шт.

38

K692198

WASHER

CLIP - anchor retaining

1шт.

39

K658401

SPRING

- anchor

1шт.
